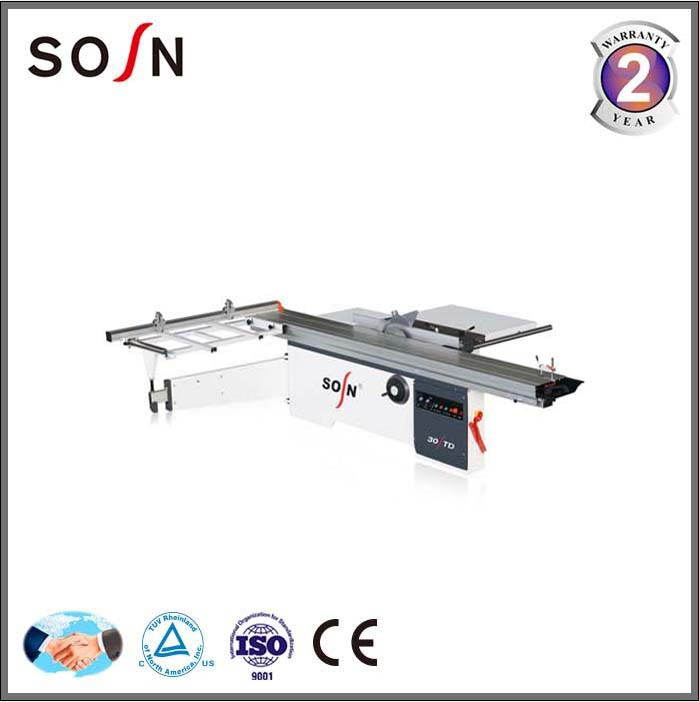

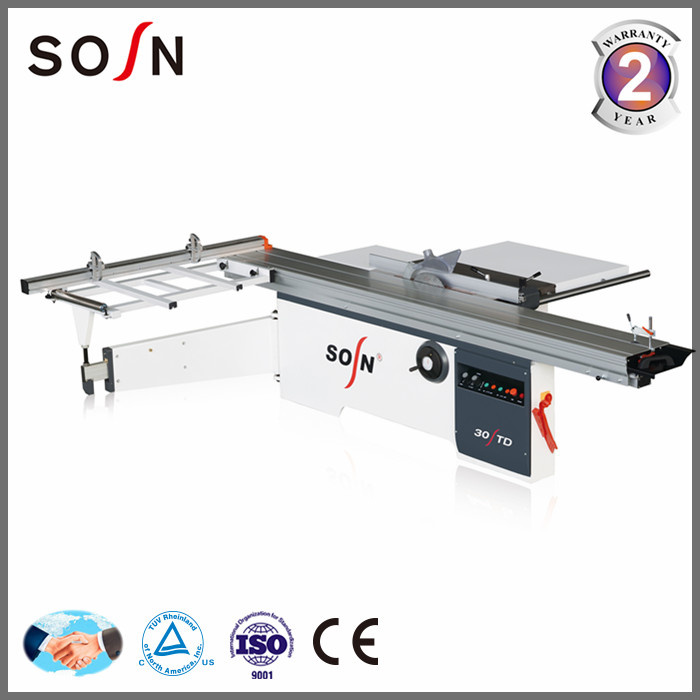

Heavy Duty Furniture Making Machine Sliding Table Panel Saw

Heavy Duty Furniture Making Machine Sliding Table Panel Saw
Price: US $ 1000-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: MJ6132TD
Model: Mj6132td
Sliding Table Size: 3200*375mm
Gross Cut Capacity: 3200mm
Width Between Saw Blade&Rip Fence: 1250mm
Saw Blade Diameter: 300(250-400)mm
Height Of Cut (300mm): 90mm
Main Saw Spindle Speed: 4500/6000rpm
Main Spindle Diameter: 30mm
Tilting Saw Blade: 0-45& 90°
Motor Power: 5.5kw
Type: Table Panel Saw
Layout: Vertical
Controlling Mode: Artificial
Automatic Grade: Manual
Precision: High Precision
Certification: ISO

Product Description



Main parameters of precision panel saw machine MJ6132TD
Model(Manual control)MJ6132TD
Sliding table size3200*375mm
Gross cut capacity3200mm
Width between saw blade&rip fence1250mm
Saw blade diameter300(250-400)mm
Height of cut (300mm)90mm
main saw spindle Speed 4500/6000rpm
Main spindle diameter30mm
Tilting saw blade0-45& 90°
Motor Power5.5kw
Scoring saw blade dia 120mm
scoring saw blade speed 7000-8000rpm
Scoring saw diameter 20mm
Scoring motor1.1kw
Weight900kg
machine body Package size     2200*1150*1100
Sliding table Pack size (mm)3350*480*320



Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.


For saw spindle, every axis has been tested for perfect balance.

 thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.


Fine micro adjustment,stable and precision.




Should you have any need of the machine , please feel free to contact with me
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
