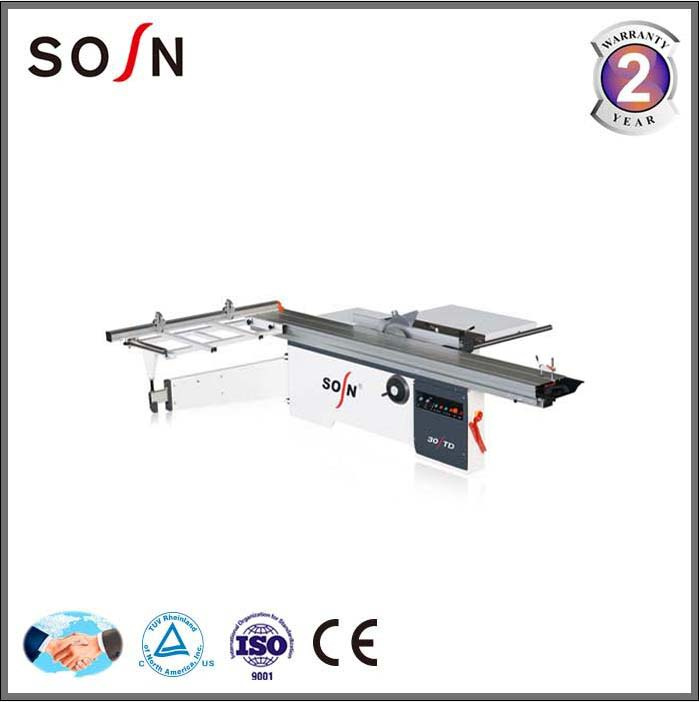

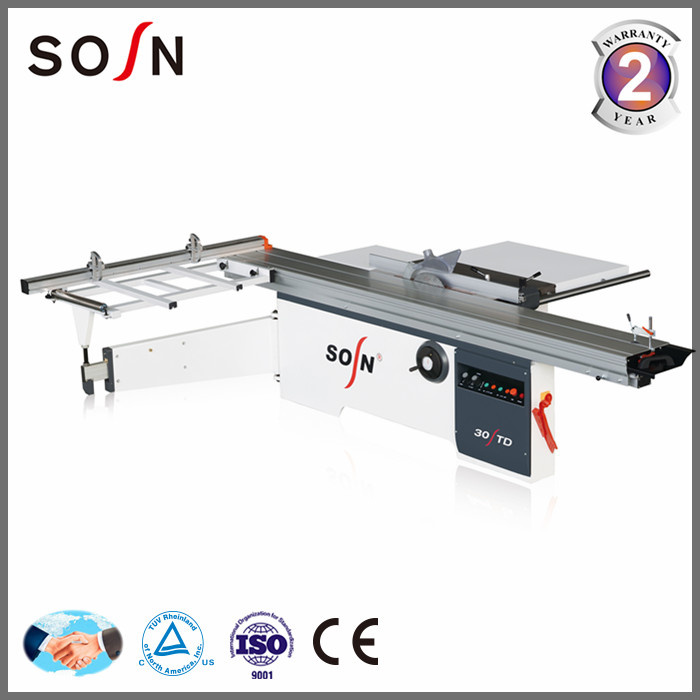

Heavy Duty High Precision Sliding Table Panel Saw (MJ6130TD)

Heavy Duty High Precision Sliding Table Panel Saw (MJ6130TD)
Price: US $ 1000-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: MJ6130TD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Mj6130d
Saw Type: Sliding Table Panel Saw
Brand: Sosn
Warranty: 2 Years
Weight: 700kg
Motor Power: 5.5+1.1 Kw
Application: Wood Saw
Voltage: 220V,380V
Dimension Of Sliding Table: 3000*375mm
Spindle Diameter: 30+20mm
Type: Table Panel Saw
Layout: Vertical
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO

Product Description




Main  technical  parameter  for  MJ6130TD
Dimension  of  sliding  table3000x375mm
Gross  cut  capacity 3000mm
Width  of  cut  between  saw  blade  and  rip  fence       1250mm
Saw  blade  diameter 300mm(250-300mm)
Height  of  cut  (300mm) 80mm
Speed  of  main  saw  spindle   4500/6000rpm
Main  spindle  diameter   30mm
Tilting  saw  blade 45°
Main  motor   5.5kw
Scoring  saw  blade  diameter 120mm
Speed  of  scoring  saw  blade 8000rpm
Scoring  saw  diameter 20mm
Scoring  motor 0.75kw
weight 950kg
Overall  dimension 3000x3150x900mm




Apply to processing all kings of density boards, shaving boards, wood-based panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

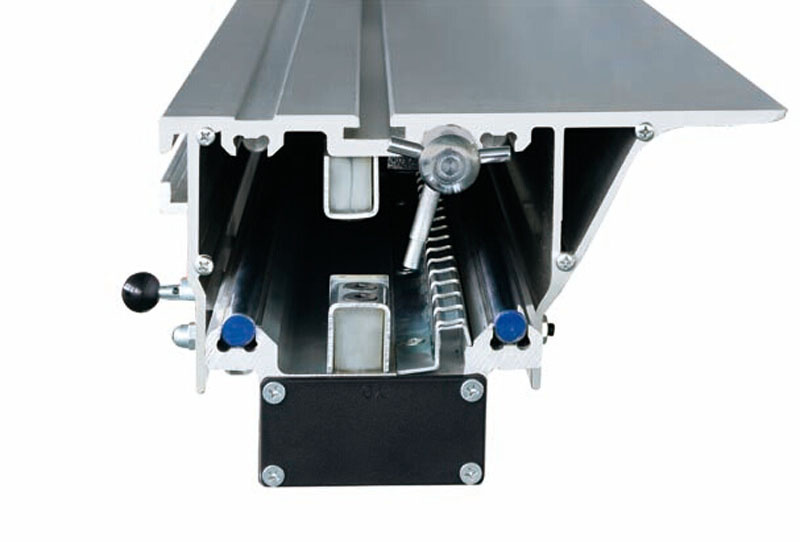

Movable table guide track is plating chromium steel bars structure, exact and durable.
Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
With oxidation treatment, movable table surface is beautiful and hardwearing.
Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.



Qingdao SOSN Machinery co., td as a domestic well-known machinery manufacturing enterprises, through the traditional, intelligence reform and timely to do a good job upgrading products, and maintain machinery and equipment manufacturers in the field of sustainable competitiveness, the company produced precision panel saw Edge machine and various other products, sold throughout the country and exported to Southeast Asia, Russia, more than 20 countries and regions.
Our company purpose: "credit first, customer supreme" to the quality and development. PLS contact with us tight now.



FAQ

List some questions below we think you may want to know, if you have more doubts, we are right here to help you.
1, What size of sliding table panel saw is right for me?
---Standard length of the saw is 3200mm, 3000mm, 2800mm.
Considering your own usage, you can know which size saw you need. Or we will recommend to you.
 2, After knowing the size, then which model is right for me?
---There are three main matters you need to consider, then we can know which model for you.
---Firstly, the cutting angle, do you need tiliting 0-45 degree(0 degree is just 90 degree), or fixed 90 degree?
If tilting, you prefer electric tilting or manual tilting?

3, After knowing the right model saw, then what's your price?
---Price depends on the components is imported or Made-In-China, usually we recommend imported world famous components, because once they are broken, you can buy in your side easily.
4, What's your warranty?
---In 24 months.
5, What's youe lead time?
---In 25 working days.
6, What's your delivery term?
---FOB Qingdao China usually
7, What's your payment term?
---30% T/T deposit, balance T/T payable before delivery after inspection.
8, What's  the HS code of sliding table panel saw?
---In China it is 8465910000.

If any question , please feel free to contact with us

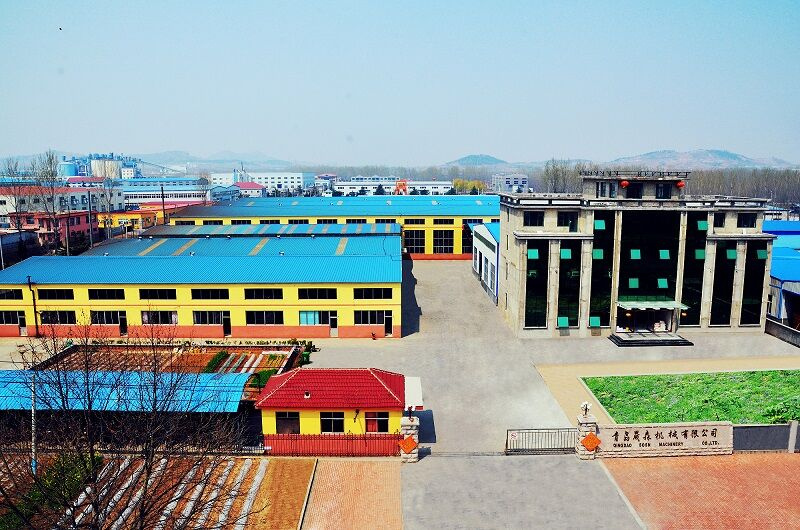

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
