Heavy Duty Pipe Clamps Galvanized Pipe Clamps

Name: Heavy Duty Pipe Clamps Galvanized Pipe Clamps
Brand: tool-buy.com
SKU: 744844375
Availability: InStock
Rating: 4.8 (79 reviews)

Price:	US $ 0.09/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	T/T

Contact Supplier

Ningbo Jin Mu Hardware Fittings Co., Ltd.

Showroom Product Company Profile

Prod Model:	001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inch:	3/4
Nut:	M8
Bandwidth:	20mm
Thickness:	1.2mm
Material:	Metal
Usage:	Glass Clamp
Standard:	Standard

Product Description

Pipe Size (Inch)	Clamp Size (Diameter)	Material Plate BxS(mm)	Connection	Locking Screw	Rubber(mm)
3/8	16-20	20x1.2	M8orM8/M10	M5x15	20x3.5
1/2	21-25	20x1.2	M8orM8/M10	M5x15	20x3.5
3/4	27-32	20x1.2	M8orM8/M10	M5x15	20x3.5
1	33-36	20x1.2	M8orM8/M10	M5x15	20x3.5
1 1/4	40-43	20x1.2	M8orM8/M10	M6x20	20x3.5
1 1/2	47-51	20x1.2	M8orM8/M10	M6x20	20x3.5
2	59-63	20x1.2	M8orM8/M10	M6x20	20x3.5
2 1/2	72-76	20x1.5	M10orM8/10	M6x25	20x4.5
3	87-91	20x1.5	M10orM8/10	M6x25	20x4.5
4	110-115	20x1.8	M10orM8/10	M6x25	20x4.5
4 1/2	123-126	20x1.8	M10orM8/10	M6x30	20x4.5
6	159-164	20x1.8	M10orM8/10	M6x30	20x4.5

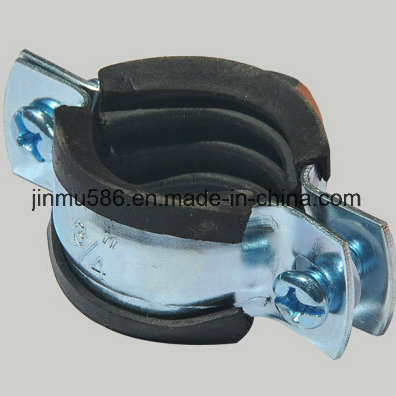

Pipe clamp:
Specifications: Size 3/4", W X T: 20mmX1.0mm. Clamping range: 27~32mm
Connection nut: M8 or M10 or M8/M10, Locking Screw: M5x15. Materials: Galvanized iron
With or without rubber. The specials sizes we can do it as per yours requirement.
Applications:
Being Fasteners for Pipe lines such as heating, sanitary, and waste water pipes:
To walls, ceilings and floors.
Electro galvanized for corrosion resistance(plating thickness 8-10micron)
