Prod Model: |
001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inch: |
1 |
Material: |
Metal |
Usage: |
Pipe Clamp |
Standard: |
Standard |
Product Description
Pipe Size (Inch) | Clamp Size (Diameter) | Material Plate BxS(mm) | Connection | Locking Screw | Rubber(mm) |
3/8 | 16-20 | 20x1.2 | M8orM8/M10 | M5x15 | 20x3.5 |
1/2 | 21-25 | 20x1.2 | M8orM8/M10 | M5x15 | 20x3.5 |
3/4 | 27-32 | 20x1.2 | M8orM8/M10 | M5x15 | 20x3.5 |
1 | 33-36 | 20x1.2 | M8orM8/M10 | M5x15 | 20x3.5 |
1 1/4 | 40-43 | 20x1.2 | M8orM8/M10 | M6x20 | 20x3.5 |
1 1/2 | 47-51 | 20x1.2 | M8orM8/M10 | M6x20 | 20x3.5 |
2 | 59-63 | 20x1.2 | M8orM8/M10 | M6x20 | 20x3.5 |
2 1/2 | 72-76 | 20x1.5 | M10orM8/10 | M6x25 | 20x4.5 |
3 | 87-91 | 20x1.5 | M10orM8/10 | M6x25 | 20x4.5 |
4 | 110-115 | 20x1.8 | M10orM8/10 | M6x25 | 20x4.5 |
4 1/2 | 123-126 | 20x1.8 | M10orM8/10 | M6x30 | 20x4.5 |
6 | 159-164 | 20x1.8 | M10orM8/10 | M6x30 | 20x4.5 |

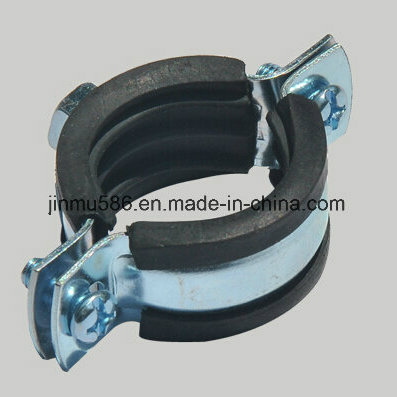

Pipe clamp:
Specifications: Size 1", W X T: 20mmX1.2mm. Clamping range: 33~36mm
Connection nut: M8 or M10 or M8/M10, Locking Screw: M5x15. Materials: Galvanized iron
With or without rubber. The specials sizes we can do it as per yours requirement.
Applications:
Being Fasteners for Pipe lines such as heating, sanitary, and waste water pipes:
To walls, ceilings and floors.
Electro galvanized for corrosion resistance(plating thickness 8-10micron)
