| Prod Model: |
KET-XLCT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Hexagon Cassette Hydraulic Torque Wrenches |
| Working Pressure: |
700bar |
| Max. Torque: |
232-4188n.M |
| Min. Torque Range: |
2328-418825nm |
| Plus Size: |
30-155mm |
| Stock: |
Yes |
| Payment: |
T/T |
| OEM: |
Yes |
| Bolt Size: |
16-36mm to 76-115mm |
| Nut Size: |
24-55 to 110-165mm |
| Type: |
Hex Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
European Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Ordinary |
| Brand: |
Kiet |
Product Description

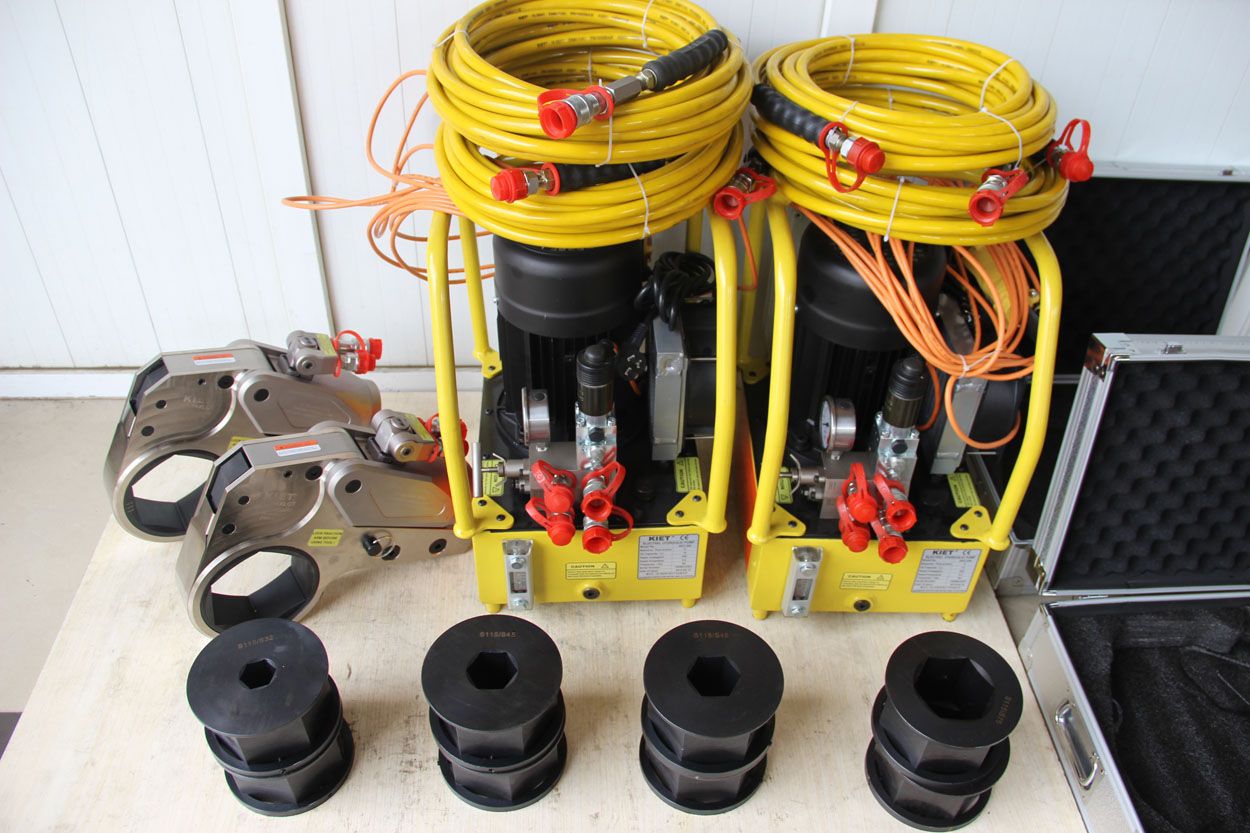

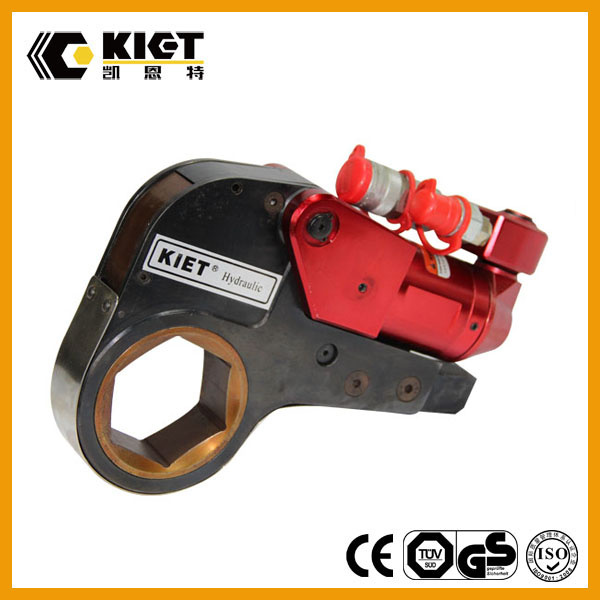

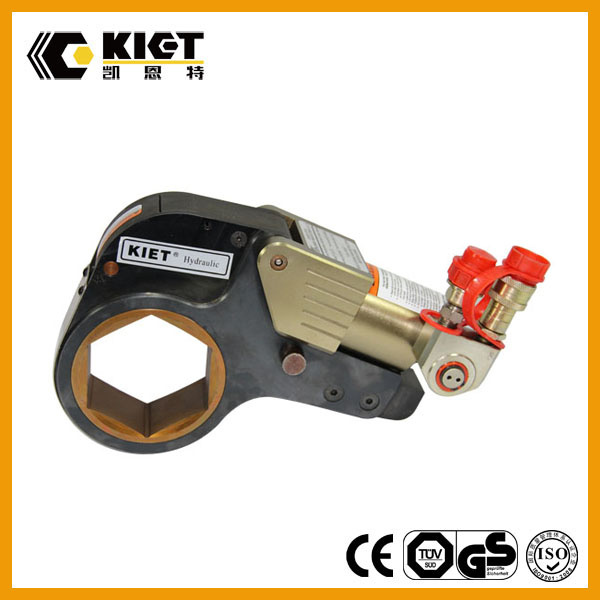

Hexagon Cassette Hydraulic Torque Wrenches
Features:1. The innovative wrench structure without pin joint matches with rapid unloading hydraulic piston and automatic crank
2. The 360º×180º rotating hose coupling has no limitation in used space, convenient to operate.
3. The hydraulic piston and power head have small shape, with light weight, compact structure and small operating radius.
4. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
5. The reactive force is on one straight line, which can decrease the inner torque abrasion
6. The constant torque output provides the high precision for wrench in the whole working process.
7. The maintenance is simple and does not need the special tools.
8. The torque wrench surface has a good corrosion resistant performance after the nickel plating treatment.
9. All the hollow hydraulic wrenches have copper lining to ensure that the ratchet wheel does not contact with the wall, which can extend the working life.
10. You can select the various kinds of reduction sleeves to extend the application range.Parameter:| Model | KET-2XLCT | KET-4XLCT | KET-8XLCT | KET-14XLCT | KET-30XLCT |
| Torque Nm | 232~2328 | 585~5858 | 1094~ 10941 | 1852~ 18521 | 4188~ 41882 |
| Bolt diameterM(mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| ScrewS(mm) | 24-55 | 36~65 | 46~95 | 50~110 | 110~165 |
| Rotary head Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 30XLCT |
| Working head model | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 30XLCTA- |
| Weight(kg) | 2.4 | 5.0 | 9.3 | 16.9 | 30.9 |
| L(mm) | 196.4 | 245 | 300 | 361 | 430 |
| H1(mm) | 125.9 | 177 | 207 | 239 | 303 |
| H2(mm) | 102.3 | 135.7 | 170 | 203 | 272 |
| W1(mm) | 32 | 42 | 53 | 64 | 85 |
| W2(mm) | 51 | 66 | 83 | 99 | 131 |

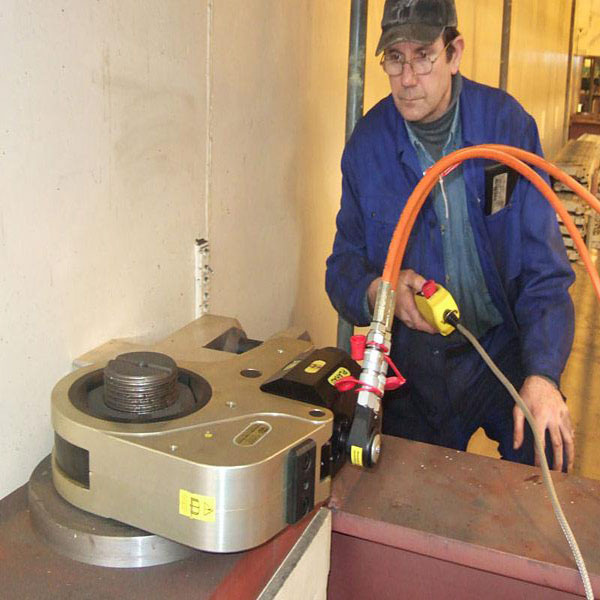

Application
Company Introduction
Kiet is a professional manufacturing in hydraulic tools and products, we have been in the industry for more than 20 years. Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand Kiet, and our factory has been approved by CE, ISO9001: 2008 consecutively. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.
Our main product category includes:
· Hydraulic cylinders and jacks
· Hydraulic bolting tools such as hydraulic torque wrench
· Hydraulic bolt tensioners, nut splitters.
FAQ
Q1: How can contact sales?
A1: Please call: 0086 18052610078 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: Can I have Kiet products catalog and price list?
A3: Please visit our English website: www.chinakiet.com/en to download our E-catalog, and send us an email for price list
Q4: How long does it take to get the product If I place an order?
A4: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.
Q5: How to make payment?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.
Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
Why Choose KIET ?
Quality --- Kiet has been in the industry for than 20 years. We have been trusted by domestic mega stated-state owned companies, as well as international distributors and renowned brands. We put quality as lifeline. We never manufacture or sale defected product, or lowering our price at the cost of products quality.
Service --- KIET promised to respond to customers products quality or service in 24 hours reported, and solutions shall be provided in 48 hours.
Contact Us:
Sales Manager: Mr. Aaron
Tel: 0086-18052610078
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
