Hfdx-4 Hydraulic Control Wireline Core Drilling Rig Machine
| Price: |
US $ 145000-200000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
HFCR-8 |
| Power: |
132kw (180HP) |
| Hold Diameter: |
121 mm(4.76 Inch) |
| Max. Torque: |
3800 N .M |
| Ax. Lifting Capacity Of Spindle: |
150 Kn(33720 Lbf) |
| Max. Feeding Powermax. Feeding Power: |
60 Kn(13480 Lbf) |
| Hoisting Force (Single Wire): |
57kn(12814 Lbf) |
| Steel Wire Diameter: |
18 mm(0.71 Inch) |
Product Description

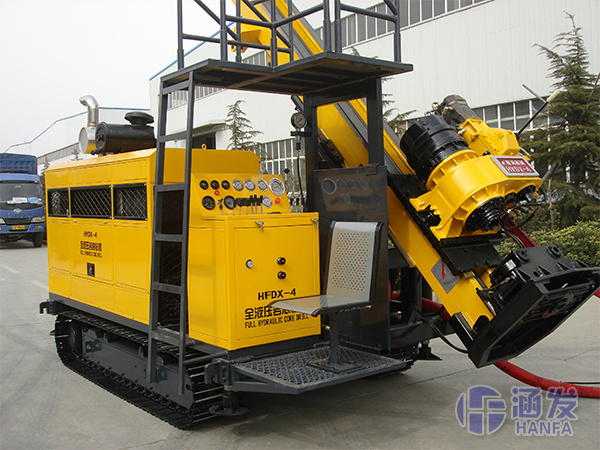

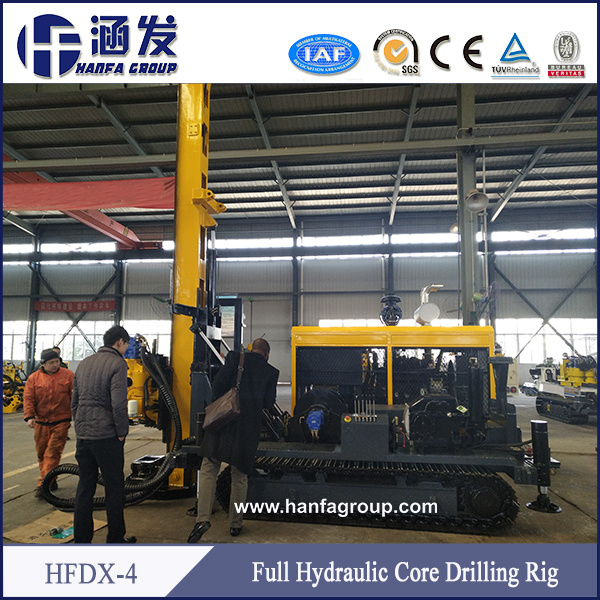

HFDX-4 hydraulic control wireline core drilling rig machine
The leading core drill rigs in the developed countries are full hydraulic operated type, which adopt the technology of wire-drawing core with diamond tip, this type of drill rig is also the main developing trend in the field of drill rig technology and related equipment, under the international and domestic trend, our factry has developed the HFDX-4 Full Hydraulic Operated Core Drill Rig, this type of drill rig can take the place of imported products and be applied in the fields of geology, metallurgy, coal mines, petroleum, natural gas and underground water exploration.

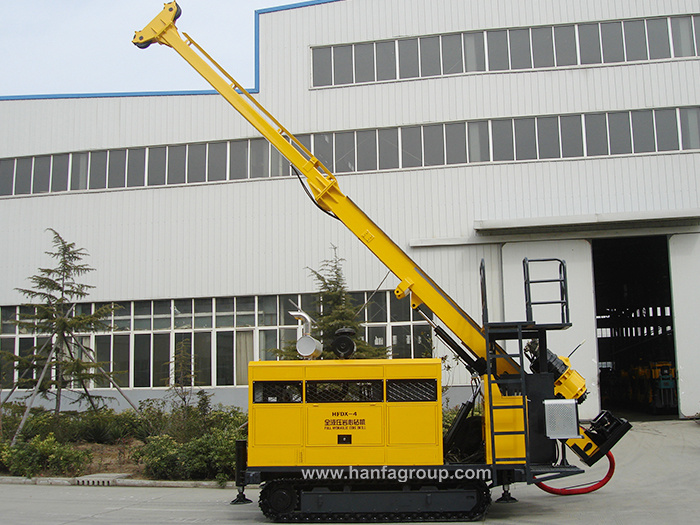

Crawler-type layout, the feeding and lifting of rotator are driven by a series motor with gear and chain with a long stroke, 3.5m stroke. The rotation of spindle is driven by a single engine, it has four mechanical shifts. And it speed could be adjusted by hydraulic pressure with stepless speed change. The mast has the funcion of sliding and touching ground, the spindle lifted and lowered with oil cylinder, it could be folded for transporteing and storing. The spindle has a big diameter hole and high-precision structure
Technical Data | Diesel Engine | Model | Cummins engine, 6BTA5.9-C180 |
| Power | 132Kw (177HP) |
| Speed | 2200rpm |
| Drilling Capacity | BQ | 1050m |
| NQ | 700m |
| HQ | 500m |
| PQ | 300m |
| Rotator Capacity | RPM | Four Shifts/ Stepless Change 0-1100 RPM |
| Max. Torque | 3800 N· m |
| Hold Diameter | 121 mm |
| Max. Lifting capacity of Spindle | 150 kN |
| Max. Feeding Power | 60 kN |
| Capacity of Main Hoist | Hoisting force (single wire) | 57kN |
| Steel Wire Diameter | 18 mm |
| Steel Wire Length | 50 m |
| Capacity of Steel Wire Hoist | Hoisting Force (single wire) | 1200 Kg (bare drum) |
| Steel Wire Diameter | 6 mm |
| Steel Wire Length | 1000 m |
| Mast | Mast Height | 9.6 m |
| Mast Adjusting Angle | 0° 90° |
| Drilling Angle | 45° 90° |
| Feeding Stroke | 3500 mm |
| Slippage Stroke | 600 mm |
| Other | Weight (platform type) | 5700 Kg |
| Working Dimensions (L× W× H) | 5100× 2200× 2450mm(200× 86.6× 96.5 inch)
(Main equipment) |
| Transport Dimensions (L× W× H) | 2430× 1540× 1450 mm(95.7× 60.6× 57.1 inch)
(Pump series) |
| Mud Pump | Model | BW150 |
| Foot Clamp | Clamping Scope | 55.5-110 mm
through hole 154mm |

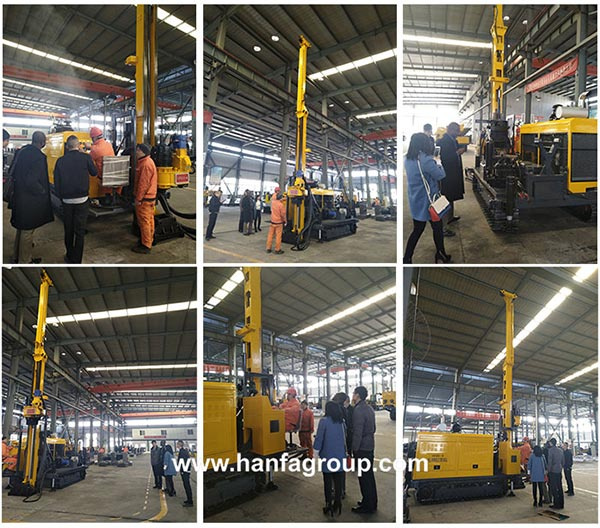

Nigeria customer visited hanfa group

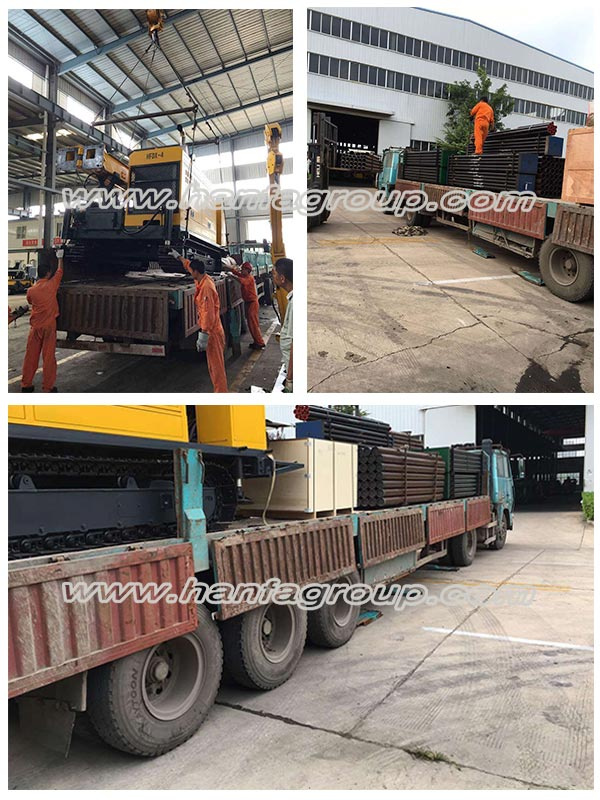

Delivery to Burundi

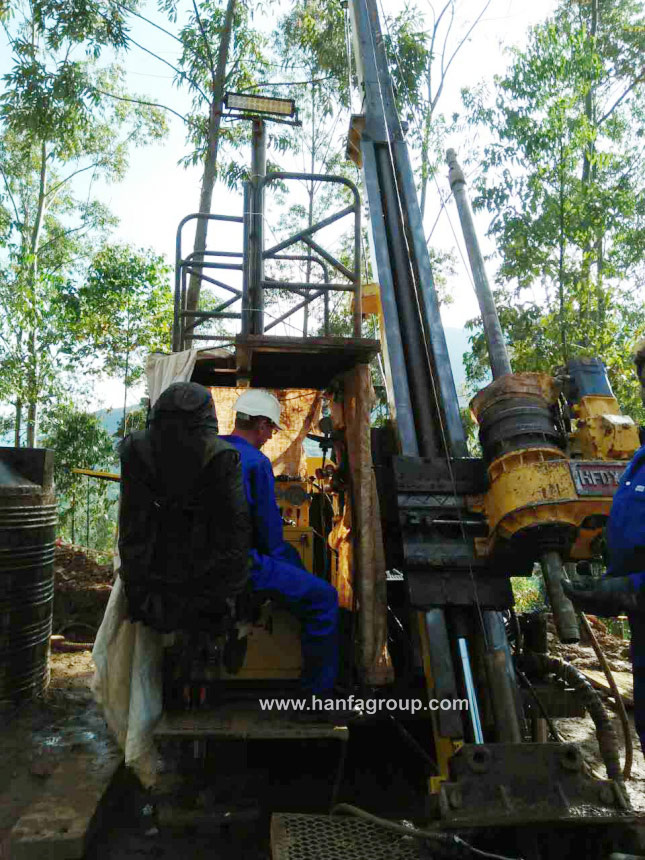

in Burundi worksiteContact Us:
