| Price: | US $ 4300/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | HG-A40T |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Fabric Cutter |
| The Warranty: | 1years |
| Custom Made: | Yes |
| Stroke: | 50-160mm or 50-240mm |
| Cutting Area: | 610*1600mm or 610*1220 |
| Cutting Force: | 25tons~100tons |
| Status: | in Stock |
| Color: | Customized |

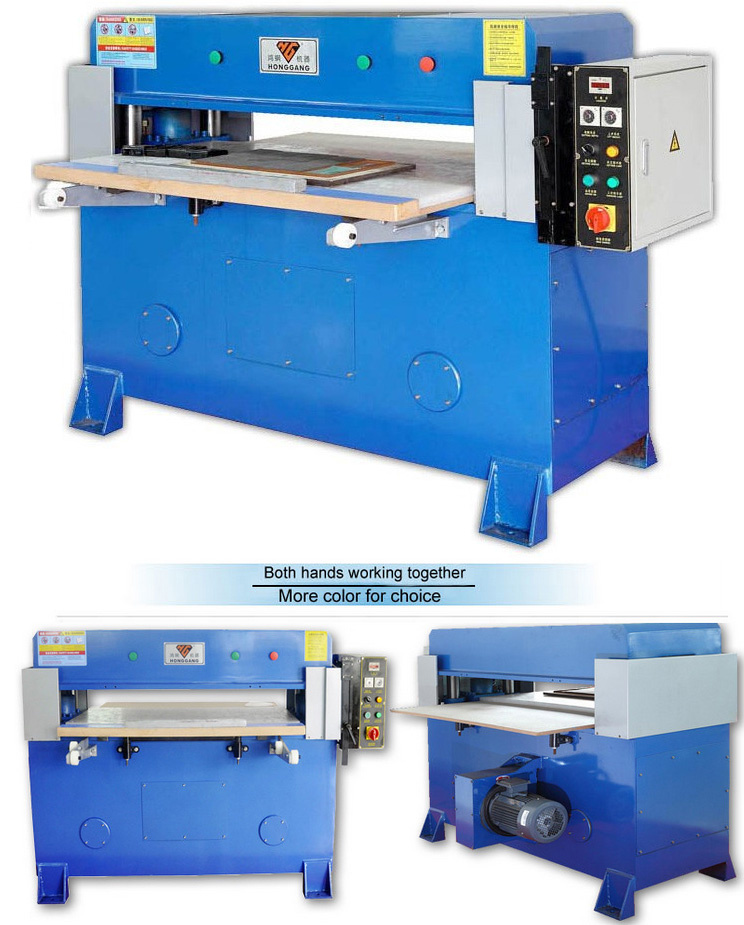

| Working System: | Both Hands Manual |
| Suitable For Material: | Sponge,Foam,Plastic,Leather,Fabric,Cloth,EVA/PU |

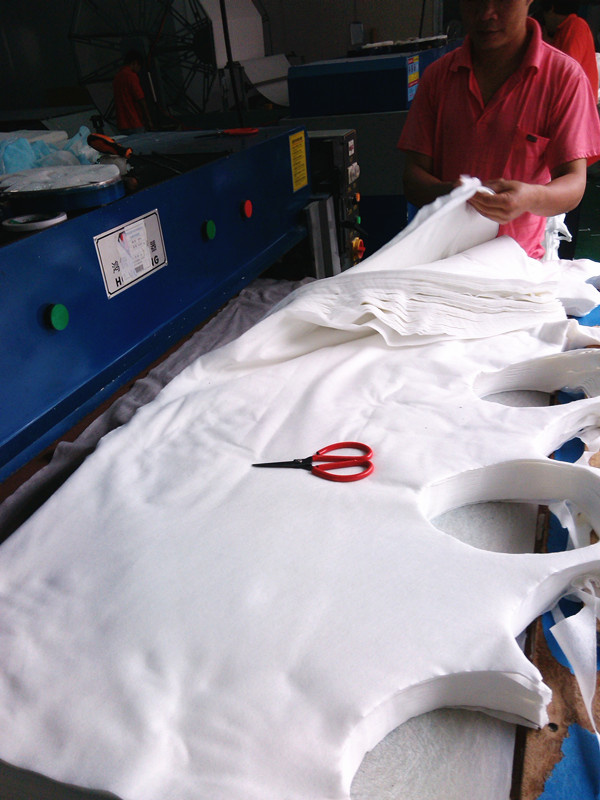

hydraulic cutting machine for multi-layer materials cutting video:
https://www.youtube.com/watch?v=LK0_k7blRDs
hydraulic cutting machine for foam materials cutting video:
https://www.youtube.com/watch?v=ceqEXQnFBWQ&index=1&list=PLZTnvjIksKDgVDj1Cd96ZheQwfuMG5mTG
hydraulic cutting machine for plywood materials cutting video:
https://www.youtube.com/watch?v=D36eBzjefCU
More cutting machine video on our youtube page:
https://www.youtube.com/channel/UCO-wTQeY0Hox4c4Gako8vAQ/videos
| 1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position. |
| 2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting. |
| 3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials. |
| 4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate. |
| 5.Central automatic lubrication systems can ensure precision and durability of the machine. |
| 6.More economical and 2 or 3 times improving producting capacity. |
| 7.Suitable for single-layer or multi-layer sheet or roll materials. |
| Model | Cutting Force | Dimension/(mm) | Cutting Area | Moter | Stroke | Net Weight |
| HG-A30T/63'' | 30 Tons | 2330*1320*1260 | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
| HG-B30T/48'' | 30 Tons | 1950*1320*1260 | 610*1220mm | 2.2kw | 50-240mm | 2000kg |
| HG-B30T/63'' | 30 Tons | 2330*1320*1260 | 610*1600mm | 2.2kw | 50-240mm | 1900kg |
| HG-A40T/63'' | 40 Tons | 2330*1320*1260 | 610*1600mm | 4kw | 50-240mm | 2500kg |
| HG-B40T/48'' | 40 Tons | 1950*1320*1260 | 610*1220mm | 4kw | 50-160mm | 2400kg |
| HG-A50T/63'' | 50 Tons | 2330*1320*1260 | 610*1600mm | 4kw | 50-240mm | 2900kg |
| HG-B50T/48'' | 50 Tons | 1950*1320*1260 | 610*1220mm | 4kw | 50-160mm | 2800kg |
1)What's warranty of machine?
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: |
