| Prod Model: |
HG-B60T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Automatic Cutter |
| The Warranty: |
1years |
| Feeding Side: |
1 or 2 |
| Cylinders: |
Two |
| Columns: |
Four |
| Cutting Area: |
810*1400mm |
| Cutting Force: |
60tons |
| Control: |
by Computer Control, PLC Control |
| Automatic Grade: |
Manual to Automatic |
| Suitable For Material: |
Sponge,Foam,Plastic,Leather,EVA/EPE/PS/PVC/PE etc. |
Product Description

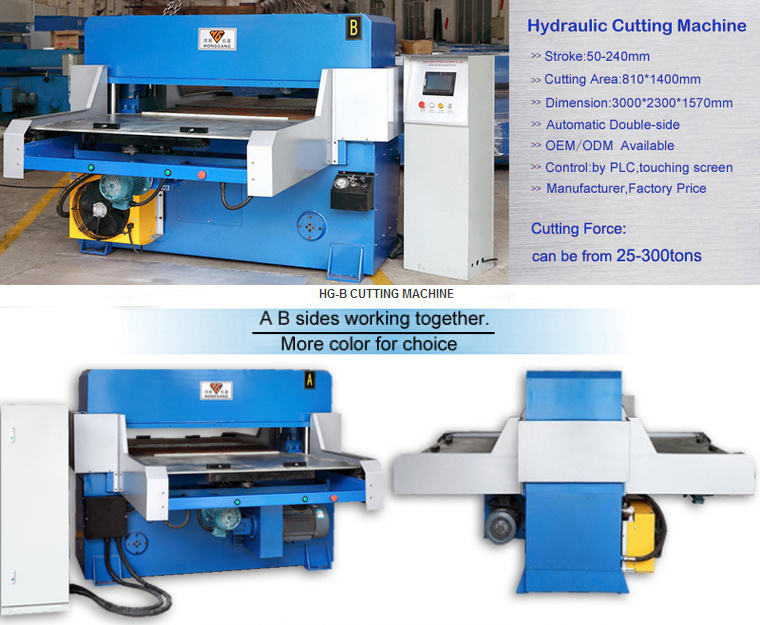

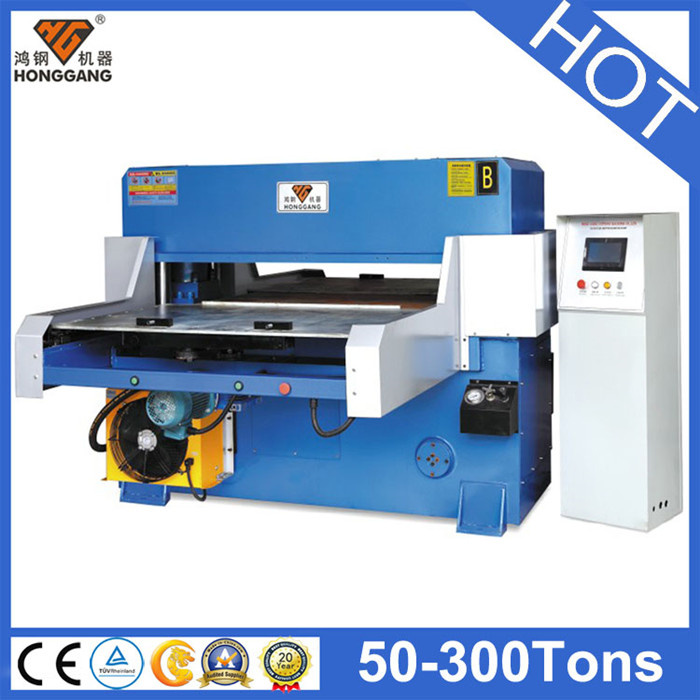

High Speed Cutting Machine Automatic Cutter (HG-B60T)
The cutting machine used for die cutting disposable blister or foam packing,EPE foam packaging,automatic/plane interiors etc.large materials sheet
1.Features and Advantages
1.controlled by PLC(programmable logic controller),with touching screen,to set and micro-adjust working pressure,cutting depth,feeding speed easier,faster and more precise.
2.double automatic working tables,increases ther output twice or triple.
3.auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure any working area.
4.powered by hydraulic system,slow down when the cutting die touches material,to confirm the precision between upper and bottom for thick materials.
5.central automatic lubrication system,increases machine durability,prolong the working time.2.Product Specification
| Model | Cutting Force | Dimension/(mm) | Cutting Area | Moter | Stroke | Net Weight |
| HG-B60T | 60 Tons | 3000*2300*1570 | 810*1400mm | 5.5kw | 50-240mm | 4500kg |
| HG-B80T | 80 Tons | 3000*2300*1570 | 810*1400mm | 7.5kw | 50-240mm | 5000kg |
| HG-B100T | 100 Tons | 3000*2300*1570 | 810*1400mm | 7.5kw | 50-240mm | 5500kg |
| HG-B120T | 120 Tons | 3000*2300*1570 | 810*1400mm | 11kw | 50-240mm | 6300kg |
| HG-B150T | 150 Tons | 3000*2300*1570 | 810*1400mm | 11kw | 50-240mm | 7000kg |
Remark:Cutting force can be from 50 tons to 300tons;cutting area can be (610/710/810/910mm)×
(1400/1600/1800mm),etc

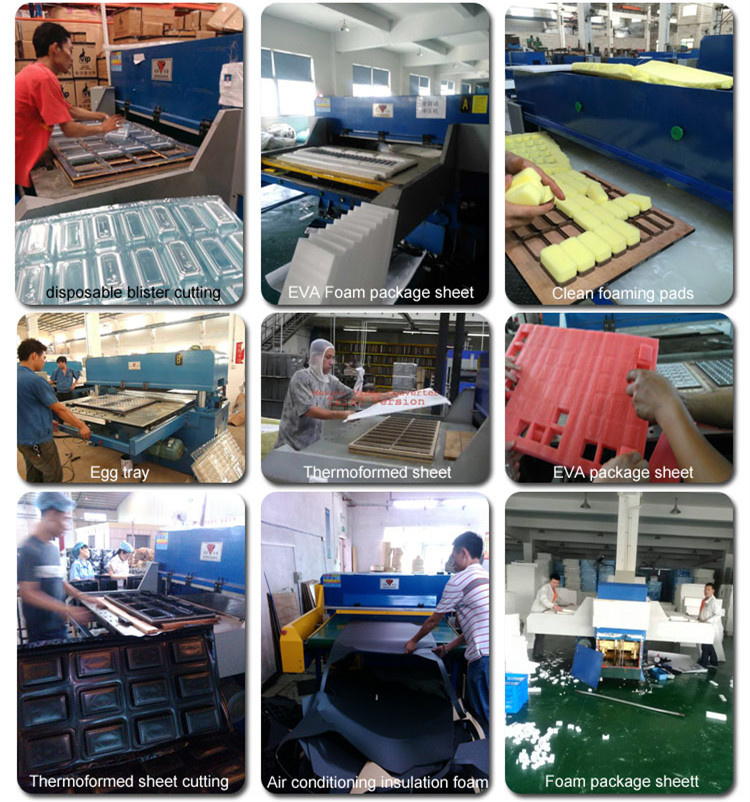

3. The Cutting Machine Working Show
4. Application Materials:
The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
5. FQA:
1)What's warranty of machine?
12 months Warranty
Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.
3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.
4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.
5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.
6)Are you a factory or trading company?
We are a factory and manufacturer
Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:
| Material: | |
| Max. material width: | |
| Max. material thickness: | |
| Max.cutting length: | |
Send your Inquiry Details in the Below, Click "Send" !
we will reply within 24h!
Hongang Cutting Machine Co., Ltd is a leading manufacturer in hydraulic cutting machine, leather embossing and belt plating machine, serving for leather bags, shoes, thermoforming plastic, blister packaging, soft toys, packing foam, EPE foam, kitchen sponge scrubber etc. Industries.
We integrating development, production and after-asles service together. We have 4 offices in Shenzhen, Guangzhou, Shanghai, wirh after-sales service departments, Our company was estabished in2004, and we have more than 20 years experience in hydraulic cutting machine.
In 2008, we rebuilt this new factory, 20000 square meter, located near Guangzhou, we enjoy convenient water, land and air transportation. From Guangzhou Airport, just need 40mins. Our customers have spread all over the Europe, Austria, Africa, Asia, America. Until today, we are the biggest die cutting machine & embossing machine manufacturer in China for leather goods, plastic, bister packaging, toys, textiles, sponge, rubber, packing, floor covering, carpering, glass-fiber, cloth, cork, EPE foam etc industries.
