| Prod Model: |
ROS 120 |
| Model No: |
Numa120, Numa125 |
| Model: |
Numa100, Numa125, Numa120 |
| Sizes: |
2 Inch to 30 Inch |
| New: |
2017 King of The Hammer Bits |
| China: |
China a Bag of Hammer Bits |
| Bits: |
DTH Hammer Bits |
| Item No: |
Numa DTH Bit Products |
| Button Bits: |
China Numa Hammers and Button Bits |
| Name: |
Mission DTH Bits, Cop DTH Bits |
| Type No: |
DTH Hammer Button Bits |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product Description
About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

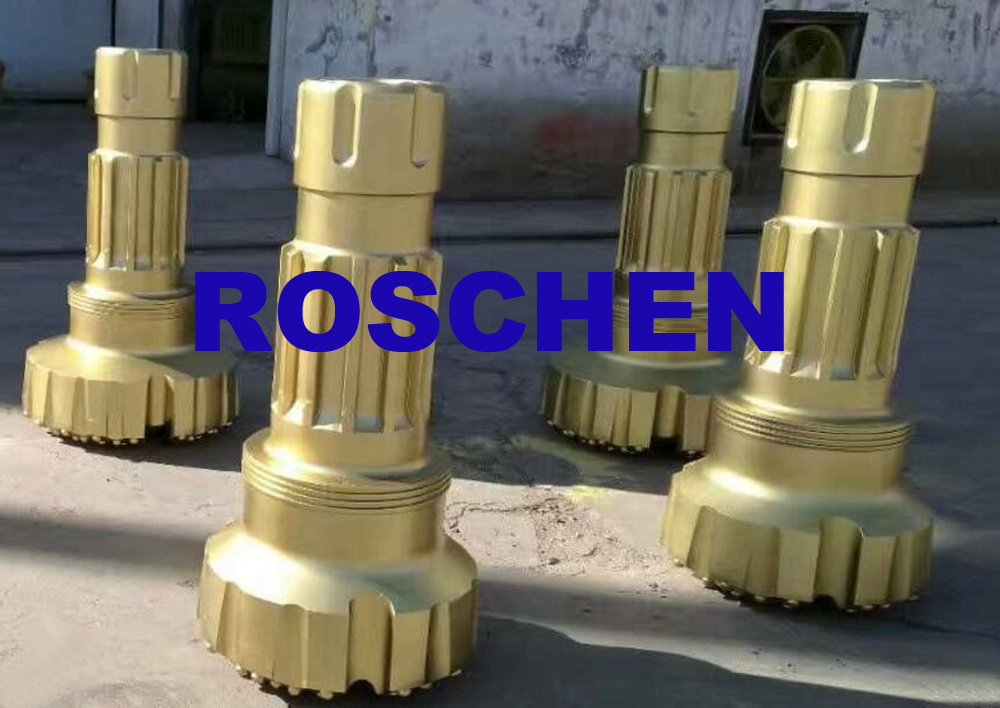

Product specifications: SD12-311mm DTH button bits
For 12" hammer
DTH bits shank | Bit Dia. | No
Air
Holes. | Gauge
Buttons | Front
Buttons | Weight
(Kg) | Part No. |
|
| mm | inch |
| DHD1120 | 305 | 12" | 4 | 12×φ18 | 36×φ16 | 152 | DHD1120-305 |
| 311 | 12 1/4" | 4 | 12×φ18 | 36×φ16 | 157 | DHD1120-311 |
| 330 | 13" | 4 | 16×φ18 | 42×φ16 | 165 | DHD1120-330 |
| 356 | 14" | 4 | 16×φ19 | 48×φ16 | 178 | DHD1120-356 |
| 381 | 15" | 4 | 16×φ19 | 48×φ18 | 198 | DHD1120-381 |
| SD12 | 305 | 12" | 4 | 12×φ18 | 36×φ16 | 156 | SD12-305 |
| 311 | 12 1/4" | 4 | 12×φ18 | 36×φ16 | 168 | SD12-311 |
| 330 | 13" | 4 | 16×φ18 | 42×φ16 | 180 | SD12-330 |
| 356 | 14" | 4 | 16×φ19 | 48×φ16 | 191 | SD12-356 |
| 381 | 15" | 4 | 16×φ19 | 48×φ18 | 200 | SD12-381 |
| NUMA120 | 305 | 12" | 4 | 12×φ18 | 36×φ16 | 152 | NUMA120-305 |
| 311 | 12 1/4" | 4 | 12×φ18 | 36×φ16 | 158 | NUMA120-311 |
| 330 | 13" | 4 | 16×φ18 | 42×φ16 | 165 | NUMA120-330 |
| 356 | 14" | 4 | 16×φ19 | 48×φ16 | 178 | NUMA120-356 |
| 381 | 15" | 4 | 16×φ19 | 48×φ18 | 195 | NUMA120-381 |
| NUMA125 | 305 | 12" | 4 | 12×φ18 | 36×φ16 | 170 | NUMA125-305 |
| 311 | 12 1/4" | 4 | 12×φ18 | 36×φ16 | 173 | NUMA125-311 |
| 330 | 13" | 4 | 16×φ18 | 42×φ16 | 182 | NUMA125-330 |
| 356 | 14" | 4 | 16×φ19 | 48×φ16 | 191 | NUMA125-356 |
| 381 | 15" | 4 | 16×φ19 | 48×φ18 | 200 | NUMA125-381 |
Other ROSCHEN hammer bit technical data:
| ROSCHEN DTH Bits Specifications |
| Hammer Size | Bits diameter | Shank | ROSCHEN CODE |
| Metric | Inch |
| 1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 | ROS 11 |
| 2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 | ROS 22 |
| 3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 | ROS 32 |
| M30/DHD3.5/BR3 | ROS 34 |
| 4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 | ROS 42 |
| SD4/M40/QL40 | ROS 44 |
| 5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 | ROS 52 |
| SD5/M50/QL50/BR5 | ROS 54 |
| 6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 | ROS 62 |
| M60/QL60/Bulroc BR6 | ROS 64 |
| 8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 | ROS 82 |
| QL80/M80/M85 | ROS 84 |
| 10" | 254mm-380mm | 10"-15" | SD10 | ROS 100 |
| NUMA100 |
| 12" | 305mm-508mm | 12"-20" | DHD1120/SD12 | ROS 120 |
| NUMA120/NUMA125 |
| Notes: |
| Metzke, Remet thread is available! |
| Any special size of DTH bits will be available by requests. |
Shank can be available:
1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

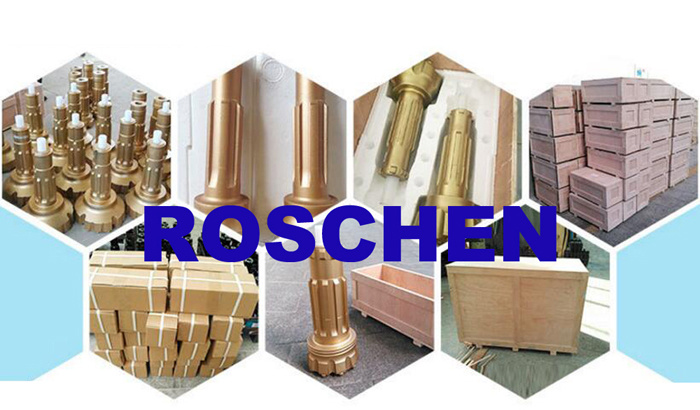

Product photos
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
For more information please contact:
ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED
Website: http://www.roschen.net
; http://www.roschen.cn
http://www.roschen.com
; http://www.roschengroup.com
ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling products
ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling, can offer the equipment needed for all rock drilling, underground and surface exploration applications in Mining Industry, Water Well Industry, Oil Field Industry and geothermal industry, etc. This includes rigs and all full range of high technology and high quality products, ITH equipment such as button bit, DTH bit, DTH Hammer, wireline series products, metric series products, drill rod and conventional core barrel, overshot, as well as casing and diamond core bit - all designed to maximize our customer profitability.
Rock drilling and Exploration drilling is tough, results-driven work. And if you want it done right, you need the right tools. ROSCHEN Exploration Products has the products you've depended on for many years.
All our products are designed to help the user minimize down-time and maximize productivity. ROSCHEN products used in many industries: Waterwell, Environmental, Oil Exploration, Mining, Geothermal and Construction.
We build drill bits to the highest standards - using raw materials selected for quality and durability, and assembling them with the latest metallurgical technology.
Our innovative and unique alloy formulations assure you of maximum penetration under all conditions, and ROSCHEN can customize drill bits to your specifications for any especially difficult drilling situations.
You'll find our experienced production team delivers exactly what you need - any time, anywhere. ROSCHEN has one clear focus - to provide the best diamond-drilling tools, equipment and accessories for the world's leading mineral drilling exploration companies.
