High Brightness SMD 3535 Outdoor LED Display Screen for Video Advertising (P6, P8, P10)
| Price: |
US $ 500-750/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P6mm |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
192X192mm |
| Module Resolution: |
32X32dots |
| Cabinet Size: |
768X768mm/960 X 960mm |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
FCC |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/Sq.M |
| Application: |
Advertising, Stage Performance, Rental |
Product Description
P6 SMD3535 Full Color LED Display panel for outdoor advertising with high brightness,good waterproof and resonable cost,it is sold very well this year
Product Features:
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness,good waterproof IP65,anti-corrosion,anti-rust,long life span>100000hours
3.High pixel density, high resolution and high definition,perfect display vision
4. Lower power consumption,good heat dissipation,low noise created.
5. Cabinet with locks,connectors,easy and quick to assemble without tools in short time

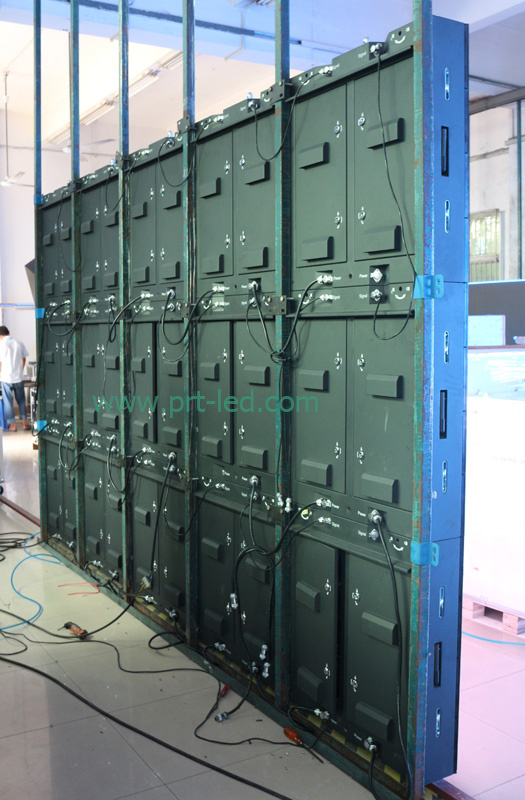

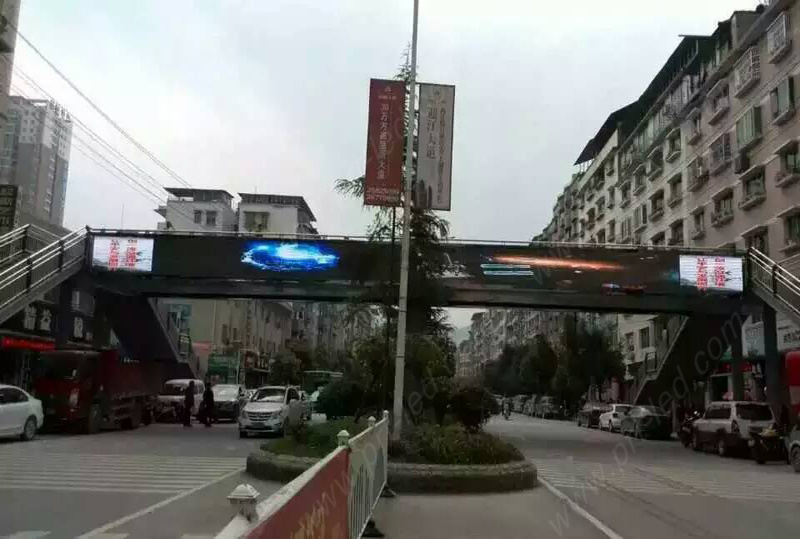

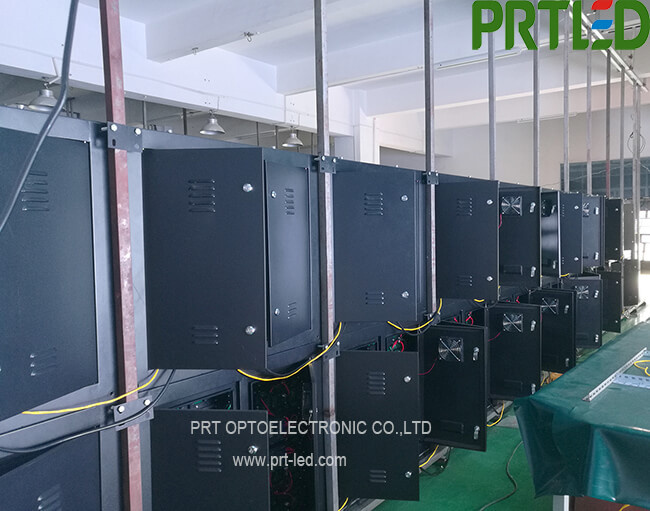

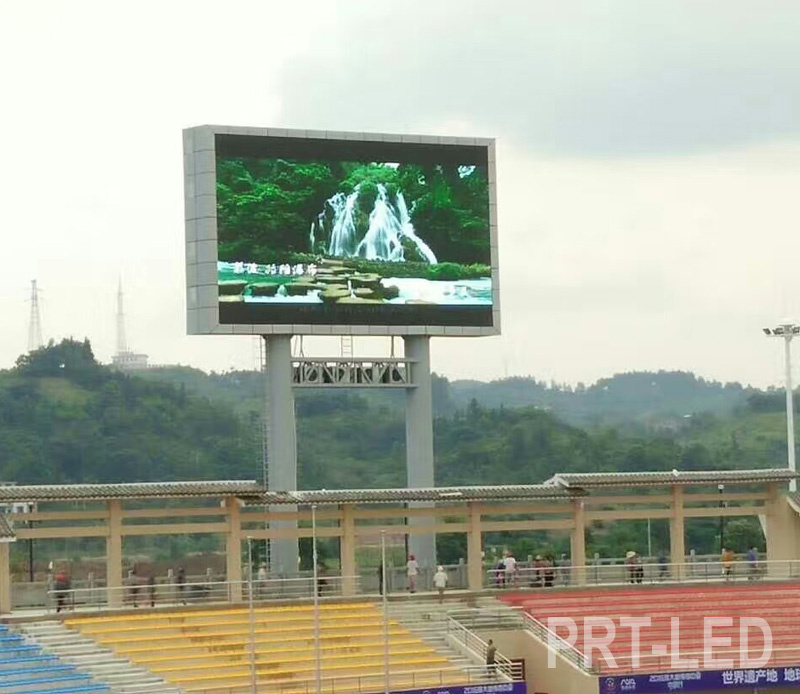

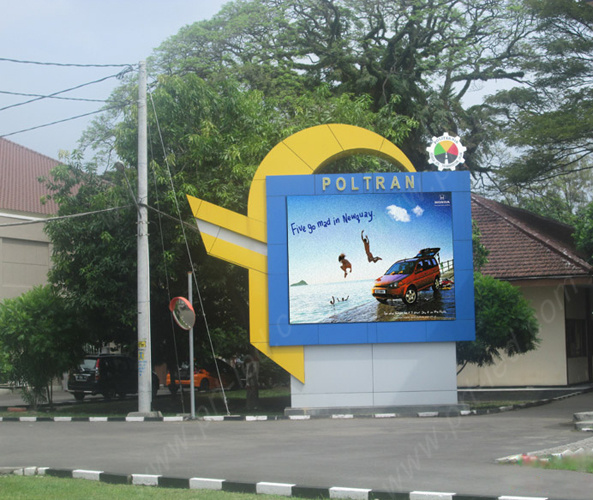

6. Widely used for commercial display,advertising, stage background,mobile display. traffic display,sports led display etc.More pictures:
| P6 SMD3535 Outdoor full Color LED Screen Specification |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 192mm x 192mm |
| Resolution of module | 32 x32dots |
| Size of cabinet | 768mm X 768mm x 150mm/960mm x 960mm x 150mm |
| Resolution of cabinet | 128x 128 dots/160x160dots |
| Material of Cabinet | Iron/Aluminum |
| Weight of Cabinet | 30/45KGS |
| Brightness | >6000cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 5-60M |
| Maximum power consumption | 1000W/sq.m |
| Average power consumption | 560W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
