LED Encapsulation:
SMD3535
Module Size:
250X250mm
Cabinet Material:
Die-Casting Aluminum
Control Method:
Synchronous
Waterproof IP:
IP65
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Display Type:
LED Video Display
Application:
Advertising
Certification:
CCC
Pixel Pitch:
6.25mm
Pixel Density:
25600dots/Sq.M
Scanning Mode:
1/10 Scan
Product Description
Competitive P6.25 SMD3535 Full Color LED Sign for outdoor display, to be fixed or be hung on truss for advertising, with 500x1000mm or 500x500mm die-casting Aluminum cabinet, light weight, high brightness,good stability
Product Features:
1.SMD3535 3 in 1 led encapsulation confirm wide view angle up to 140° for vertical and horizontal,and lower power consumption,energy saving
2. Good waterproof IP65, suit to any weather,anti-corrossion,long life span over 50000Hours
3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure light weight, only 13.5kgs per panel, can be picked up by one hand, easy to install and dismantle, better for rental use,
4. High brightness up to 6000nits, close view distance,good performance

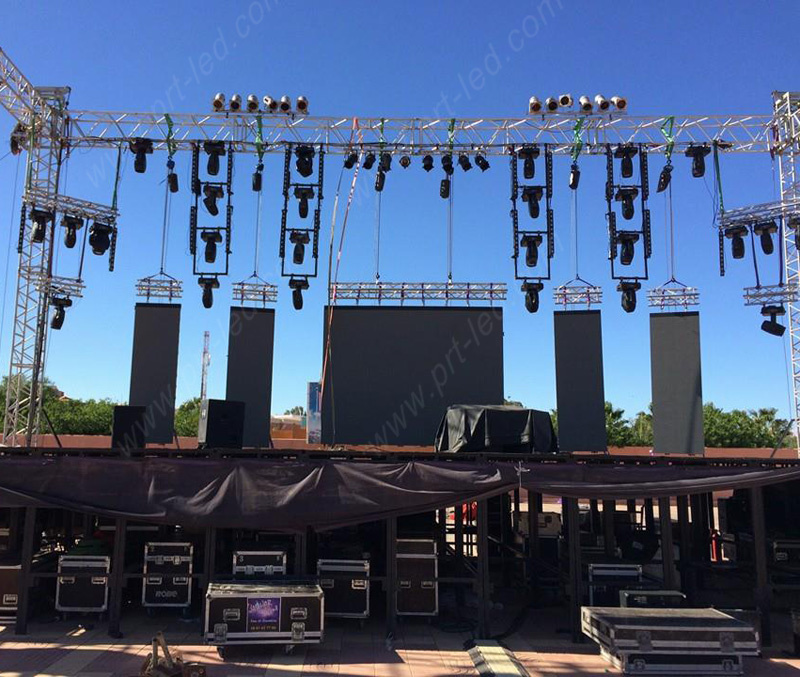

5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar
6. Dot to dot maintainance, quick maintain and save cost
7.No fans design, no noise caused, good environment protection
8. Widely used for stage, concert, show, banquet, wedding,stage background,public advertising etc.
9. We have other outlooking design cabinets for P3.91,P4.81,P5.95 and P6.25,with some different costs for customer's choosing,please contact us for details.

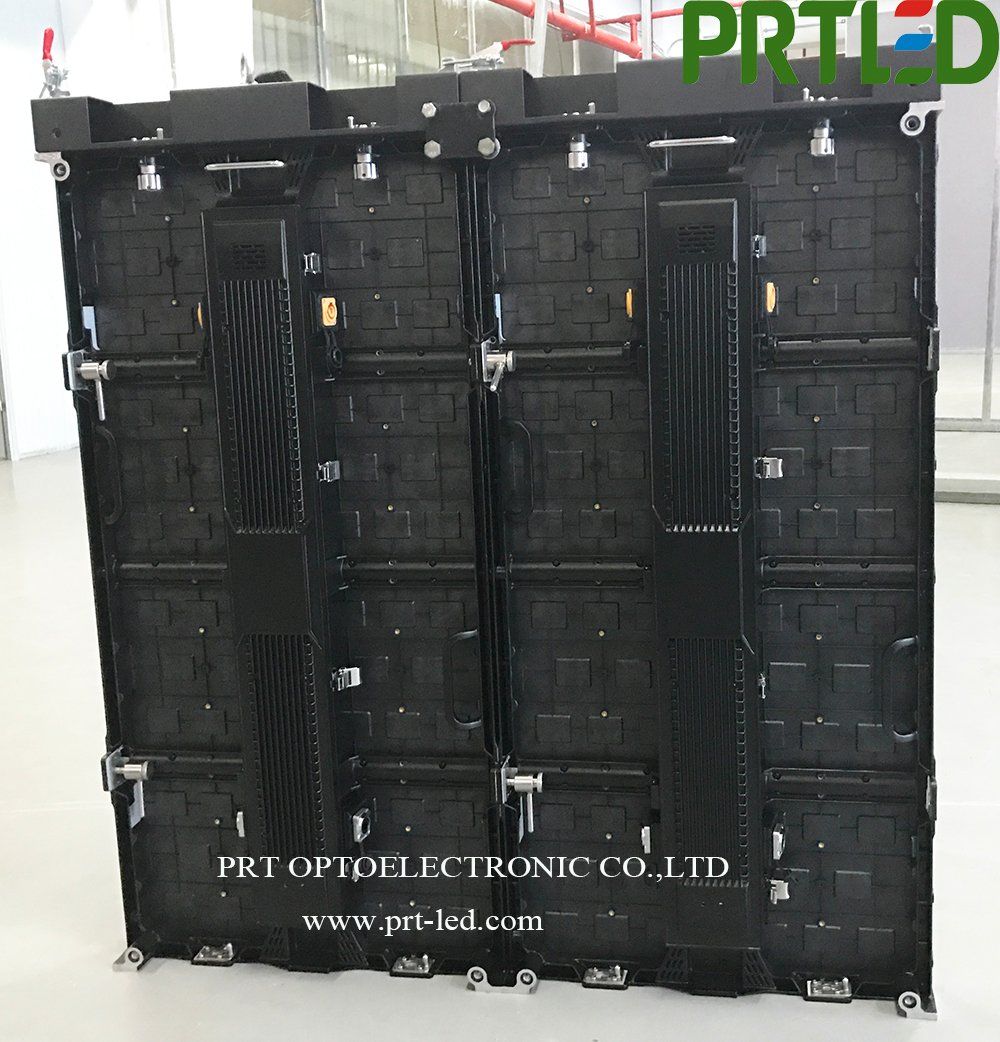

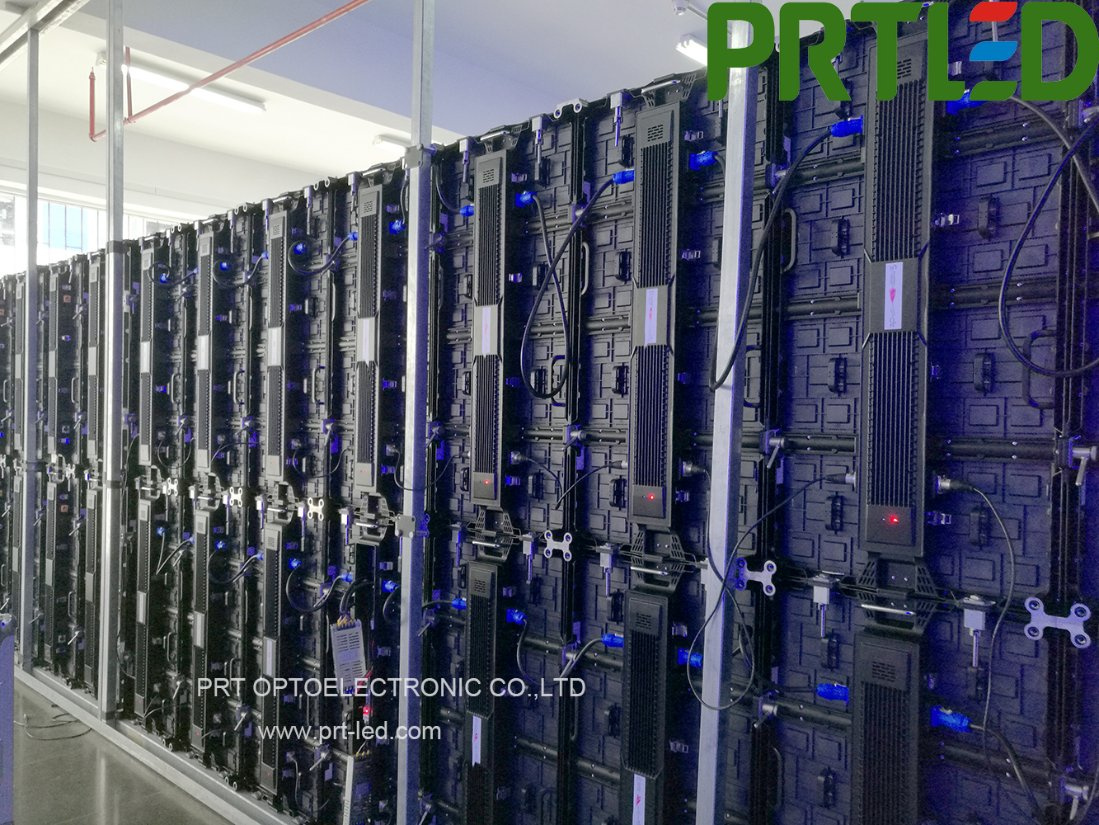

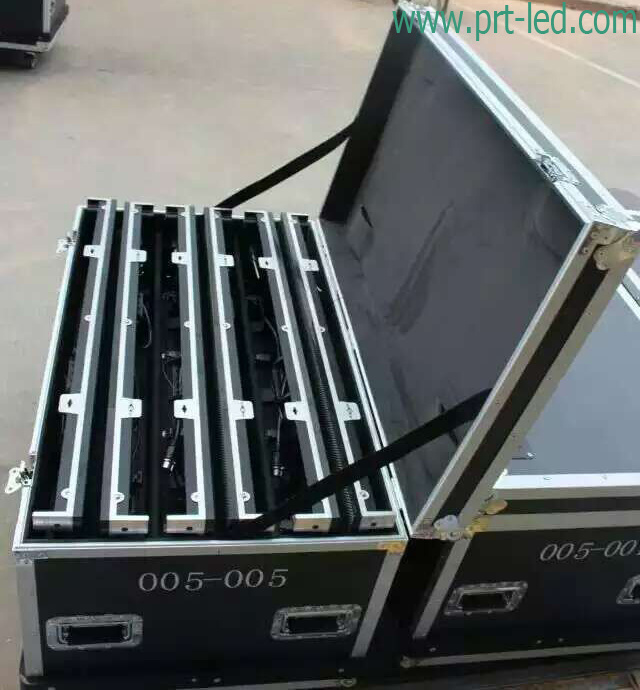

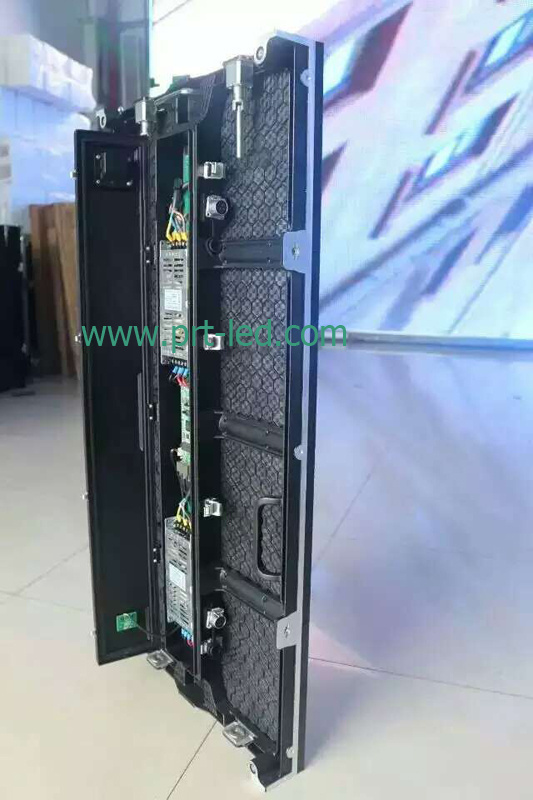

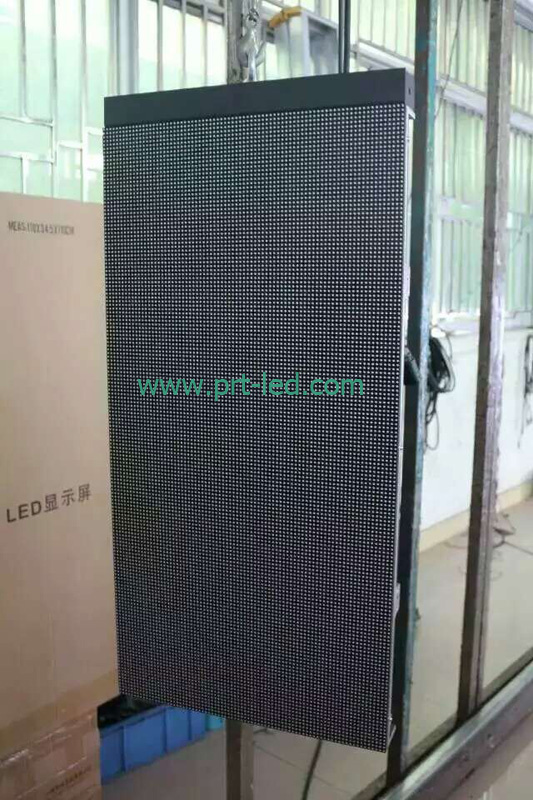

More cabinet pictures for reference as below:
Related parameter for reference, please contact us for details, we produce products based on different requirements,and will cause different cost.
P6.25 full Color LED Screen/Curtain Specification
Pixel pitch
6.25mm
Pixel Configuration
1R1G1B
LED component
SMD3535
Size of module
250mm x 250mm
Resolution of module
40x40dots
Size of cabinet
500mm x 1000mm x 75mm
Resolution of cabinet
80x160dots
Material of Cabinet
Die-casting Aluminum
Weight of Cabinet
13.5KGS
Brightness
>6000cd/sq.m
Density
25600dots/sq.m
Best viewing angle
140° /140°
Pixel Configuration
1R1G1B
Best viewing distance
6-100M
Maximum power consumption
1000W/sq.m
Average power consumption
550W/sq.m
Driving method
1/10 scan
Control method
Synchronization
Gray scale
65536
Colors
256*256*256
Color temperature
3200-9300k
Uniformity
97%
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
Working humidity
10%~ 90%
MTBF
10,000 hours
Frame frequence
50/60Hz
Refresh frequence
>1920Hz
IP grade
IP65
Life Span
100,000 hours
Data transafer method
RJ45
Pratical standard
CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
