High Efficiency 700 Bar Electric Hydraulic Pipe Bender with Pump
| Price: |
US $ 1000-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DWG-159 |
| Output: |
500kn |
| Bending Range: |
76-159mm |
| Motor Power: |
2.2kw |
| Bending Radius: |
4 X Pipe Diameter |
| Pressure: |
700bar |
| Stock: |
Yes |
| OEM: |
Yes |
| Payment: |
T/T |
| Certificate: |
Ce, ISO9001:2008 |
Product Description

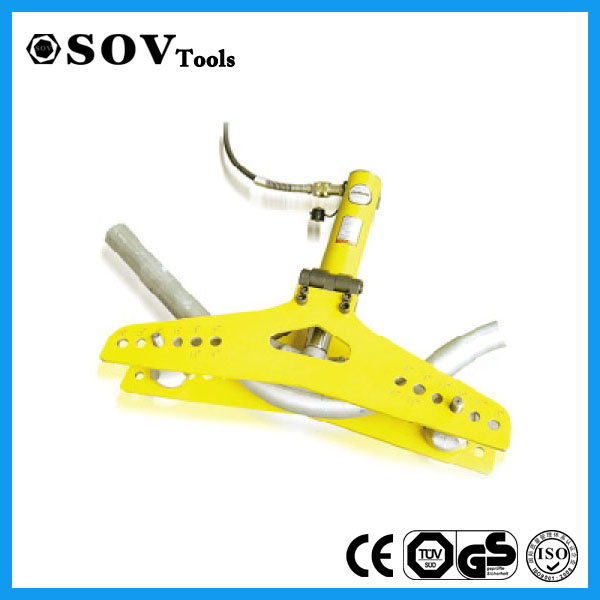

Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes.
Size 1/2''- 2'' pipes can be bent to 90º at a time, size 2''- 6'' must move the pipe to bend.
Product Features

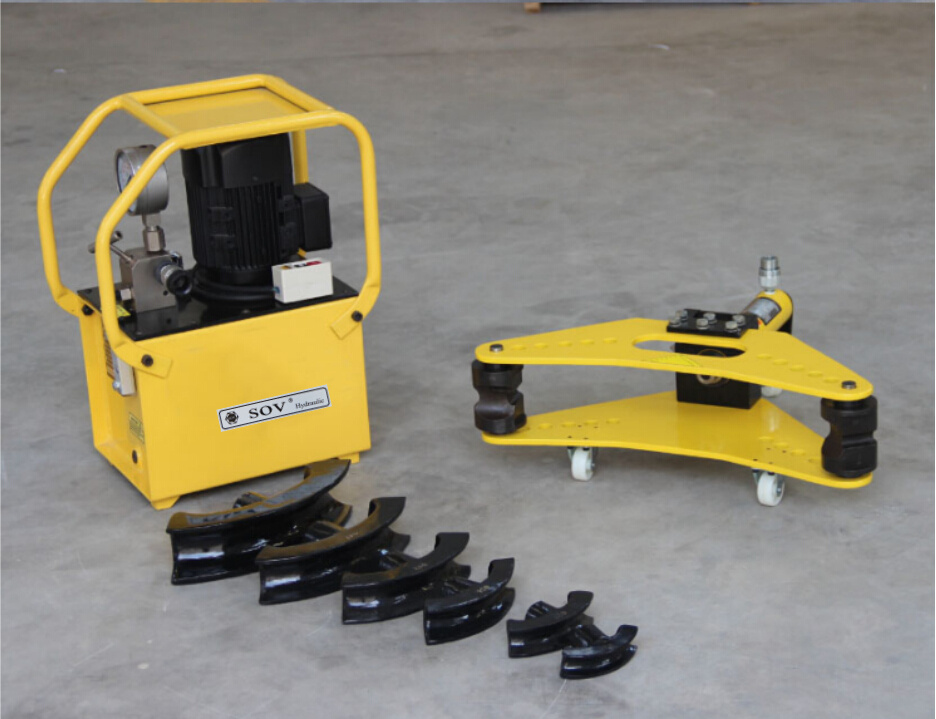

1. A whole set includes Hydraulic Pipe Bender, Electric Hydraulic Pump, Hydraulic Hose, Molds, Fixed Plug-pin;
2. Double acting Hydraulic Cylinder, quickly reset, improving the bending efficiency;
3. Piston plated hard Cr to prevent scratches and corrison, surface painted to improve the resistance and corrison;
4. Lightweight heat-treated steel molds and steel frame make bending pipe smooth wrinkle-free;
5. Size 4''- 6'' Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic Cylinder which reset quickly, works more efficiently with Electric Pump.
Technical Parameters| Model No. | Working Pressure
(MPa) | Bending Range
(Outsider Diameter)
(mm) | Bending Radius
(mm) | Thickness
(mm) | Motor Power
(kW) | Capacity
(kN) |
| SOV-DWG-60 | 70 | 22-60 | 4x pipe diameter | <=4 | 0.75 | 100 |
| Female mold 2 pieces; pin 2 pieces; bending type: 22 27 34 42 48 60 |
| SOV-DWG-76 | 70 | 27-76 | 4x pipe diameter | <=10 | 0.75 | 300 |
| Female mold 2 pieces; pin 2 pieces; bending type: 27 34 42 48 60 76 |
| SOV-DWG-108 | 70 | 27-108 | 4x pipe diameter | <=10 | 2.2 | 300 |
| Female mold 2 pieces; pin 2 pieces; bending type: 27 42 48 60 76 89 108 |
| SOV-DWG-159 | 70 | 76-159 | 4x pipe diameter | <=10 | 2.2 | 500 |
| Female mold 2 pieces; pin 2 pieces; bending type: 76 89 108 133 159; block 2 pieces |
Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Company information

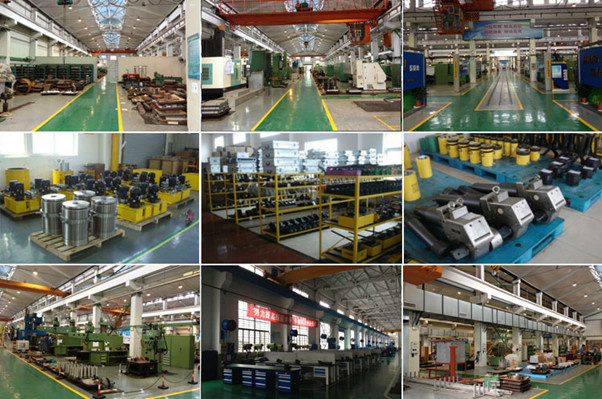

Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

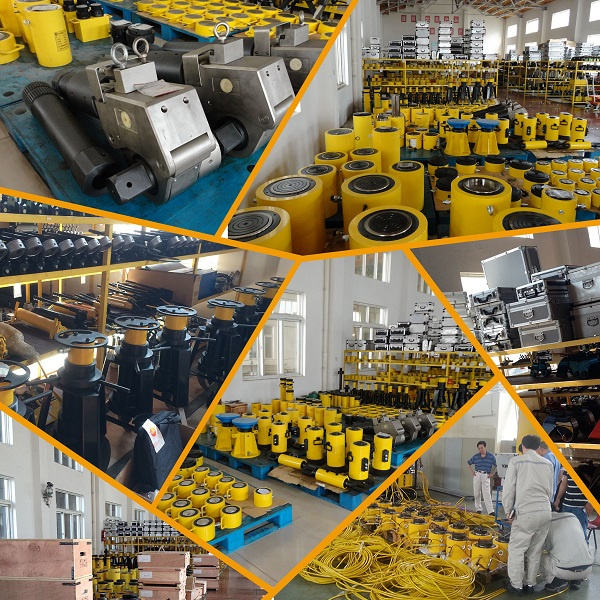

Main Products
