| Prod Model: |
BX-600 |
| Chipper Type: |
Disc Type |
| Quantity Of Knife: |
4-6 PCS |
| Input Diameter: |
130mm-350mm |
| Wood Chips Size: |
20mm-45mm |
| Output: |
1-40 Tons Per Hour |
| Remark: |
Inclined Input |
| Keyword 1: |
Wood Chipper Machine |
| Keyword 2: |
Wood Chipping Machine |
| Keyword 3: |
Wood Chipper Shredder |
| Keyword 4: |
Wood Chips Making Machine |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
CE |
Product Description

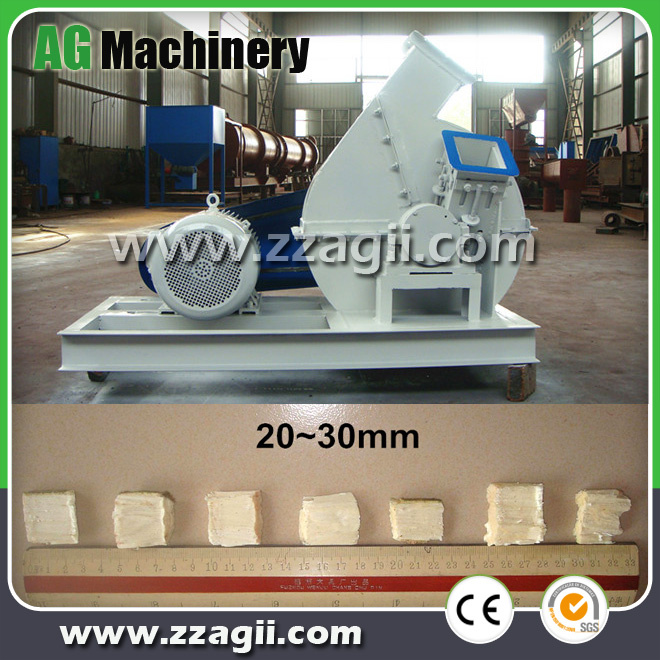

China Supplier of High capacity BX Series Dics Wood Chipper for sale
Product Description:It is an ideal equipment of processing the raw materials including wood branch, round logs, square blocks, and wood pieces into small pieces wood chips.
The BX series Wood Chipper can solve the problem of large difficult wood feeding
The Wood Chipper can handle many raw materials like wood log, bamboo;tree branches and wood fiber rod.
Wood Chipper is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, fiber board and so on.
Technical Parameters:| Model | BX-600 | BX-800 | BX-950 |
| knife disc Dia (mm) | 600 | 800 | 950 |
| knife Qty (pcs) | 3 | 4 | 6 |
| Input opener (mm) | 150*140 | 170*160 | 220*210 |
| Input Dia (mm) | 130 | 150 | 200 |
| Chips size (mm) | 20-35 | 20-35 | 25-35 |
| Power (KW) | 22 | 37 | 55 |
| Rotary speed (rpm) | 950 | 900 | 850 |
| Capacity (tons/hour) | 1-3 | 3-6 | 8-12 |
| Overall size (mm) | 1600*1000*1400 | 1800*1100*1500 | 2000*1200*1600 |
| Weight (kg) | 880 | 1680 | 2180 |
| Remark | Inclined input | Inclined input | Inclined input |

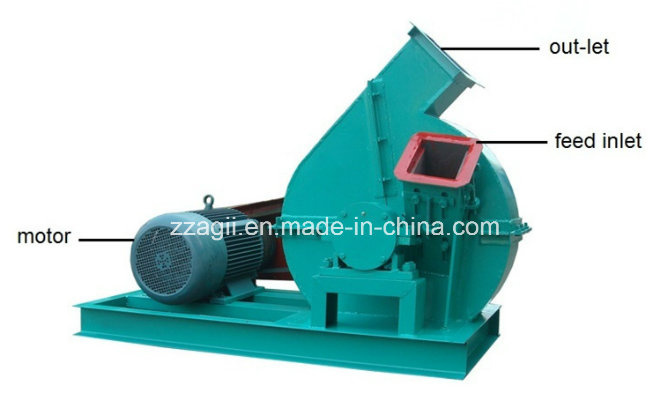

Working PrincipleIt is mainly made up of the base, feed port, cutter head, casing, blade and electronic control box.
This machine can adjust cutting blade as needed, produce different specifications and thickness of the Wood chip.
The wood material is fed into machine chipping part through feed port, when it touches to cut blade, Along with the cutting knife plate ofHigh-speed rotation to peel and cut, at last, these wood pieces are Sent out through high speed steam-flow produced by fan blade in the knife plate.
Application of wood chipperIt is widely used in textile, papermaking, particle board, fiber board manufacturing industrial, etc.
Raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood fiber stalk, the length of chips can be adjusted in a certain range as needed.
