Prod Model: |
XYD series |
Final Hole Diameter: |
75mm |
Drill Pipe Diameter: |
42-60mm |
Motor Power: |
13.2kw |
Model: |
Xyd |
Max Opening Diameter: |
220mm |
Borehole Inclination: |
90-75 |
Warranty: |
12months |
MOQ: |
1set |
Color: |
Yellow |
Usage: |
Geological General Investigation and Exploration |
Product Description

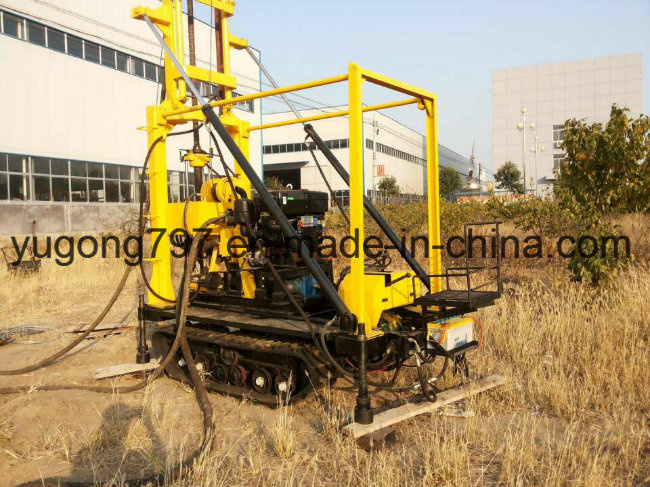

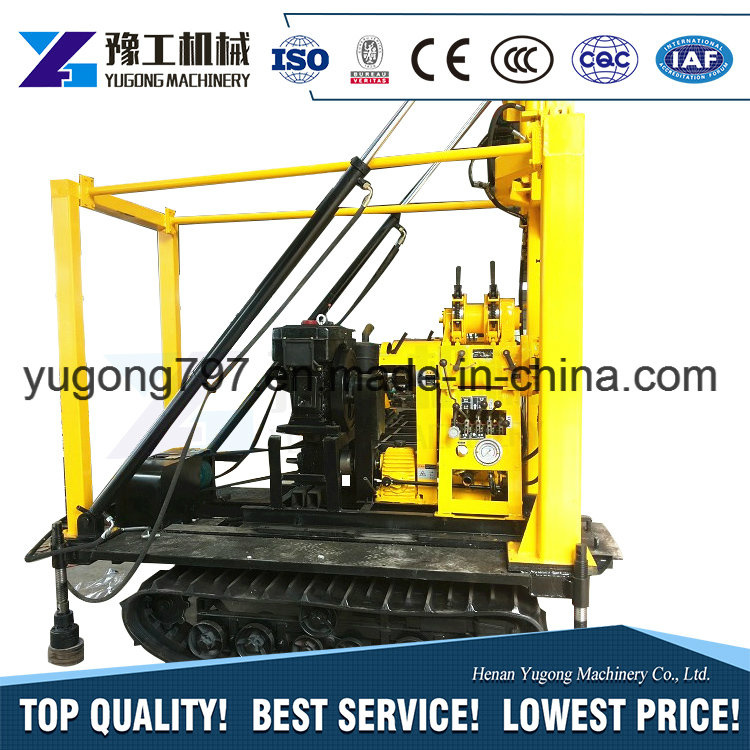

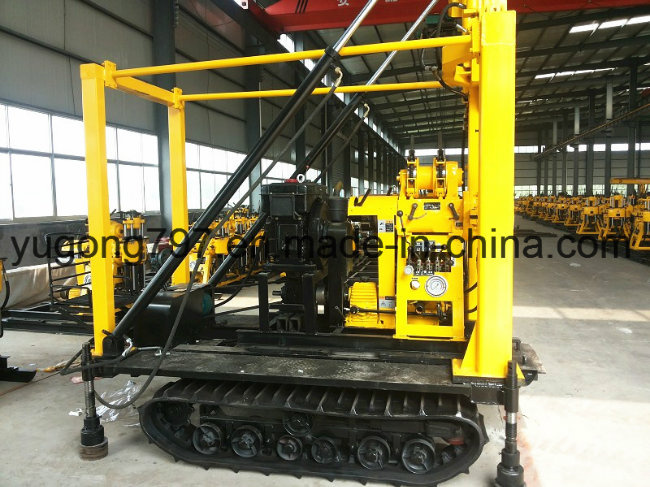

YG high efficiency hydraulic crawler drill for drilling well
Product descriptionXYD series crawler drilling machine or track mounted drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.Feature- Hydraulic control drill mast,save time and worker labor.
- Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.
- Rubber track is with lighter weight,and does not hurt urban road.
- Electric-start diesel engine reduces the operator's labor intensity.
- Mud pump:BW160 mud pump,with bigger flow displacement and pressure,easy maintenance.
- 6.Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
.Technical parameterThe whole machine parameters |
Model | XYD-130 | XYD-180 | XYD-200 |
Drill hole depth | 130m | 180m | 200m |
Maximum opening diameter | Φ75-Φ220mm | Φ75-Φ220mm | Φ75-Φ325mm |
Final hole diameter | Φ75mm | Φ75mm | Φ75mm |
Drill pipe diameter | Φ42-60mm | Φ42-60mm | Φ42-60mm |
Borehole inclination | 90°- 75° | 90°- 75° | 90°- 75° |
Power(diesel engine) | 13.2/2200kw/r/min | 13.2/2200kw/r/min | 15/2200kw/r/min |
Size | 3.8*1.95*2.7m | 3.8*1.95*2.7m | 3.8*1.95*2.7m |
Vertical shaft |
Vertical spindle speed | 142,285,570r/min | 130,480,730,1045r/min | 64,28,287,557r/min |
Vertical stroke | 450mm | 450mm | 450mm |
Crawler chassis |
Crawler size/piece | 350*90*48mm | 350*90*48mm | 350*90*48mm |
Climbing angle | 20° | 20° | 20° |
Moving speed | 10km/h | 10km/h | 10km/h |
Hydraulic landing leg valid height | 1300mm | 1300mm | 1300mm |
Rig |
Rated load | 18t | 18t | 18t |
Effective height | 6.5m | 6.5m | 6.5m |
Mud pump |
Model | BW160 | BW160 | BW160 |
Flow | 160L/min | 160L/min | 160L/min |
Maximum pressure | 1.3Mpa | 1.3Mpa | 1.3Mpa |
Reciprocating frequency | 165times/min | 165times/min | 165times/min |
Inlet hose diameter | Φ51mm | Φ51mm | Φ51mm |
Outlet hose diameter | Φ32mm | Φ32mm | Φ32mm |
Payment termsT/T,L/C,Western Union,Trade Assurance,etc. Packing Standard export packing or as your requirement. DeliveryWithin 3-7 working days after received payment. ShippingDHL/UPS/TNT/FEDEX,By Air,By Sea. ServicePre-sale Service:1.Help you to chose the fit machine.2.Making the machine according to your requirement.Sale Service:1.Acceptance equipment together with you.2.Help you to make the method statement and the details of the process.After Service:1.Guarantee for a year.2.Quality problem,we will send you the accessories.Frequently Asked Questions
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
About Us

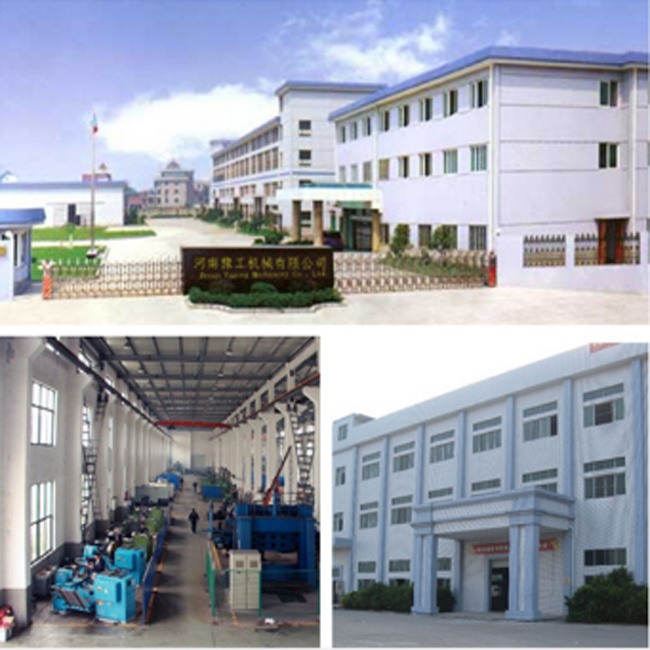

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.
