| Prod Model: |
XY-150 |
| Weight: |
810kg |
Product Description

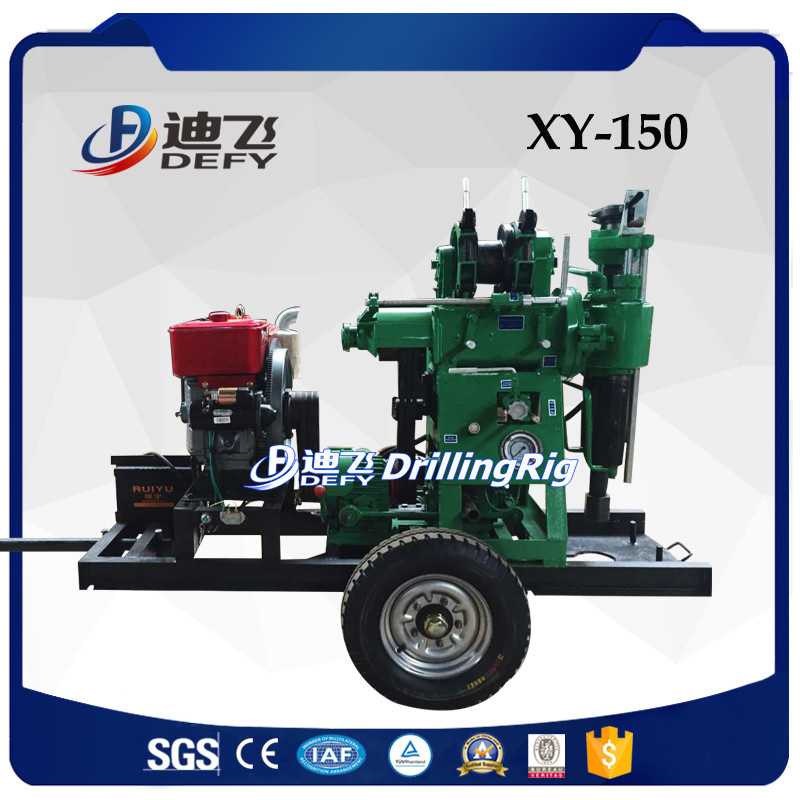

high efficiency Xy-150 portable rock core drill rig machine for water well
Brief Details of Water Well Drilling Rig:
1. Model No.: XY-150
2. Max. Drilling Depth:150m
3. Drilling Rod Diameter: 50mm
4. Borehole Diameter: 75~~400mm
5. Warranty: One year guarentee excluding wearing parts
6. Certifications: BV, SGS Certificate
7. Applications: Water Well, Irrigation wells, Geological Exploration, Blast Holes, Geothermal Heat Project etc.
Introduction
We build the portable water well drilling rigs with nothing but the best components and materials. We work with hydraulic experts to help us make sure the rigs we build have an efficient hydraulic system. No matter what model of drilling rig you choose, you can rest assure that we have put many hours builing, testing and inspecting your rig.
XY-150 drilling rig is a new-type, portable engineering drilling machine for multiple applications.
Geological prospecting;
Foundation holes of small buildings;
Drilling of water wells;
Core sample,soil investigation etc
Water well drilling rig XY-150 can work both on soft and hard ground such as soil, mud, sand, gravel, hard rocks and so on.
Characteristics
1. Power can be equipped by electrical motor or diesel engine, as per your project needs;
2. Hoist adopts Frictional clutch mechanism, using powder metallurgy friction plate,with good
performance and long service life; With rapid and convenient hydraulic movable base, reliable
hydraulic position locking, greatly improve the working efficiency before drilled hole, such as
adding and taking off the drill rods ;
3. Hydraulic part: piston rod adopts stern sealing ring(sealing ring for shaft),hydro-cylinder piston adopts Glyd ring(sealing ring for hole), up to international advanced level, with good
sealing performance and durability;
4. Easy to be disassembled, installed and operation.
5. With large rotary torque which are better than the other same level drilling machines. The rotaryunit has different rotating speed grades, which can meet the requirements in different layers and
different drilling projects.
Technical Parameters
| High efficiency xy-150 portable borehole drilling machine |
| 1. Overall parameters |
| Drilling depth | 150m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75 |
| Weight(not include power) | 760kg |
| Dimension | 2000mm*1000mm*1400mm |
| 2. Vertical shaft |
| Rotating speed | 140, 295, 470,790,1010 r/min |
| Feeding stroke | 450mm |
| 3.Hoist |
| Max. single line hoisting capacity | 1600Kg |
| Diameter of wire rope | 12mm |
| 4.Mud pump |
| Type | Horizontal single urn twin-action |
| Rate of flow | 95/77L/min |
| 5.Power |
| Diesel engine | 18HP, 2200r/min |
| Electrical motor | 11KW, 1460r/min |
Other Models of XY series Drilling Rigs:
| Model | Drilling Caliber | Max. depth |
| XY-100 | 75~300mm | 100m |
| XY-130 | 75~300mm | 130m |
| XY-180 | 75~400mm | 180m |
| XY-200 | 75~400mm | 200m |
| XY-600F | 75~500mm | 600m |
Company Details
Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering
better user experience.
Pre-sales service
1. Inquiry and consulting support.
2. Performance testing support.
3. View our Factory
After-sales service
1. Free training how to use the machine in our factory.
2. Engineers available to service machinery overseas
Key Points To Buy
In order to order the suitable product,firstly you need to make sure the following details:
1. Application: What kinds of projects you will work for,Water well,Borehole,Exploration coring,Foundation
Piling or others?
2. Drilling depth: The Max. depth of drilling you hope to achieve?
3. Drilling Caliber: The Min. and Max. hole diameter you estimate?
4. Stratum: Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the soft and hard layers?
