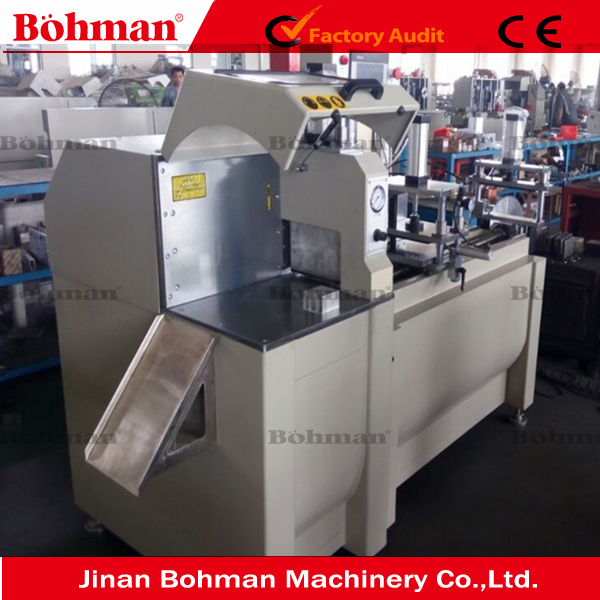

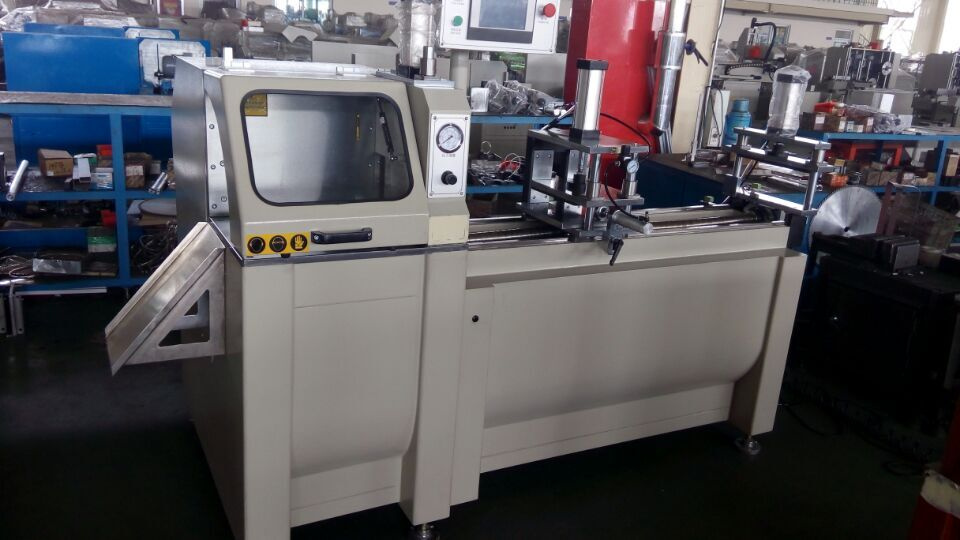

High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile

High Efficient CNC Full Automatic Corner Connector 90 Drgree Cutting Saw for Industrial Aluminum Profile
Price: US $ 8000-12000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: GXSK-450

Product Description

Main Features:

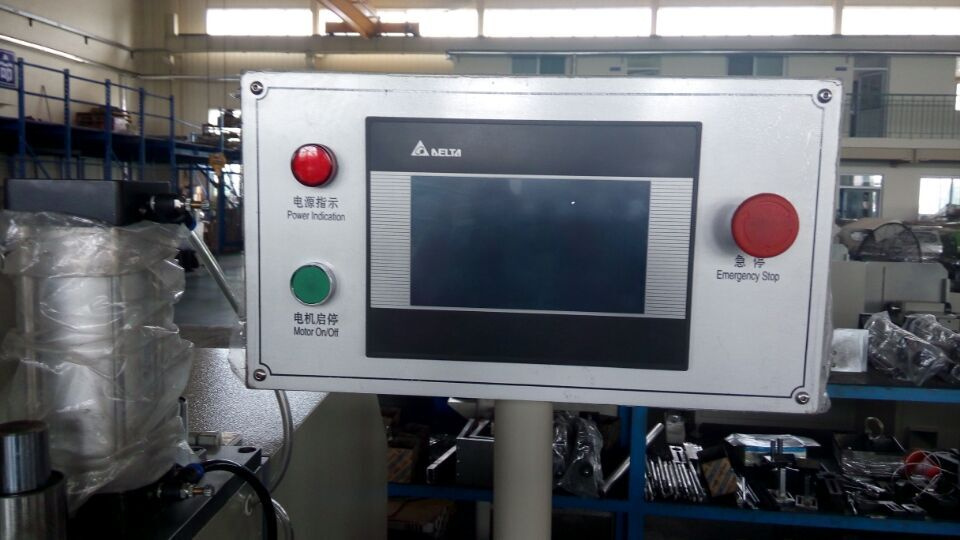

1.CNC system and it can set cutting length ,and auto-feeding and cutting and whitout tailing.

2. Adopt spindle motor direct drive ultra-thin hard alloy carbide tooth saw blade,high transmission efficiency,high
machining precision,high material utilization
3. The kinematic pair of cutting part adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.Stable operation,high precision
4. With the function of automatic counting
5. With the device of spraying,which could improve the processing precision and prolong the service life of saw blade
6. Forward and backward profile butt joint without tailing,when the profile was cutting

Technical Parameters:

Power Supply380V 50Hz

Cutting Motor Power3kw

Motor Rotary Speed2800r/min

Operation Air Pressure0.5-0.8mpa

Auto-feeding Length5-1000mm

Blade SpecificationØ450*Ø30mm*2.6

Blade blade feeding speed0-3m/min

Outside Dimension2050*1200*1650mm(Conveyor:5400mm)

Weight780kg









Jinan Bohman Machinery Co., Ltd., located in West-high Speed Railway Station, Jinan City, Shandong Province, is a high-tech enterprise specialized in the research, manufacture and sale of aluminum-plastic door & window production equipment, high and medium grades of insulating glass production equipment and CNC router. Our products sell very well in China and are exported to many foreign countries and regions. We have many experienced technical engineers and experts who have been worked in this industry for many years. We are familiar with the situation of this industry at home and abroad. We have mastered the latest technique of the similar equipment, and have got strong ability of product research and technique support.

Based on the modern technique, we have produced all kinds of aluminum-plastic door & window production equipment and high and medium grade insulating glass production equipment, with modern technology and stable performance. Our main products are saw cutting equipment, milling equipment, angle seam cleaning equipment, angle joint equipment, various specifications of vertical insulating glass production lines, glass curtain wall production lines, LJT butyl coating machines, GT03 bicomponent rubber spreading machines, compound sealing spacer insulating glass production lines and all kinds of auxiliary equipment.

By virtue of specialized production, good quality and excellent after-sales service, Bohman has got wide recognition and praise from customers at home and abroad. Since the establishment of our company, we have taken "being an honest enterprise, producing the best equipment" as our tenet and taken the quality of our products as the lifeline of our enterprise. We also focus on the research and development of energy saving and environmentally friendly products, try to make the best equipment for manufacturing aluminum-plastic doors & windows and insulating glass and make Bohman a world famous brand.
