Prod Model: |
hz122 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Segment Material: |
Diamond |
Base & Matrix Type: |
Normal, Silent |
Slot Type: |
V Shape, U Shape(Narrow or Wide), Key Hole Shape |
Cutting Condition: |
Dry Cut, Wet Cut |
Perfromance Comparison: |
Sharp Diamond Blade, Wearable Diamond Blade |
Quality Grade: |
High, Medium, Normal |
Customized: |
Customized |
Saw Blade External Diameter: |
600mm |
Product Description

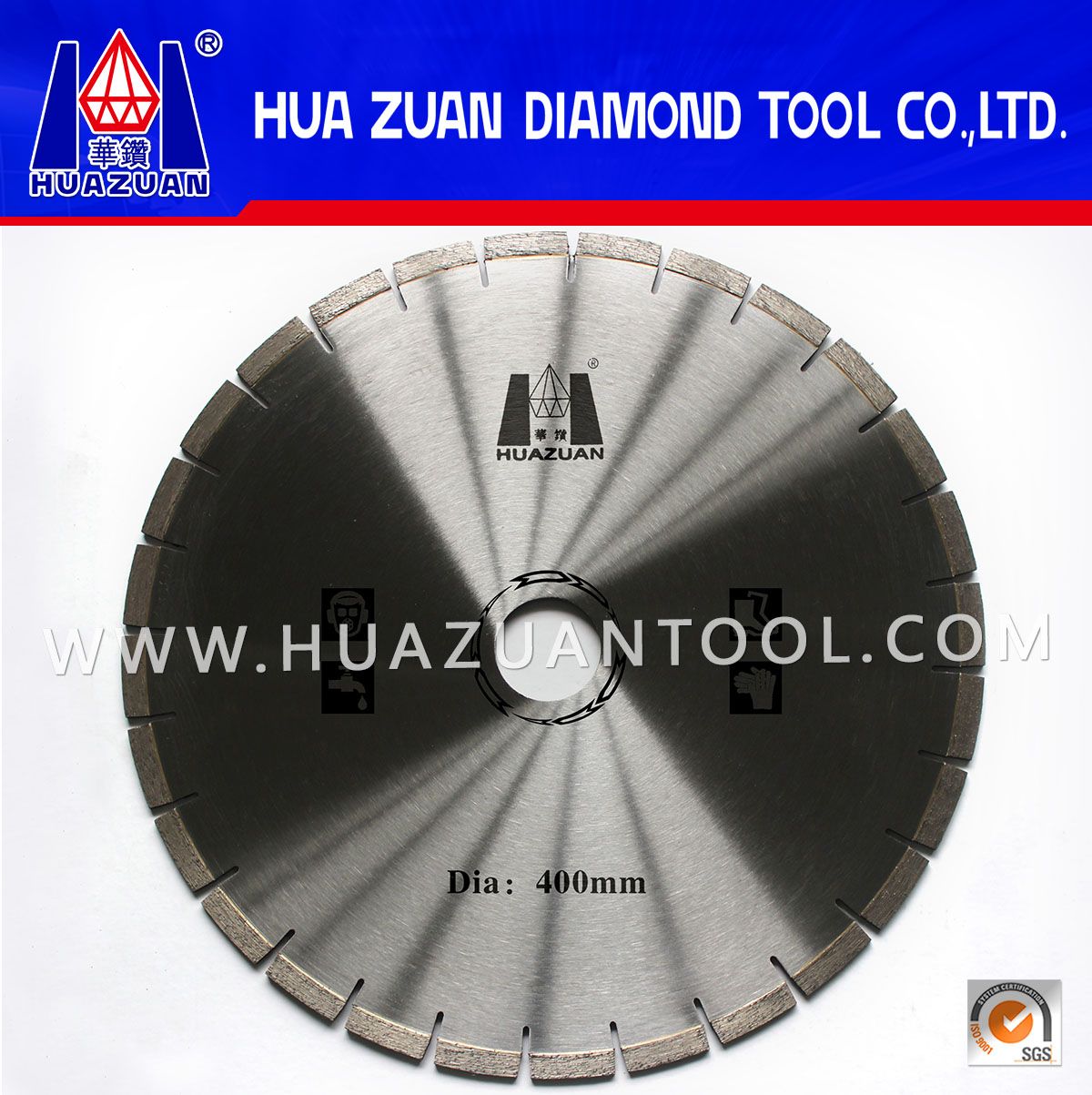

High frequency welding 400mm diamond saw blades with diamond segment for cutting concrete
Diamond Saw Blades' Applications and Features:
Descriptions of goods and Cutting performance | Applications | Suitable for granite ,mable,limestone ,sandstone, basalt , quartz etc stone cutting |
Welding | High-frequency weld , Laser weld , Brazed |
Slot | Narrow slot/Key slot/U slot |
Normal or Silent | Silent blade or Normal blade as you request |
Blade Diameter (General purpose) | 10" - 140" as requested |
Segment Qty | 17- 180 segments as requested |
Segment Height | Dry H10/12mm , Wet H12-20mm |
Inner Hole | 30mm/50mm/60mm |
Type | Continuous rim & Segmented saw blade |
More Sharpness | Diamond saw blade could survive from any destructive testing, the linear cutting speed reaches 7+ meter/min easily. |
Longer Life-Span | Diamond saw blade have 50%+ longer life-span than common blades. For example: Asphalt cutting blade life-span reaches 88.5 square meter. |
High CPR | We are keep trying to provide the best possible service for our customers, and offering the best world top quality products with as low as possible price. |
Effectively | Diamond saw blade reduces the usage of electricity and the noise level during the op |
Diamond Saw Blades Specifications:
Out Diameter | Bore Diameter(mm) | Dimension of teeth(mm) | NO. of Teeth |
Inch | mm | Thickness | Height |
10'' | 250 | 50/60 | 2.6/2.8 | 8/10/12 | 17 |
12'' | 300 | 50/60 | 2.8/3.0 | 8/10/12 | 21 |
14'' | 350 | 50/60 | 3.0/3.2 | 8/10/12 | 24 |
16'' | 400 | 50/60 | 3.4/3.6 | 8/10/12 | 28 |
18'' | 450 | 50/60 | 3.8/4.2 | 8/10/12 | 32 |
20'' | 500 | 50/60 | 4.0/4.2 | 8/10/12 | 36 |
22'' | 550 | 50/60 | 4.6/4.8 | 8/10/12 | 40 |
24'' | 600 | 50/60 | 4.6/4.8 | 8/10/12 | 42 |
26'' | 650 | 50/60 | 5.0/5.2 | 8/10/12 | 46 |
28'' | 700 | 50/60 | 5.0/5.2 | 8/10/12 | 50 |
30'' | 750 | 50/60 | 5.2/5.6 | 8/10/12 | 54 |
32'' | 800 | 50/60/80 | 5.5/6.0 | 8/10/12 | 57 |
36'' | 900 | 50/60/80/100 | 6.0/6.8 | 12/13/15 | 64 |
40'' | 1000 | 50/60/80/100 | 6.0/7.0 | 12/13/15 | 70 |
48'' | 1200 | 50/60/80/100 | 6.5/7.5 | 12/13/15 | 80 |
52'' | 1300 | 50/60/80/100 | 7.0/7.6 | 12/13/15 | 88 |
56'' | 1400 | 50/60/80/100 | 8.2/8.8 | 12/13/15 | 92 |
64'' | 1600 | 50/60/80/100 | 8.4/9.0 | 12/13/15/20 | 108 |
72'' | 1800 | 50/60/80/100 | 9.1/9.7 | 12/13/15/20 | 120 |
80'' | 2000 | 50/60/80/100 | 10.5/11 | 12/13/15/20 | 128 |
88'' | 2200 | 50/60/80/100 | 10.5/11 | 12/13/15/20 | 132 |
100'' | 2500 | 50/60/80/100 | 11/12 | 12/13/15/20 | 140 |
120'' | 3000 | 50/60/80/100 | 11.5/12.5 | 12/13/15/20 | 160 |
140'' | 3500 | 50/60/80/100 | 12/12.5 | 12/13/15/20 | 180 |
Other specifications are available upon request. |
