| Prod Model: |
PFT0439 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
65mn Steel |
| Cutting For: |
Granite, Hard Concrete and Bricks |
| Processing: |
Cold Pressed/ Hot Pressed |
| Surface Treatment: |
Spray Paint |
| Graininess: |
300# |
| Shape: |
Round |
| Kind: |
Diamond Wheel |
| Manufacturing Arts: |
Electroplating |
| Usage: |
Stone Cutting |
| Specification: |
5inch |
Product Description
Usage:1. It is widely used for cutting the stones ,porcelain ,concrete ,pavement bricks and asphalt.
2. Diamond powders are sintered to form the blade with extended life and better cutting results.
3. It is used with most types of angle grinders and marble cutting machines
Specification| Sintered Segmented Diamond Blade |
| Application:Used for cutting granite, marble, bricks, concrete and other stones. |
| Diameter (D) | Bore(H) | Thickness | Segment Size | Segment No. |
| Inch | MM | (T) | (H) | (L) |
| 4" | 105 | 16/20/22.23 | 1.2 | 1.8 | 7 | 35 | 8 |
| 4.3" | 110 | 16/20/22.23 | 1.4 | 1.9 | 7 | 32.3 | 9 |
| 4.5" | 115 | 20/22.23 | 1.4 | 1.9 | 7 | 38.3 | 8 |
| 5" | 125 | 20/22.23 | 1.4 | 1.9 | 7 | 37.5 | 9 |
| 6" | 150 | 20/22.23 | 1.4 | 1.9 | 7 | 33.5 | 12 |
| 7" | 180 | 22.23/25.4/30 | 1.6 | 2.2 | 7 | 35 | 14 |
| 8" | 200 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7 | 39.2 | 14 |
| 9" | 230 | 22.23/25.4/30/50 | 1.8 | 2.4 | 7.2 | 34.4 | 16/18 |
| 10" | 250 | 22.23/25.4/30/50 | 2.2 | 3 | 7.5 | 37 | 16/18 |
| 12" | 300 | 22.23/25.4/30/50 | 2.2 | 3.2 | 7.5 | 35 | 22 |
| 14" | 350 | 22.23/25.4/30/50 | 2.2/2.4 | 3.2 | 7.5 | 40 | 24 |
| Continuous Rim Diamond Blade |
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting. |
|
|
|
|
|
|
| Diameter (D) | Bore | Segment Height | Segment Thickness |
| Inch | MM | Inch | MM |
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10 | 1.8 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10 | 1.9 |
| 5" | 125 | 7/8" | 22.23 | 7/10 | 1.9 |
| 6" | 150 | 7/8" | 22.23 | 7/10 | 2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.2 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7/10 | 2.4 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.2 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7/10 | 3.4 |

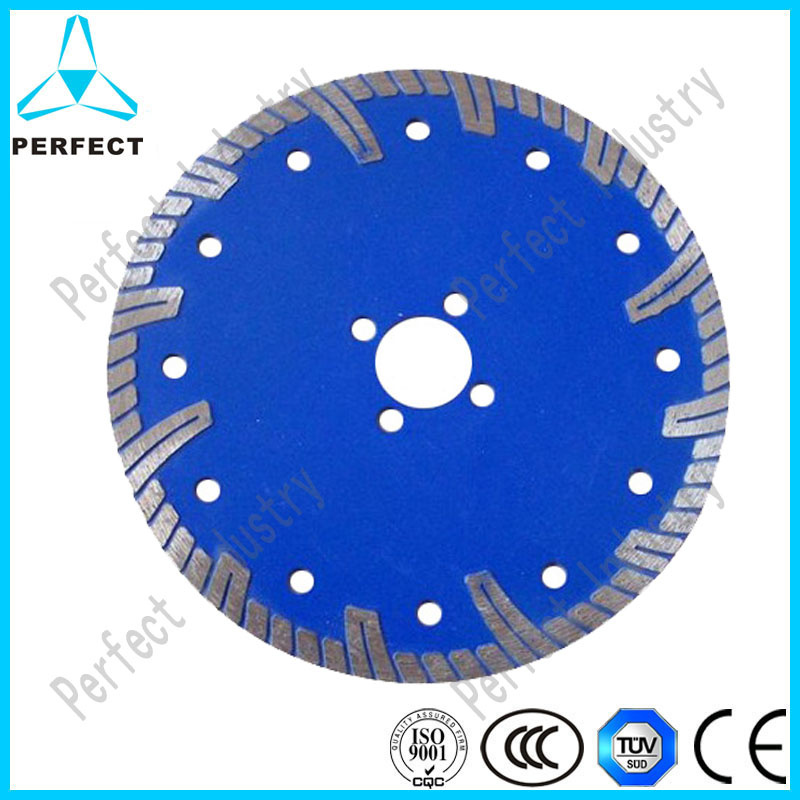

| Strength Turbo Diamond Blade |
| Application:Used for cutting granite, marble,Porcelain and other stones, with WET cutting. |
| Diameter (D) | Bore | Segment Height | Segment Thickness |
| Inch | MM | Inch | MM |
| 4" | 105 | 5/8" 7/8" | 16/20/22.23 | 7/10/12 | 2 |
| 4.3" | 110 | 5/8" 7/8" | 16/20/22.23 | 7/10/12 | 2 |
| 4.5" | 115 | 7/8" | 22.23 | 7/10/12 | 2.2 |
| 5" | 125 | 7/8" | 22.23 | 7/10/12 | 2.3 |
| 6" | 150 | 7/8" | 22.23 | 7/10/12 | 2.2 |
| 7" | 180 | 7/8"/1 | 22.23/25.4 | 7/10/12 | 2.4 |
| 8" | 200 | 7/8"/1 | 22.23/25.4 | 39367 | 2.6 |
| 9" | 230 | 7/8"/1 | 22.23/25.4 | 7.5/10/12 | 2.8 |
| 10" | 250 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 7.5/10/12 | 3 |
| 12" | 300 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.2 |
| 14" | 350 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.4 |
| 16" | 400 | 7/8"/1-1/5"/2" | 22.23/25.4/30/50 | 8/10/12 | 3.6×8.0 |
Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
Shipping 1. FedEx/DHL/UPS/TNT for samples
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
How to Contact Us?
Send your Inquiry Details in the Below for sample, Click "Send" Now!
Why Choose Our Products?
1) ISO 9001,Gold Supplier certificated
2) Monthly Production Capacity -- 1 Million Pcs
3) All goods examined before delivery by 10 QC staff
4) Prompt Reply Within 12 Hours
Xuzhou Perfect Industry Technology Co., Ltd is a professional Manufacturer of high quality of
Different kinds of cutting tools, Including drill bit, screw tap, screw dies, end mills, reamers, saw blade,
etc.
With 6 years' development, we have a professional technical team; Advanced machinery. A professional
Engineering team is dedicated to ensuring The prompt delivery of our new products. In order to win a
Large market share, We regularly introduce new products and upgrade older series.
We also provide OEM/ODM services according to customers' requirements. Our strength consists of
Innovation, high-quality products, superior services And competitive prices. Please contact us if you are
Interested in any of our Product.
Xuzhou Perfect Industry Technology Co., Limited relies on continous technical improvement and
Persistent high performance products. Therefore, the long-term development guideline of the company
Is emphasizing on the quality and technical investment.

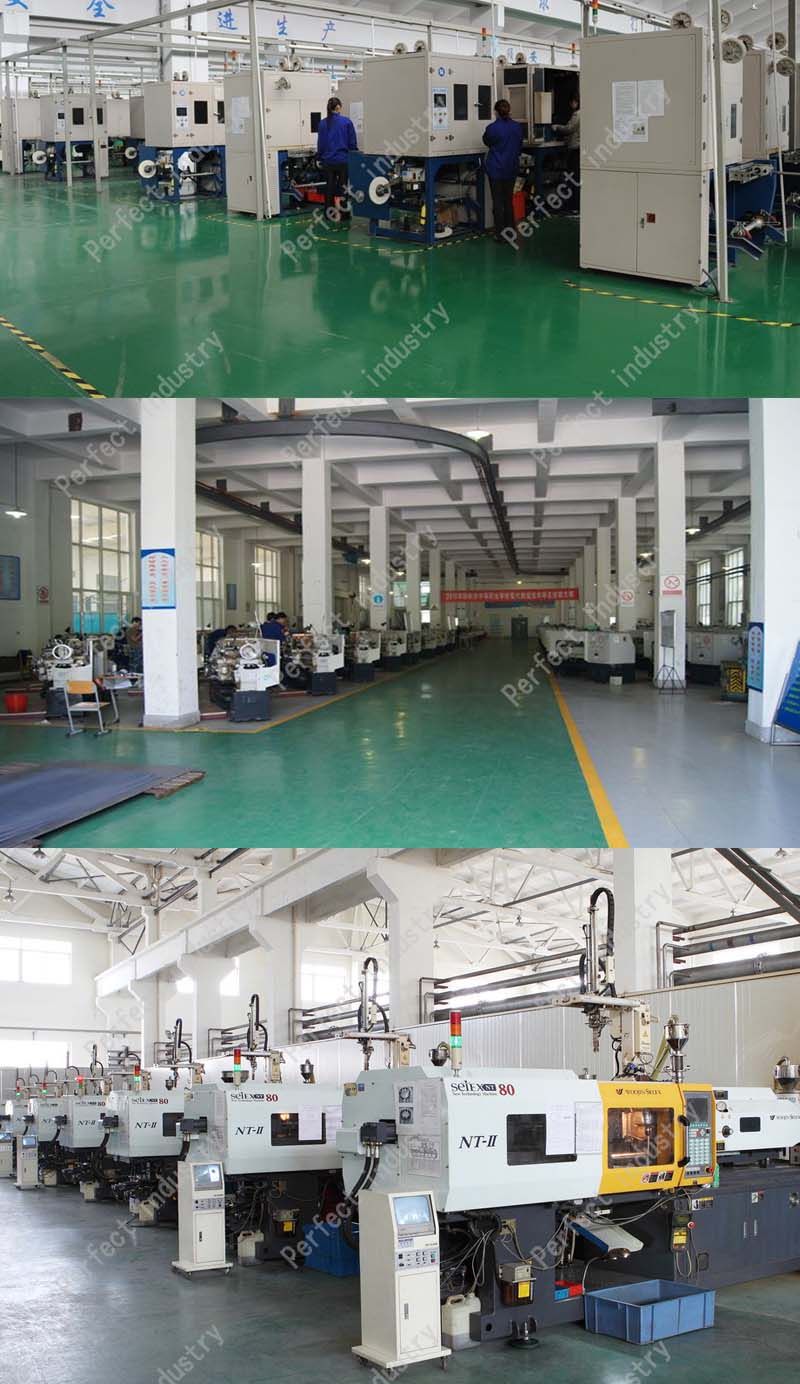

The company owns advanced CNC numerical control system production line and treatment
Technique, what is more, it also has advanced testing facilities with material analysis, mechanics
Check, numerical control cutting check, etc.
Our products are favored by clients in Europe, America and other over 30 countries. We have been
Becoming the leading manufacturer wordlide in capacity and technology.
