| Prod Model: |
YN27C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow |
| Gross Weigh: |
27kgs |
| Function: |
New |
| Hole Diameter: |
28-42mm |
| Mining Object: |
Coal Machinery |
| Usage: |
Ore |
| Power Type: |
Gasoline |
| Condition: |
New |
| Type: |
Drilling Machine |
Product Description
1 YN27 petrol rock drill
2 max drilling depth: 6m
3 drilling hole diameter: 28-42mm
4 Less of easy-to-damage-par

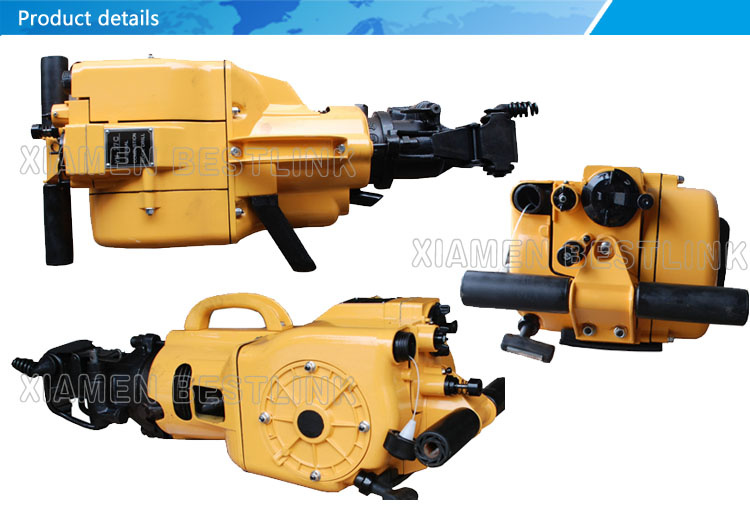

YN27 series petrol rock drill
The Internal Combustion Rock Drill Type YN27 J is a very efficient machine with the characters of the structure is very compact, less of the- easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plumbum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock drilling.
| Technical specifications |
| Weight of main machine | 27kg |
| Overall dimensions(L*W*H) | 746*315*229mm |
| Type of engine | Single cylinder, air cooled two strokes |
| Cylinder diameter*stroke of piston | Φ58*70mm |
| Rotation speed of engine | ≥2450rpm |
| Displacement of engine piston | 185cm³ |
| Type of carburetor | hand needle valve, floatless type |
| Ignition system | controllable silicon, contactless system |
| Drilling speed (mean value of five holes) | ≥250mm/min |
| Drilling hole diameter | Φ28-42mm |
| Max drilling depth | 6m |
| Fuel consumption | ≤0.12L/m |
| Tank capacity | ≥1.5liter |
| Mixture ratio of gasoline and lubrication oil (in volumes) | 12:01 |
| Drill rod and breaker shank | Hex22*108mm |
| Rotating speed of drill rod | ≥200rounds/min |
| Clearance of spark plug | 0.5-0.7mm |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
