High Performance Saw Cutting Machine CS350 Circular Saw
| Price: |
US $ 1330-1400/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CS350 |
| Max. Blade Size: |
350mm |
| Round Steel@90°: |
120mm |
| Square Steel@90°: |
140×100mm |
| Round Steel@45°: |
105mm |
| Square Steel@45°: |
100×100mm |
| Blade Speed @ 50Hz: |
18,36rpm |
| Vice Opening: |
145mm |
| Motor Power: |
750W1HP/1.3kw1.7HP(3pH) 1.1kw/1.5HP(1pH) |
| Drive: |
Gear |
| Product Name: |
High Performance Saw Cutting Machine CS350 Circula |
| Type: |
Circular Sawing Machine |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Horizontal Band Sawing Machine Type: |
Mini Hobby Saw |
| Saw Feed Direction: |
Circular |
| Controlling Mode: |
Gear |
Product Description
High Performance Saw Cutting Machine CS350 Circular Saw
The main performance characteristics: - The HSS saw blade of our circular saw is highly efficient and durable,
- The 24V low-voltage controlled hand switch is convenient for operation,
- The double clamp structure can quickly clamp materials and rotate 45°from side to side for cutting;
- Our circular saw features a double speed motor and with low noise can slow down through worm and gear;
- The safety hood of saw blade opens or closes according to the cutting needs, making it safety;
- The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the work piece;
- Vice complete with anti-burr device, Movable head 45°right and left;
- Reduction unit in oil bath, Membrane pump for coolant.,
Application:For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.Product main technical parameters:| Model | CS-350 |
| Max. blade size | 350mm(13.8″) |
| Machining capacity | Round steel@90° | 120mm(4.7″) |
| Square steel@90° | 140×100mm(5.5″×4″) |
| Round steel@45° | 105mm(4.1″) |
| Square steel@45° | 100×100mm(4″×4″) |
| Blade speed @ 50HZ | 18,36rpm |
| Vice opening | 145mm(5.7") |
| Motor power | 750W1HP/1.3KW1.7HP(3PH)
1.1KW1.5HP(1PH) |
| Drive | Gear |
| Package size | 98×62×95cm(body)
77x58x47cm(stand) |
| NW/GW | 190/212kg |

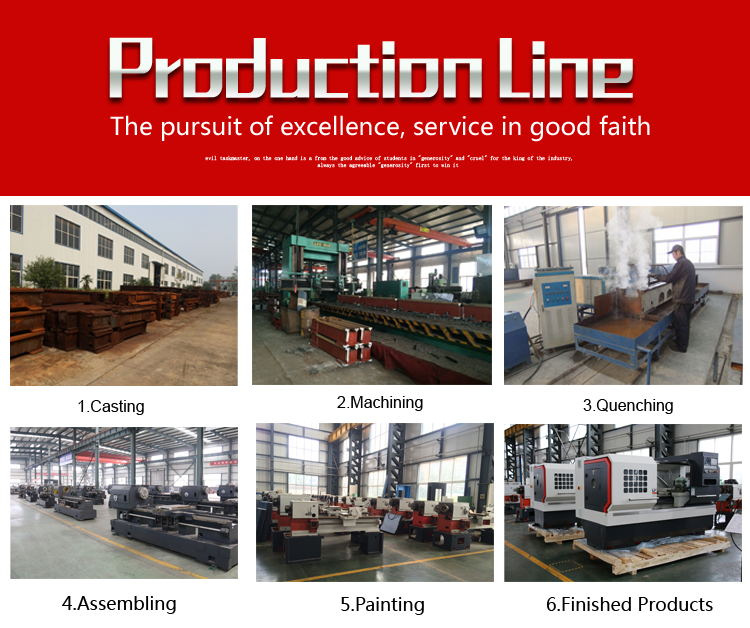

Product Line:
High Performance Saw Cutting Machine CS350 Circular Saw
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
Company Show:
Certifications:
FAQ:
FAQ:
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
Contact us:
Founded in 1992, We, Tengzhou Luzhong Machine Tool Co., Ltd., is a large enterprises with glorious chievement and long history, covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
We have been providing all kind of CNC milling machine, vertical machining center, lathe machines, drilling machines and others CNC mechanical equipment, products, to all sectors of the national economy for more than 20 years. And our machines are very popular overseas, and they are exported to more than 50 countries and zones, and our machines are loved and welcomed by customers.
In the deepening of economic reform, in accordance with the requirements of the overall planning, we enhance our traditional manufacturing industry, so we build the Shandong CNC Machine Tool Production Base in Jiyang city, Shandong Province. In this production base, we produce vertical machining center, CNC lathe, CNC milling, assembly production line, machine tools and so on, it will be the world's first-class modern manufacturing enterprises.
In order to strengthen our own technology, research and development advantages, we, Tengzhou Luzhong Machine Tool Co., Ltd, founded our design company -Luzhong Design Co., Ltd in 2004, which specialize in the design of CNC machine tools.
Our company formed a good win-win relationship with mechanical and electrical companies in provinces, complete sets of companies and foreign agents. Not only in the country Company formed a mature sales network not only in the country, but also our products are exported to South America, Africa, the Middle East, Southeast Asia and other countries, and are trusted and praised by vast number of users. Our company focuses on strict and effective management, product quality and service is our eternal pursuit of the theme. Our company will always be the spirit of "the pursuit of excellence, sincere service" purposes, and strive to provide users with high-quality products and fast, thoughtful after-sales service.
"Regard the quality as life, undertake the heavy responsibility ", with your support, we will get big progress. Let us join hands to create a better future!
'The pursuit of excellence in service'
