Diamond Milling Machine WNCK700 CNC Vertical Lathe
| Price: |
US $ 43550/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
WNCK700 |
| Product Name: |
Diamond Milling Machine WNCK700 CNC Vertical Lathe |
| Max Swing Over Bed: |
700mm |
| Max Cutting Diameter: |
650 |
| Diameter Of Hydraulic Chuck: |
500mm |
| Spindle Speed: |
50-1000rpm |
| Cutting Speed: |
0.1-1000mm/min |
| Vertical Moving Distance Of Tool Rest: |
550mm |
| Horizontal Moving Distance Of Tool Rest: |
420mm |
| Fast Moving Speed Of X Axis: |
15000mm/min |
| Main Motor Power: |
11/15kW(Low speed and high torque output, 210NM) |
| Processing Accessory: |
Chuck CNC Lathe |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Type: |
wheel repair lathe |
| Guide Rail: |
vertical CNC lathe |
| Tool Holder: |
special made |
| Power Source: |
CNC |
Product Description
Diamond Milling Machine WNCK700 CNC Vertical Lathe
The main performance characteristics:
1. Repair 5-28 inch alloy wheel
2. SYNTEC CNC control system
3. Detection Touch Probe ( Pioneer Sensing Probe)
4. Frequency conversion stepless speed
5. Manual customized long jaw chuck

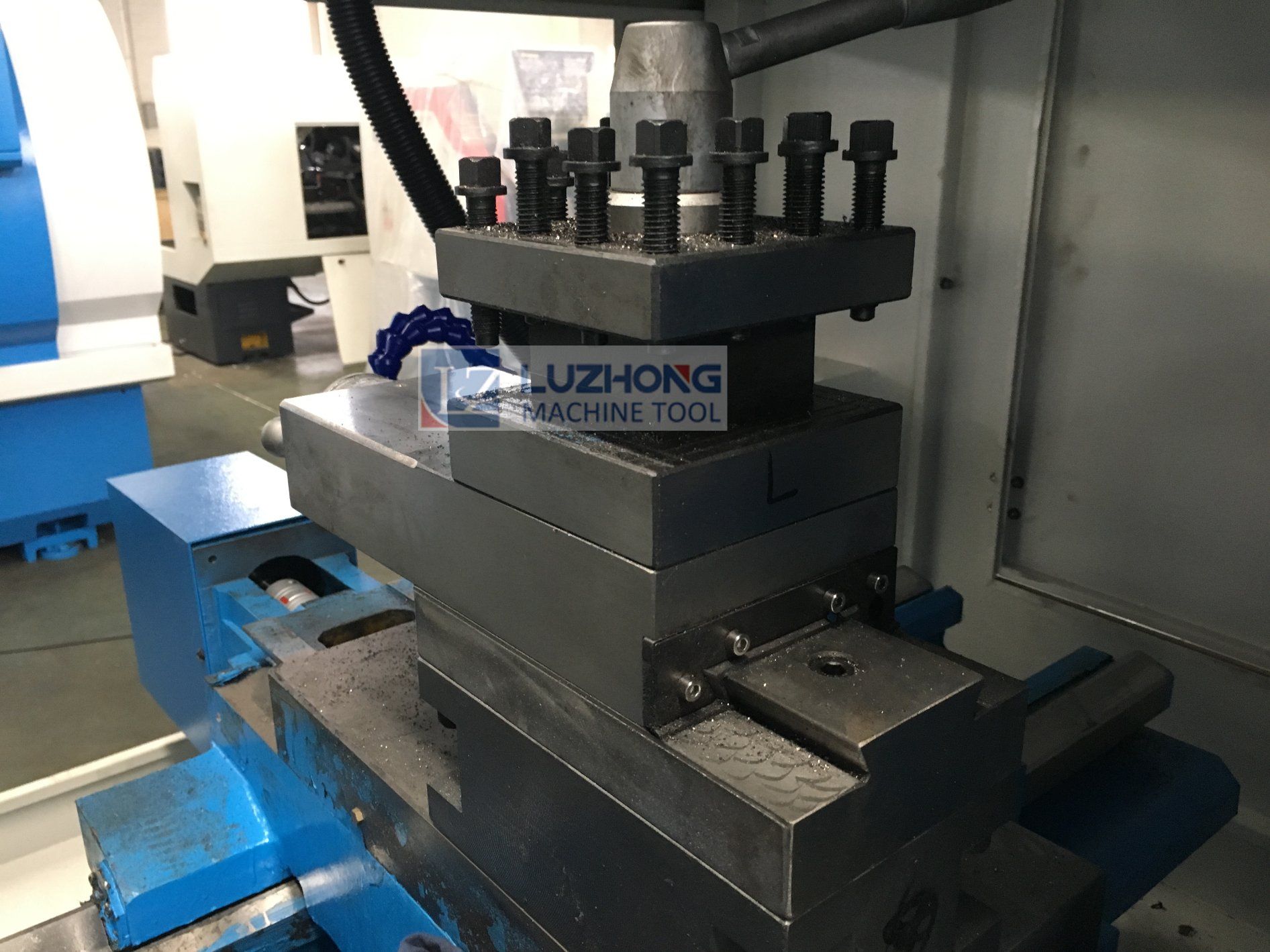

6. 4 position tools
7. Automatic electronic pump lubrication, Coolant system, Lighting system
8. Full Enclose(Security Guard Door);
9. Specific Digital Optimization Software;
English version manual instruction & Training Video CD;
One-year warranty
Rim repair machine specifications:
| Main Technical parameters | AWR2840 |
| Max. swig over bed | Φ720mm |
| Max. swig over cross slide | Φ570mm |
| X/Z axis Travel/Stroke | 350mm/750mm |
| Length of the guide rail | 1320mm |
| Width of the guide rail | 330mm |
| Size of the three-jaw chuck | 12inch (320mm) |
| Range of spindle speed | 50-2000rpm |
| Spindle bore | Φ52mm |
| Taper of spindle bore | MT5 |
| Max. size of tool post | 25×25mm |
| Tool holder | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
| Motor power | 7.5KW |
| Packing size(length×width×height) | 2390 mm×1750mm×2150mm |
| Net weight | 2650kgs |

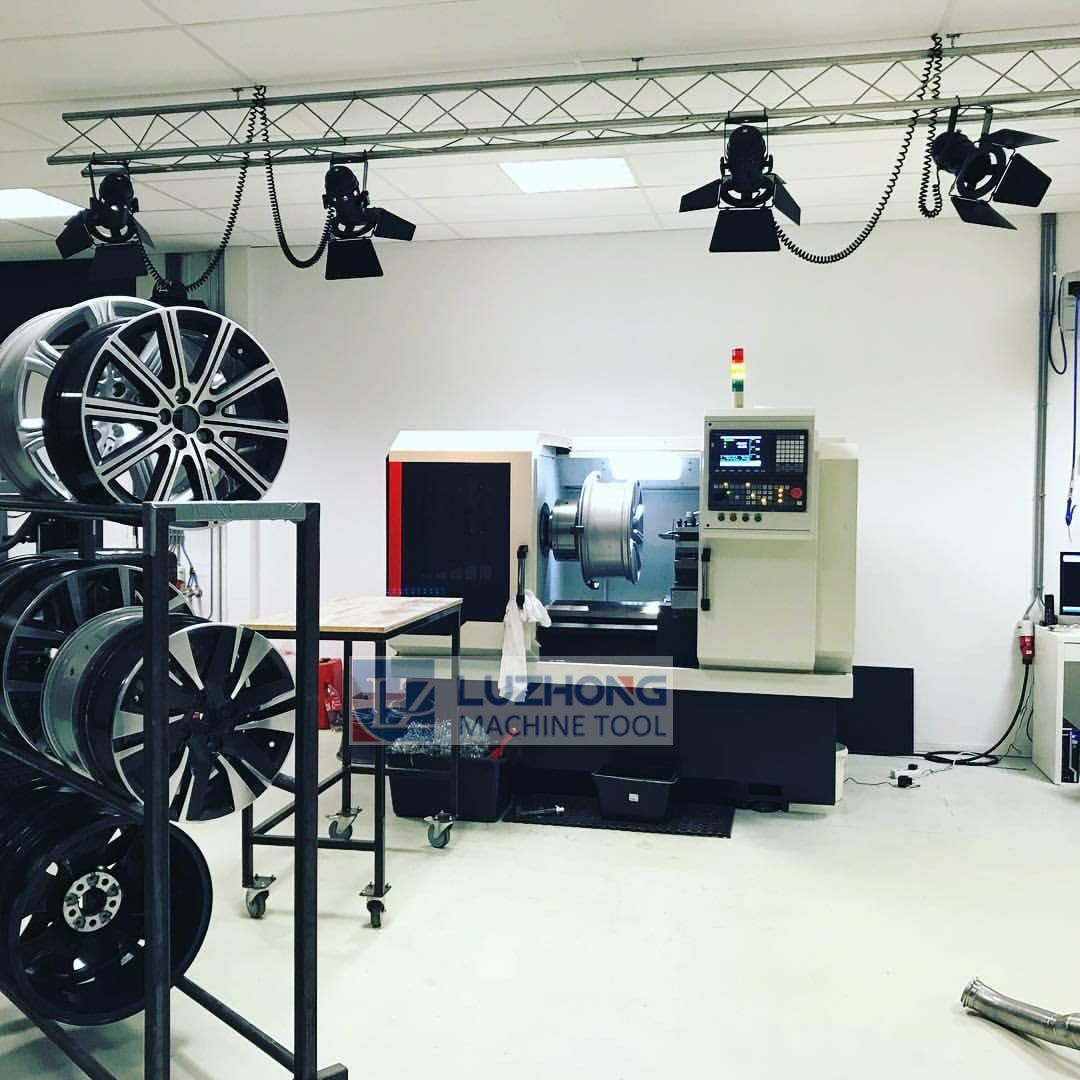

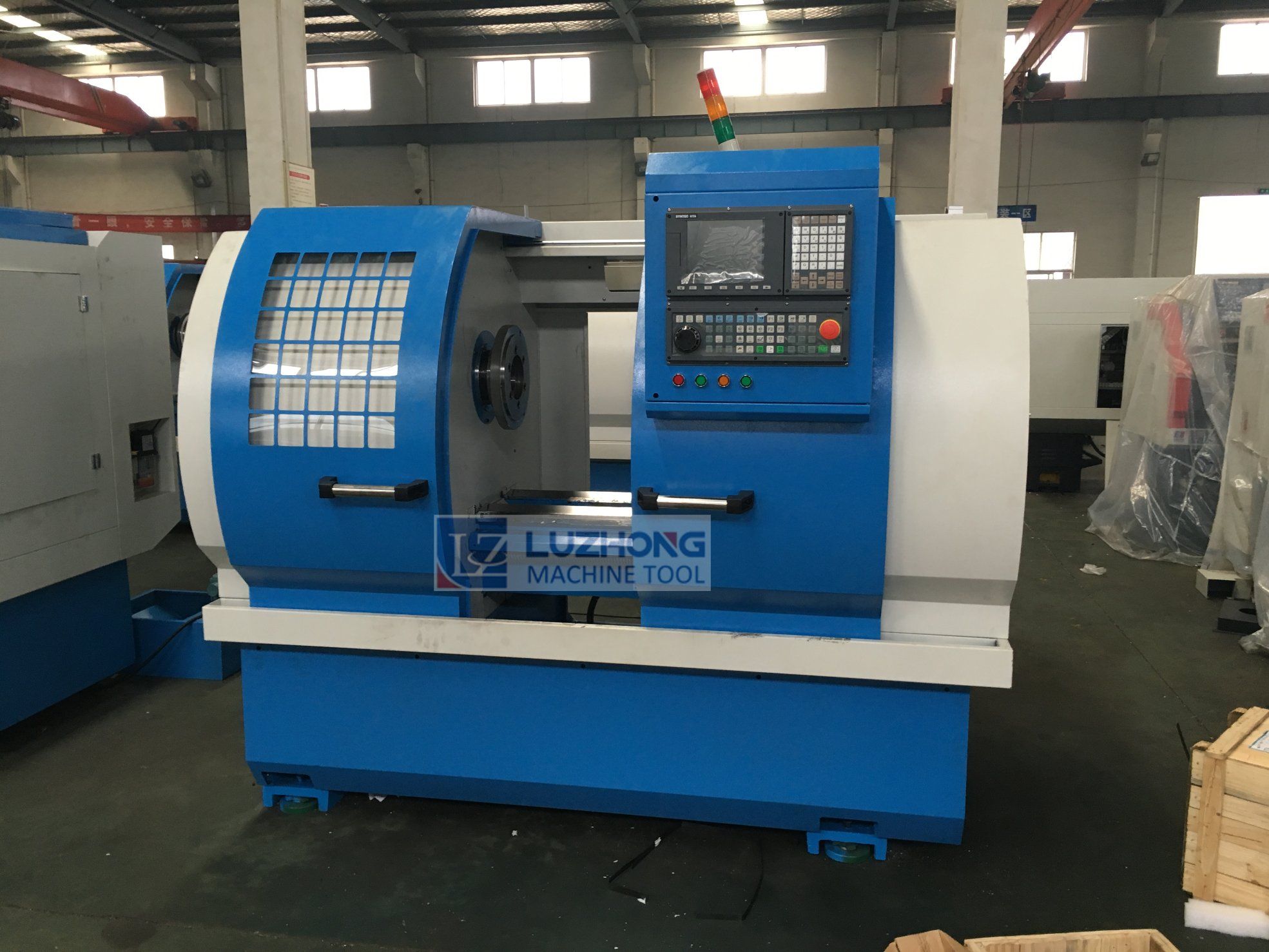

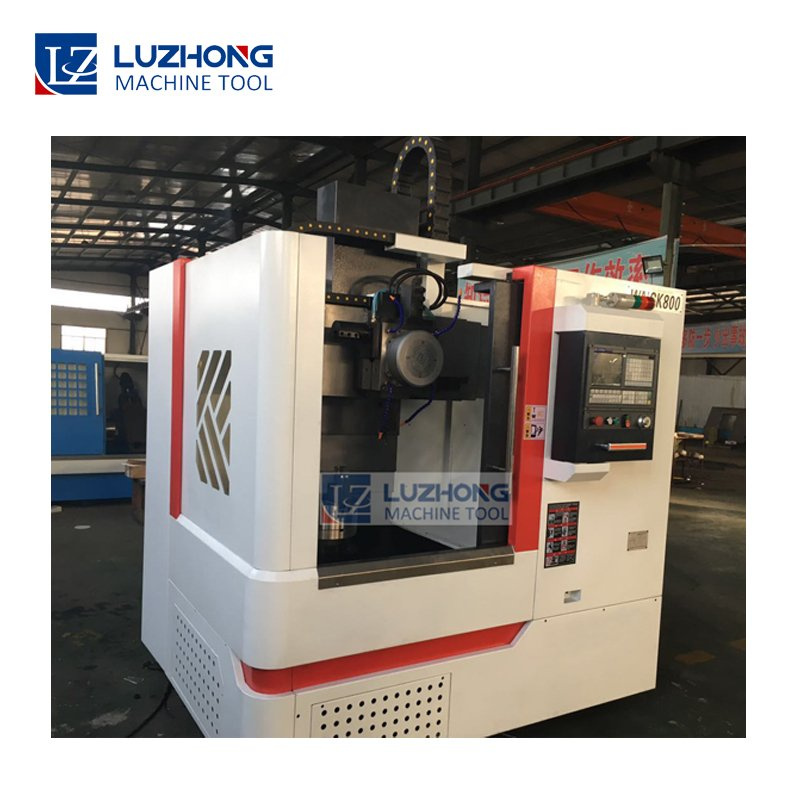

More Photos :
Company Show :
Certifications:
Contact us :
Selina Chen
Sales Department
Tengzhou Luzhong Machine Tool Co.,Ltd
Tel:+86-0632-5083096
Fax:+86-0632-5083086
Mob.86-15163257518
https://luzhongmachine.en.alibaba.com/
24 Hours service can be available at any time .
