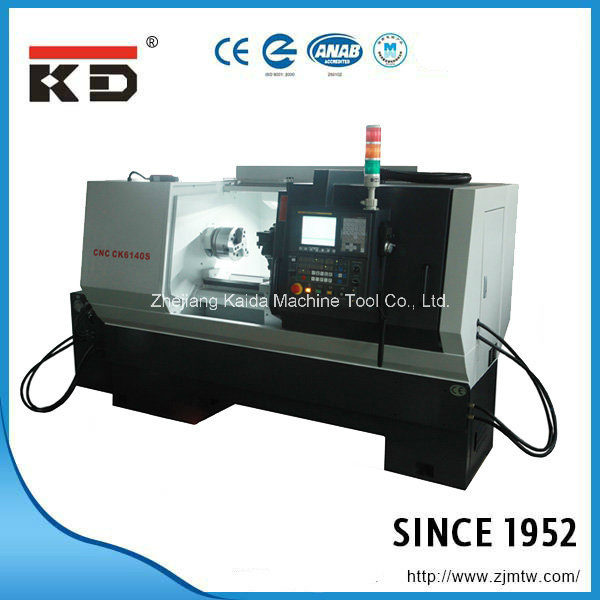

| Prod Model: |
CK6140S/1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3.7kw |
| Spindle Bore: |
52mm |
| Net Weight: |
1950kg |
| Swing Over Bed: |
400mm |
| Max.Length Workpiece: |
1000mm |
| Packing Size: |
3000X1440X1850(mm) |
| 3-Jaw Chuck Size: |
200mm |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
| Processing Accessory: |
Metal Part Machining |
| Tool Holder: |
4-Way Tool Post |
Product Description
Specifications:
| Max.swing over bed | 400mm(16'') |
| Max.swing over slide | 225mm(9'') |
| Bed width | 316mm(12.6'') |
| Max.length of workpiece | 1000mm(40'') |
| Spindle nose | C6 |
| Spindle bore | 52mm(2'') |
| Taper bore in spindle nose | MT.6 |
| Motor size | 3.7Kw |
| Net weigth | | ITEMS | CK6130S | CK6132S /CK6136S | CK6140S |
Over bed | Ø 300mm(12" ) | Ø 360mm(14" ) | Ø 400mm(15.7" ) |
Over carriage | Ø 135/Ø 100mm
(Gang tools) | Ø 180/Ø 100mm
(Gang tools) | Ø 225/Ø 150mm
(Gang tools) |
Maximum turned length | 500 mm | 500/750/1000mm | 500/750/1000mm |
Max. turning length | 460mm | 450/700/950 mm | 450/700/950 mm |
Spindle nose | D4 or A2-5 | C5 | C6 |
Spindle bore | Ø 38 or Ø 43mm | Ø 40mm | Ø 52mm | | Cone hole diameter and taper of spindle hole | MT. No. 5
or 40° Taper | MT. No. 5 | MT. No. 6 |
Steps of spindle speed(Manual) | Variable |
Range of spindle speed | 200~3500r/min | 200~2800r/min |
Rapid feed for Axis Z | 10m/min |
Rapid feed for Axis X | 8 m/min |
Max. travel of Axis Z | 460mm(18" ) | 490/740/990 mm |
Max. travel of Axis X | 165/260mm
(Gang tools) | 215/295mm
(Gang tools) | 235/295mm
(Gang tools) |
Min. input | 0.001mm |
Tool post stations | Gang tool post or power tool post | 4-ways or 6-ways or gang tools |
Tool cross section | 16× 16 mm | 20× 20 mm |
External diameter | Ø 50mm | Ø 60mm |
Taper of bore | MT. No. 3 | MT. No. 4 |
Max. Traverse | 130 mm | 120 mm |
X/Z motor torque | 3.6/4.7Nm | 3.6/4.7Nm |
Power of main motor | 3KW(4HP) | 3.7KW(5HP) | 3.7KW
(Extra 5.5KW) |
Power of cooling pump | 75W |
Overall dimensions(L× W× H) | 1500× 945× 1380mm | (1870, 2120, 2370)× 1200× 1415mm |
Net weight | 1100kg | 1500, 1700, 1900kg | 1600, 1800, 2000kg |
|
Standard accessries:
1.Fanuc 0i MATE TD control,FANUC servo motors for Z and X axis;
2.Invertor spindle;
3.200mm manual 3-jaw chuck,manual tailstock;
4.Half cover;
5.Working light;
6.Cooling system;
7.Tool box with wrenches,spanners etc.
Optional accessories:
1.SIMENS 808DA control;
2.200mm hydraulic chuck and tailstock;
3.200mm hydraulic chuck and tailstock;
3.Full cover;
4.CE configuration
Packing:
1.Sea worthy wooden case with IPPC
2.Size:3000*1440*1850(mm)
3.Weight:1950/2180kg
Warranty:
Factory supplys easy worn-out parts during one year under EXW in free of charge
Delivery: around 45 days after deposit
