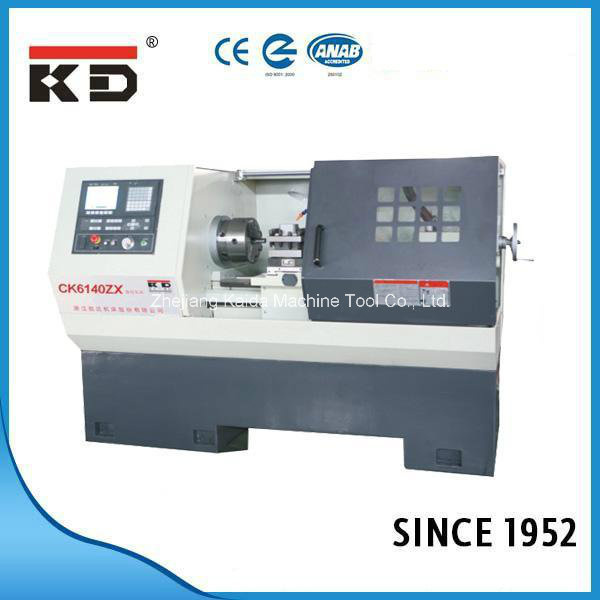

| Prod Model: |
CK6146ZX/1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
5.7kw |
| Spindle Bore: |
80mm |
| Net Weight: |
2770kg |
| Swing Over Bed: |
460mm |
| Max.Length Workpiece: |
1500mm |
| Packing Size: |
3000X1450X1900(mm) |
| 3-Jaw Chuck Size: |
250mm |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
| Processing Accessory: |
Metal Part Machining |
| Tool Holder: |
4-Way Tool Post |
Product Description
Specifications:
| Max.swing over bed | 460mm(18'') |
| Max.swing over slide | 240mm(9.6'') |
| Bed width | 336mm(13.4'') |
| Max.length of workpiece | 1500mm(40'') |
| Spindle nose | D8 |
| Spindle bore | 80mm(3.2'') |
| Taper bore in spindle nose | MT.7 |
| Motor size | 5.5Kw |
| Net weigth |
ITEMS | CK6140ZX | CK6146ZX | CK6150ZX |
Over bed | Ø 400mm | Ø 460mm | Ø 500mm |
Over carriage | Ø 210/Ø 165mm
(Gang tools) | Ø 240/Ø 205mm
(Gang tools) | Ø 280/Ø 245mm
(Gang tools) |
Maximum turned length | 750/1000/1500mm |
Max. turning length | 600/850/1350 mm |
Spindle nose | D8 |
Spindle bore | Ø 80mm |
Cone hole diameter and taper of spindle hole | MT. No7 | | Steps of spindle speed (Manual) | Variable |
Range of spindle speed | 100~2000r/min |
Rapid feed for Axis Z | 10m/min |
Rapid feed for Axis X | 8 m/min |
Max. travel of Axis Z | 710/960/1460 mm |
Max. travel of Axis X | 250/330mm(Gang tools) |
Min. input | 0.001mm |
Tool post stations | 4-ways or 6-ways or gang tools |
Tool cross section | 25× 25 mm |
External diameter | Ø 75mm |
Taper of bore | MT. No. 4 | MT. No. 5 |
Max. Traverse | 130mm |
Power of main motor | 5.5KW(Extra 7.5KW) |
Power of cooling pump | 75W |
Overall dimensions(L× W× H) | 2060/2310/2790× 1180× 1500mm |
Net weight | 2100, 2250, 2800Kg | 2200, 2350, 2900kg |
|
Standard accessries:
1.Fanuc 0i MATE TD control,FANUC servo motors for Z and X axis;
2.Invertor spindle;
3.250mm manual 3-jaw chuck,manual tailstock;
4.Half cover;
5.Working light;
6.Cooling system;
7.Tool box with wrenches,spanners etc.
Optional accessories:
1.SIMENS 808DA control;
2.250mm hydraulic chuck and tailstock;
3.250mm hydraulic chuck and tailstock;
3.Full cover;
4.CE configuration
Packing:
1.Sea worthy wooden case with IPPC
2.Size:2500*1450*1900(mm)
3.Weight:2770/3220kg
Warranty:
Factory supplys easy worn-out parts during one year under EXW in free of charge
Delivery: around 45 days after deposit
