High precision compact power press with CE Standard
| Price: |
US $ 11000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
AKA-45 |
| Control System: |
Delta |
| Color: |
according customer's request |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
High Precision |
Product Description

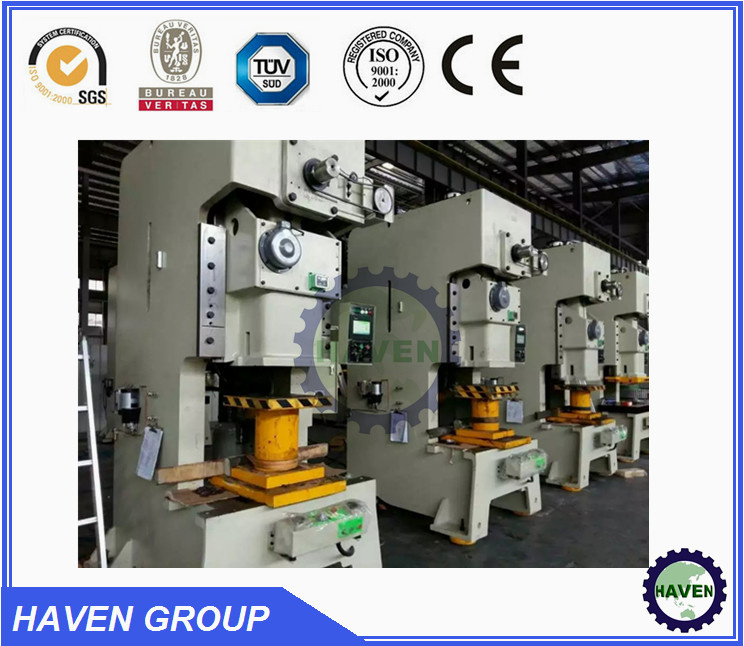

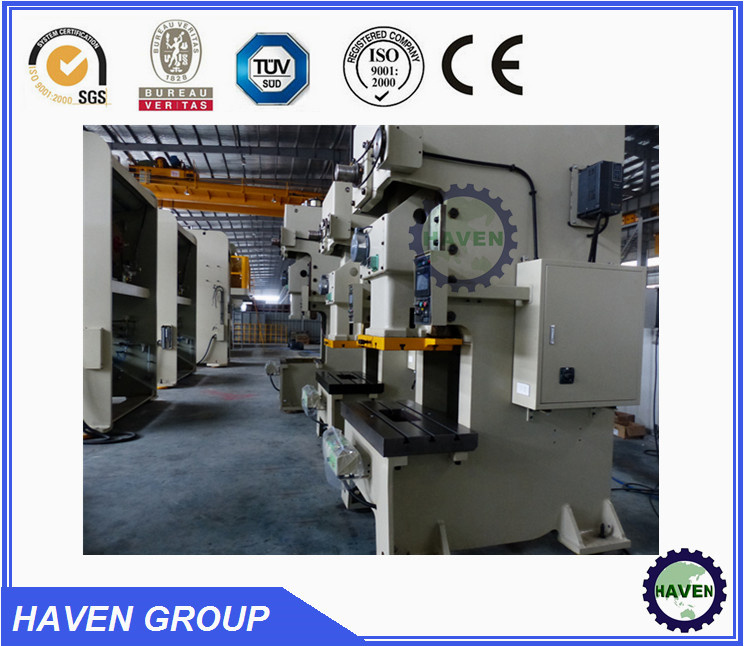

AKA Series high precision compact power press
little changing in mould height, little deviation of dynamic centter ,
promote the mould life in large scale ,small deformation ,low noise for cutting operation .
Main parameter :
ITEM
| AKA-25 | AKA-35 | AKA-45 |
| Model | S | V | H | V | H | V |
| Capacity | 25 35 45 |
| Rated tonnage point | 3.2 | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 |
| Stable speed | 110 | 110 | 110 | 85 | 75 |
| Stroke | 80 | 60 | 30 | 70 | 40 | 80 |
| Die height | 195 | 200 | 215 | 220 | 235 | 250 |
| Slide Adjustment | 50 | 50 | 50 | 55 | 60 |
| Slide Area | 300x230x50 | 360x250x50 | 400x300x60 |
| Bolster Area | 680x300x65 | 680x300x70 | 800x400x70 | 850x440x80 |
| Shank Hole | 38.1 | 38.1 | 38.1 | 38.1 |
| Main motor | 2.2x4 | 2.2x4 | 2.2x4 | 3.7x4 |
| Slide Adjust Device | Manual opearation |
| Air pressure | 6 | 6 | 6 | 6 |
| Presses precision | GB(JIS)1 CLASS | GB(JIS)1 CLASS | GB(JIS)1 CLASS | GB(JIS)1 CLASS |
| Presses Dimension | 1280x850x2200 | 1280x850x2200 | 1380x900x2400 | 1600x950x2500 |
| Presses weight | 2.1 | 2.1 | 3 | 3.8 |
| Stroke | - | - | 50 | 50 |
| Die Cushion Capacity | - | - | 50 | 50 |
We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
