Product Description

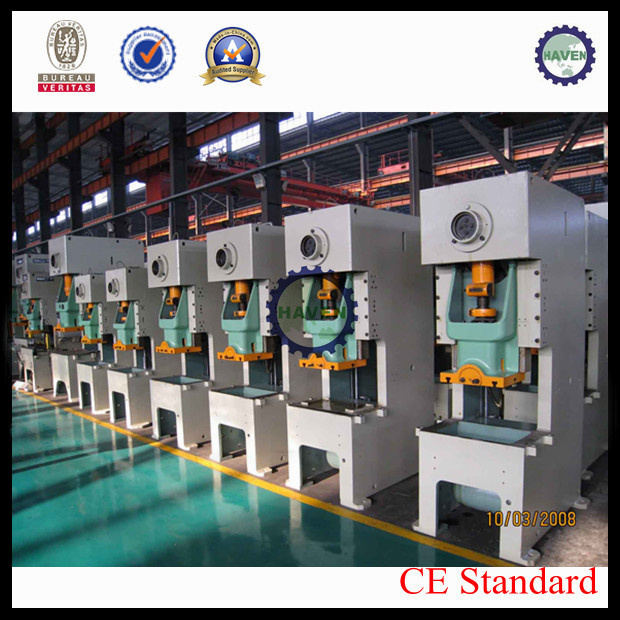

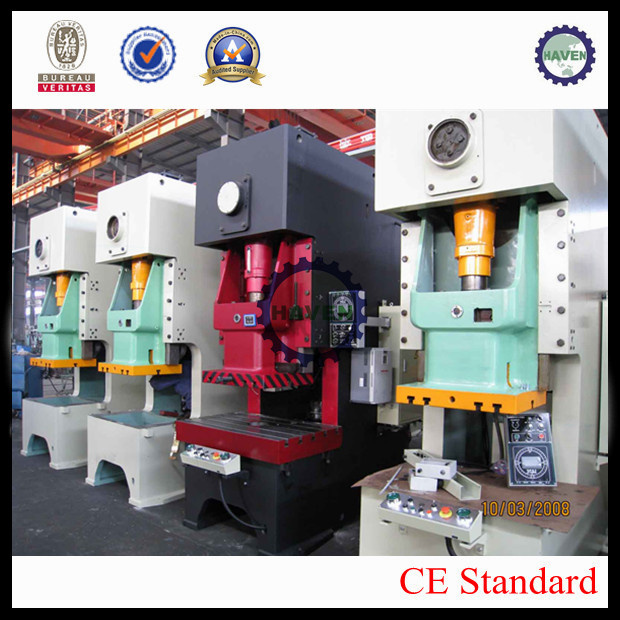

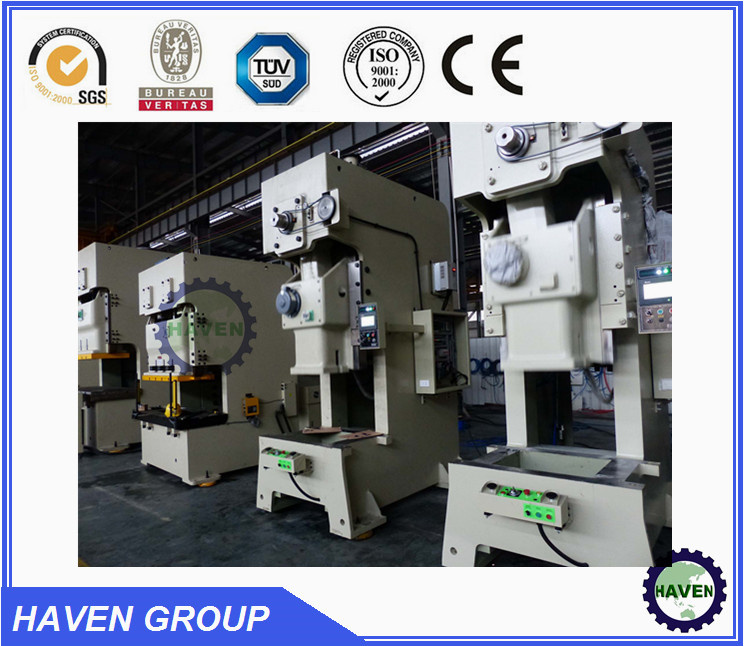

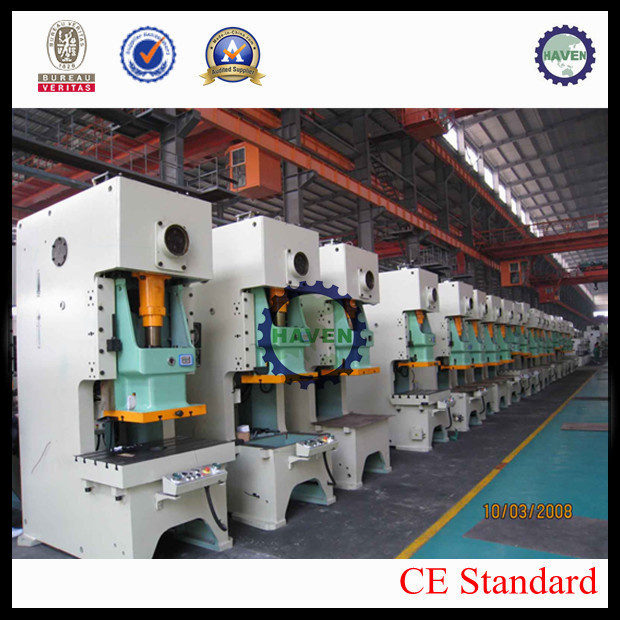

JH21 series OPEN BACK PRESS WITH DRY CLUTC AND HYRAULIC PVERLOAD PROTECTOR
Main Features:1. Welded body with steell palte and deep throat
2. Combined dry type pneumatic frictioj clutch and brake
3. Cluster gear adopts the flooding oil lubrucation.
4. Six-face rectangle lengthen guide
5. Rigd pressing down style overload protector.
6. JH21s-45 adopts manual shut height adjustment with scale display. JH21s-63 and above type adopts electric shut height adjustment with digital display.
7. Equipped with lifting banlande cylinder,
8. Duplex valves imported from jipan
9. Electric compelling grease lubrication system,
10. Controlled by PLC with international brand,
11. Equipped with optional air cushion devrce, automatic feed shaft device and photoelectric protector, which can used to work with various antomatic equipments.
Main Specification:| Item | JH21-25B | JH21-25 | JH21--45 | JH21-63 | JH21-80 | JH21-110 | JH21-125 |
| Capacity | kN | 250 | 250 | 450 | 630 | 800 | 1100 | 1250 |
| Nominal Stroke | mm | 3 | 3 | 4 | 4 | 5 | 6 | 6 |
| Slide Stroke | mm | 60 | 80 | 100 | 120 | 140 | 160 | 160 |
| SPM | Fixed | min-1 | 100 | 100 | 80 | 70 | 60 | 50 | 50 |
| Variable | 80-120 | 80-120 | 70-90 | 60-80 | 50-70 | 40-60 | 40-60 |
| Max. Die Height | mm | 200 | 250 | 270 | 300 | 320 | 350 | 350 |
| Die Height Adjustment | mm | 50 | 50 | 60 | 80 | 80 | 80 | 80 |
| Between Slide Center & Frame | mm | 160 | 210 | 230 | 300 | 300 | 350 | 350 |
| Bolster (FB×LR) | mm | 300×680 | 400×700 | 440×810 | 580×900 | 580×1000 | 680×1150 | 680×1150 |
| Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | 130×260 | φ170×20×φ150 | φ180×30×φ160 | φ200×40×φ180 | φ200×40×φ180 | φ260×50×φ220 | φ260×50×φ220 |
| Bolster Thickness | mm | 70 | 80 | 110 | 110 | 120 | 140 | 140 |
| Bolster Opening (Dia./FB×LR) | mm | 200×270 | 260×250 | 300×300 | 390×460 | 390×520 | 420×540 | 420×540 |
| Slide Area (FB×LR) | mm | 270×330 | 300×360 | 340×410 | 400×480 | 420×560 | 500×650 | 540×680 |
| Shank Hole (Dia.×Dpth) | mm | φ40×60 | φ40×60 | φ40×60 | φ50×80 | φ50×80 | φ60×80 | φ60×80 |
| Between Columns | mm | 448 | 450 | 550 | 560 | 640 | 760 | 760 |
| Main Motor Power | kW | 3 | 3 | 5.5 | 5.5 | 7.5 | 11 | 11 |
| Outline Size (FB×LR×H) | mm | 1150×1050×2050 | 1300×1050×2050 | 1390×1200×2400 | 1580×1210×2520 | 1640×1280×2700 | 1850×1450×3060 | 1850×1490×3060 |
| Net Weight | kg | 2200 | 2600 | 3450 | 5400 | 7000 | 9340 | 9900 |
