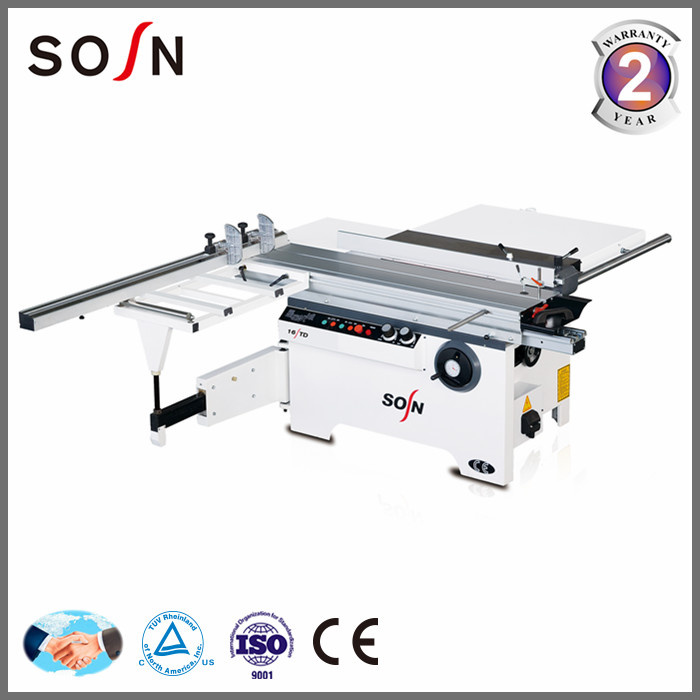

High Precision Panel Saw with 1600mm Sliding Table (MJ6116TD)

High Precision Panel Saw with 1600mm Sliding Table (MJ6116TD)
Price: US $ 2200-2500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: MJ6116TD
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Semiautomatic
Precision: High Precision
Certification: ISO

Product Description


1, electrics : Chint brand
2 ,  motor 5.5+1.1, with copper wire  .
3,14 fixed points on the machines to make sure the no changable.
4 ,dynamic balance.
5 ,much heavier.6, can design as your need

Dimension of sliding table1600x375mm
Gross cut capacity1600mm
Width of cut between saw blade and rip fence1250mm
Saw blade diameter300mm(250-400mm)
Height of cut (300mm)80mm
Speed of main saw spindle 4500/6000rpm
Main spindle diameter 30mm
Tilting saw blade0-45°
Main motor 220v/380v/415v, 5.5kw
Scoring saw blade diameter120mm
Speed of scoring saw blade8000rpm
Scoring saw diameter20mm
Scoring motor1.1kw
Gross weight750kg
Packing size of machine body(L*W*H)1520*1150*1050mm
packing size of sliding table(L*W*H)1750*480*320mm

Our products can be classified as
According to the tilting:  45 degree(T) and 90 degree
According to the structure:  Linear(Z), Round rod(D) and Altendrof(A)
The cutting capacity is from 1500mm to 3800mm( usually we have 1600mm, 2200, 2600, 2800, 3000, 3200,3800mm)

NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: standard export wooden cast package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)

Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friendly partner relationship--a win-win cooperation

If any question,feel free to contact me.
I am ready to serve you all the time!


Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
