| Prod Model: |
MJ61-32TA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Attribute (E. G.: Size): |
Value (E. G.: 12 Inches) |
| Colour: |
White and Green |
| Imported Belts: |
Imported Bearing |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
| Type: |
Woodworking Sawing Machine |

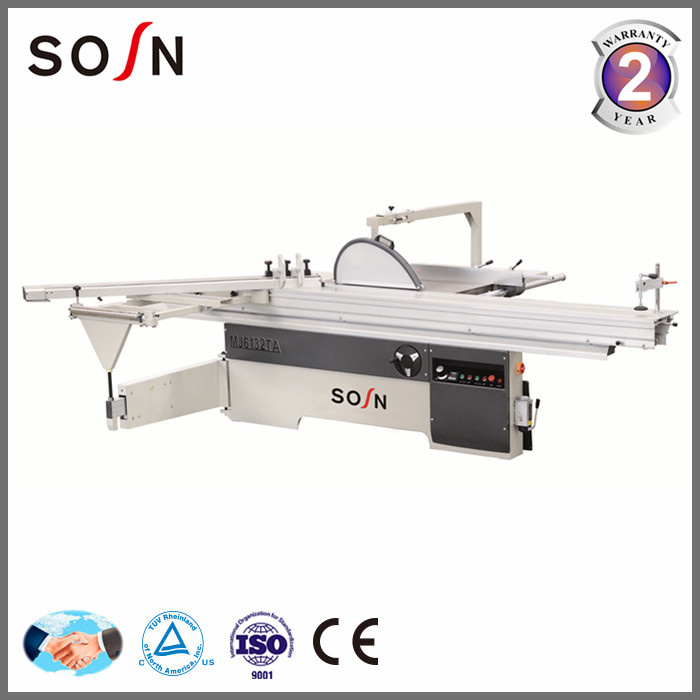

Product Description
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, prganic glass plates and solid wood and others with wood structure and similar hardness.
Movable table guide track is plating chromium steel balls structure, exact and durable. Optional guide track.
Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
With oxidation treatment, movable table surface is beautiful and hardwearing.
Main and scoring saw blades moving is electrical control system and digital indication.
| Model( Electric up and down of main saw blade ) | MJ61-32TA |
| Sliding table size(mm) | 3200*375 |
| Gross cut capacity(mm) | 3200 |
| Width between saw blade&rip fence(mm) | 1250 |
| Saw blade diameter(mm) | 300(250-350) |
| Height of cut (300mm) | 70-80 |
| main saw spindle Speed rpm | 4500/6000 |
| Main spindle diameter(mm) | 30 |
| Tilting saw blade | 0-45-90° |
| Main motor Power(kw) | 5.5kw |
| Scoring motor power | 1.1kw |
| Scoring saw blade dia (mm) | 120 |
| scoring saw blade speed rpm | 8000 |
| Scoring saw diameter (mm) | 20 |
| Weight(kgs) | 900 |
| machine body Package size | 2200*1150*1100mm |
| Sliding table Pack size (mm) | 3350*480*320 |
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
