| Prod Model: |
MJ6128TD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Saw Type: |
Sliding Table Panel Saw |
| Brand: |
Sosn |
| Original: |
Qingdao |
| Voltage: |
220V,380V |
| Application: |
Wood Saw |
| Motor Power: |
5.5+1.1 Kw |
| Dimension Of Sliding Table: |
2800*375 mm |
| Saw Blade Diameter: |
300mm |
| Spindle Diameter: |
30+20mm |
| Gross Weight: |
750kg |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |

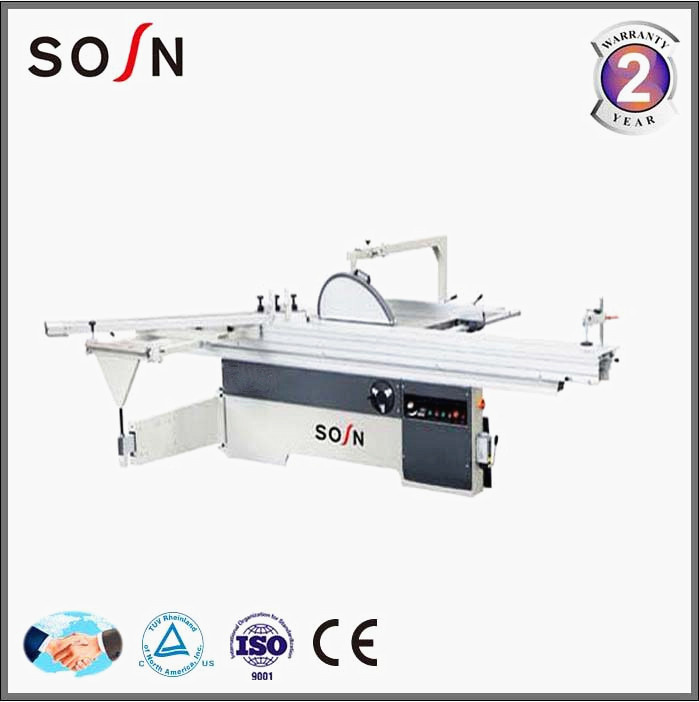

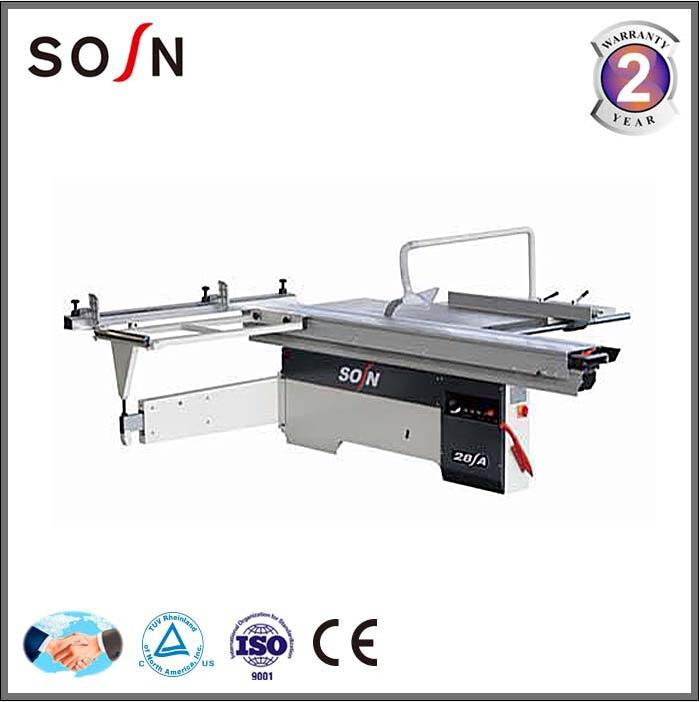

Product Description
Apply to processing all kinds of density boards, shaving boards, wood-based panels, PVCpanels, organic glass plates and solid wood and others with wood structure and similar hardness.
Movable table guide track is lplating chromium steel balls structure, exct and durable.
Made of high-strength extruded aluminum allory, movable table is high in strength and won't bend.
With oxidation treatment, movable table surface is beautiful and hardwearing.
Machine parameters
| Dimension of sliding table | 2800*375mm |
| Gross cut capacity | 2800mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300) |
| Height of cut (diameter: 300mm) | 80mm |
| Speed of main saw spiondle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 45 angle |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000r/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 1.1kw |
| Net weight | 750kg |
| Gross weight (with wooden package) | 900kg |
| Overall dimensions | 2800*3150*900mm |
Sosn history :
SOSN Woodworking Machine is focus on design and manufacture of
professional woodworking machines over 30 years.
The Main products of SOSN Woodworking Machine are precision panel saw,
edge banding machine, drilling machine and CNC router. We have mare than 70
sales agents in China domestic market, and 21 sales agents in 12 foreign countries
of oversea market. Our customers and agents are from Southeast Asia, The Middle
East, America, Europe, and so on.
Professional design, Lean manufacturing, 24 hours on line service ensure we supply
high quality product to customer on time.
In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help
of our Iran technical Engineers, we design and manufacture new electronic panel saw
and edge banding machine.
SOSN Woodworking Machine are always researching and manufacturing professional
and economical woodworking machines to our customers.
Static spray paint technology for machine, never paint off,
feature:
thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.
|
Fine micro adjustment,stable and precision.
|
Auto power off saw blade cover added the working safety
|
5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
|
European quality button
|
Aluminum extruded fence with large stopper
|
Big ruler with high quality
|
Big saw blade tilt degree is digital show, very convenient for operator, also with high precision.
This favor is only for re-seller,(it is optional)
|
delivery :
NOTE:1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: atandard export wooden case package.
4. Delivery time:20 days after getting the deposit (depends on the quantity)Reasons to choose SOSN:1: professional team--as much as possible to meet your needs
2: quick delivery--timely and effective
3: excellent after-sale services--no worries anymore
4: friend partner relationship--a win-win cooperation
If any question,feel free to contact me.
I am ready to serve you all the time!
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
