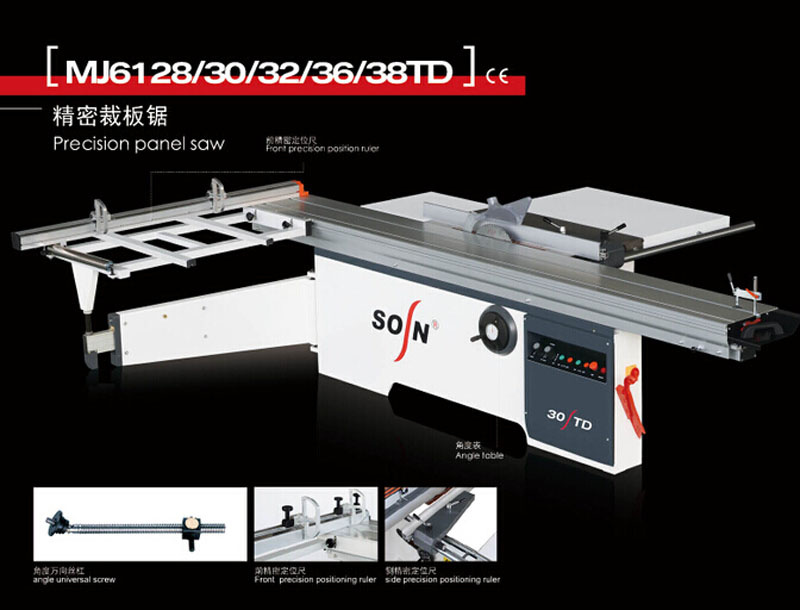

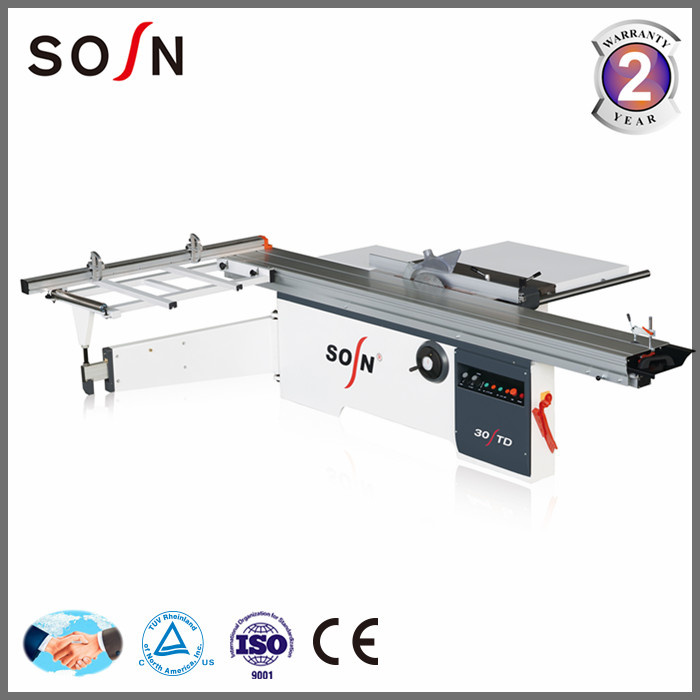

High Precision Woodworking Machinery Panel Saw for Cutting Board (MJ6132TD)
| Price: |
US $ 1000-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MJ6132TD |
| Model(Manual Control): |
Mj6116td |
| Sliding Table Size(mm): |
1600*375 |
| Gross Cut Capacity(mm): |
1600 |
| Width Between Saw Blade&Rip Fence(mm): |
1250 |
| Saw Blade Diameter(mm): |
300(250-400) |
| Height Of Cut (300mm): |
80 |
| Main Saw Spindle Speed Rpm: |
4500/6000 |
| Main Spindle Diameter(mm): |
30 |
| Tilting Saw Blade: |
0-45& 90degree |
| Motor Power(Kw): |
5.5+1.1 |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

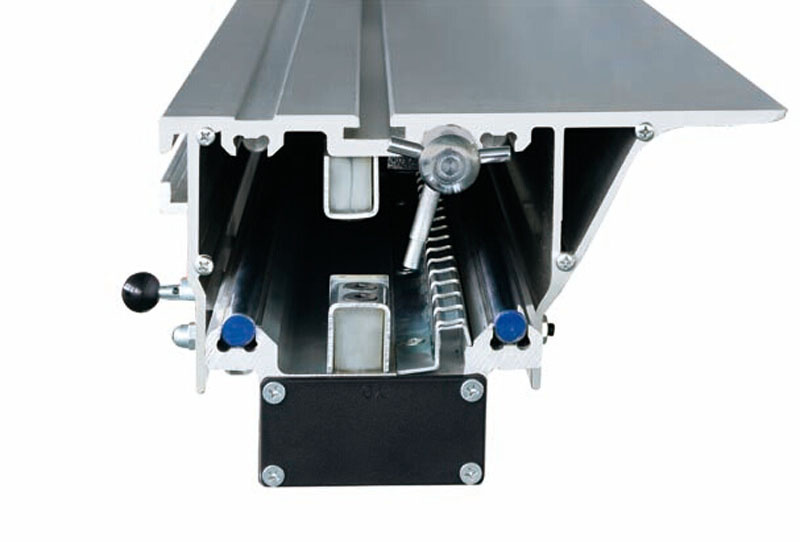

| Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.
|
 | Perfect inner structure, to make sure the machine work precision, easy-operation.
|
 | Fine micro adjustment,stable and precision.
|
 | 5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
|
Machine parameters | Model(Manual control) | MJ6132TD |
| Sliding table size(mm) | 3200*375 |
| Gross cut capacity(mm) | 3200 |
| Width between saw blade&rip fence(mm) | 1250 |
| Saw blade diameter(mm) | 300(250-400) |
| Height of cut (300mm) | 80 |
| main saw spindle Speed rpm | 4500/6000 |
| Main spindle diameter(mm) | 30 |
| Tilting saw blade | 0-45& 90° |
| Motor Power(kw) | 5.5 |
| Scoring motor(kw) | 1.1 |
| Scoring saw blade dia (mm) | 120 |
| scoring saw blade speed rpm | 8000 |
| Scoring saw diameter (mm) | 20 |
| Weight(kgs) | 800 |
