| Prod Model: |
Mj6130a |
| Gross Weight: |
830kg |
| The Name: |

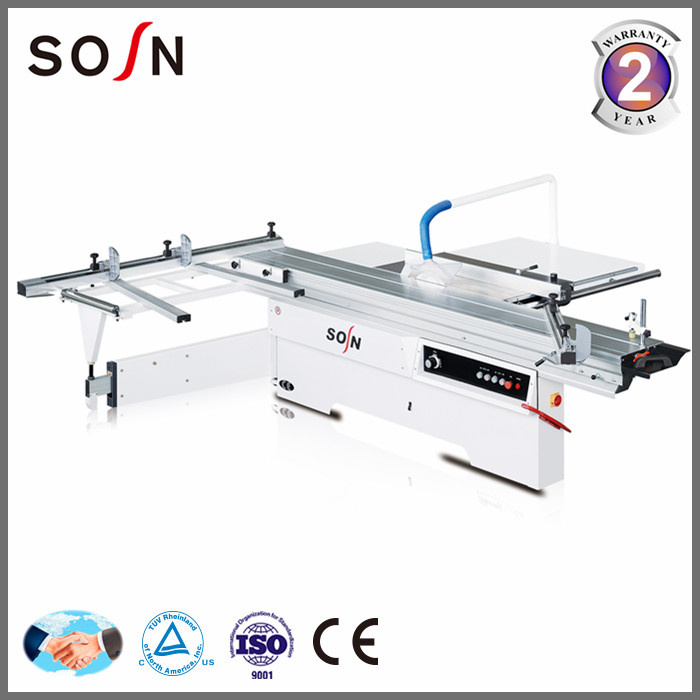

Panel Saw |
| Model: |
Mj6130A |
| Dimension Of Sliding Table: |
3000*375mm |
| Main Motor: |
5.5kw |
| Type: |
Woodworking Sawing Machine |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
Product Description
1, electrics : Chint brand 2 , motor 5.5+1.1, with copper wire .3,14 fixed points on the machines to make sure the no changable.4 ,dynamic balance.5 ,much heavier.6, can design as your need
Business terms for SOSN Panel Cutting Machines
Tel:86-0532-83136377 | Tel:86-0532-80981213 |
| | Mobile:86-15092459267 |
| Main parameter | |
| Sliding table size(mm) | 3000*375 | |
| Gross cut capacity(mm) | 3000 | |
| Width between saw blade&rip fence(mm) | 1250 | |
| Saw blade diameter(mm) | 300(250-350) |
| Height of cut (300mm) | 90 | |
| main saw spindle Speed rpm | 4500/6000 | |
| Main spindle diameter(mm) | 30 | |
| Tilting saw blade | 90 |
| Motor Power(kw) | 5.5+1.1 | |
| Scoring saw blade dia (mm) | 120 | |
| scoring saw blade speed rpm | 7000-8000 | |
| Scoring saw diameter (mm) | 120 | |
| Gross Weight(kgs) | 830 | |
Details

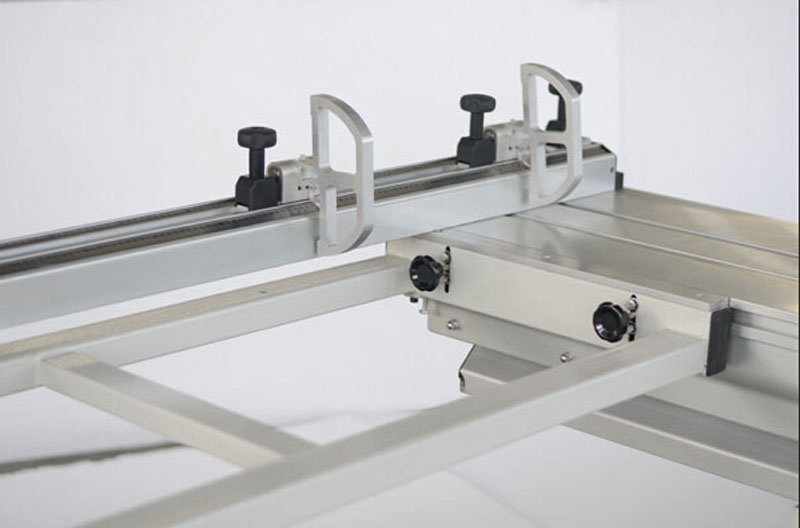

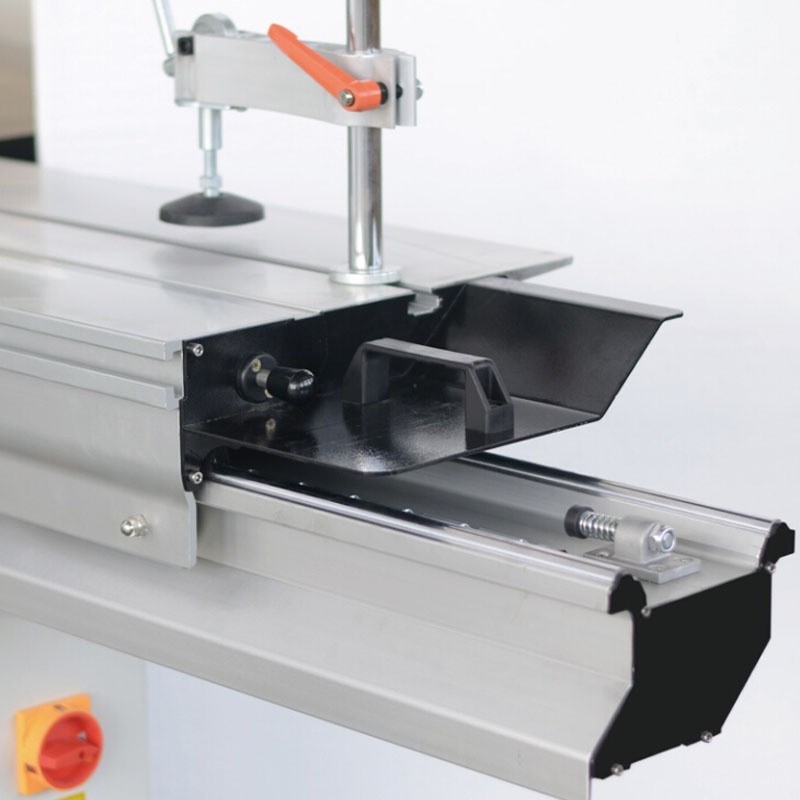

Steel bar sliding table, with inner lock, more rigidity and strength,smooth movement.
Fine micro adjustment,stable and precision.
European quality button
1.5.5kw +1.1kw big power motor, 2.National standard,
3.Cooper wire,
4.Aluminum shells,(radiating faster, not easy to burn out the motor, so this motor's life is much longer than common),
5.Maximum motor power transfer from th e Poly-V belt .
Aluminum extruded fence with large stopper

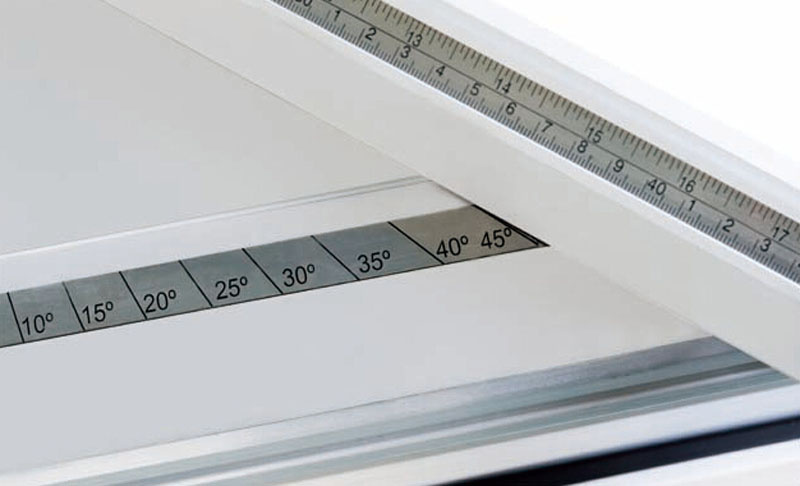

Big saw blade tilt degree is digital show
Our product is High precision and full-automatic. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels ,PVC panels, organic glass plates and solid wood and other with wood structure and similar hardness.Movable table guide track is plating chromium steel bar structure, exact and durable.Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.With oxidation treatment, movable table surface is beautiful and hardwearing.
Please contact us freely for more sliding table saw details.
we can tell and talk with you about how to choose a real high quality saw machine from every details not only the basic function and parameter!
So if you are in need of this kind of woodworking machines, pls contact us, and we'd like to offer you our best quotation for you to have a check.
NOTE
1) Warranty:TWO YEARS.
2)Payment:30% payment in advance by T/T,70%TT before delivery
3)Package:standard wooden case.
4)Delivery time: within 20 days after deposit.
5)Validity: within 30 days from the quotation date.

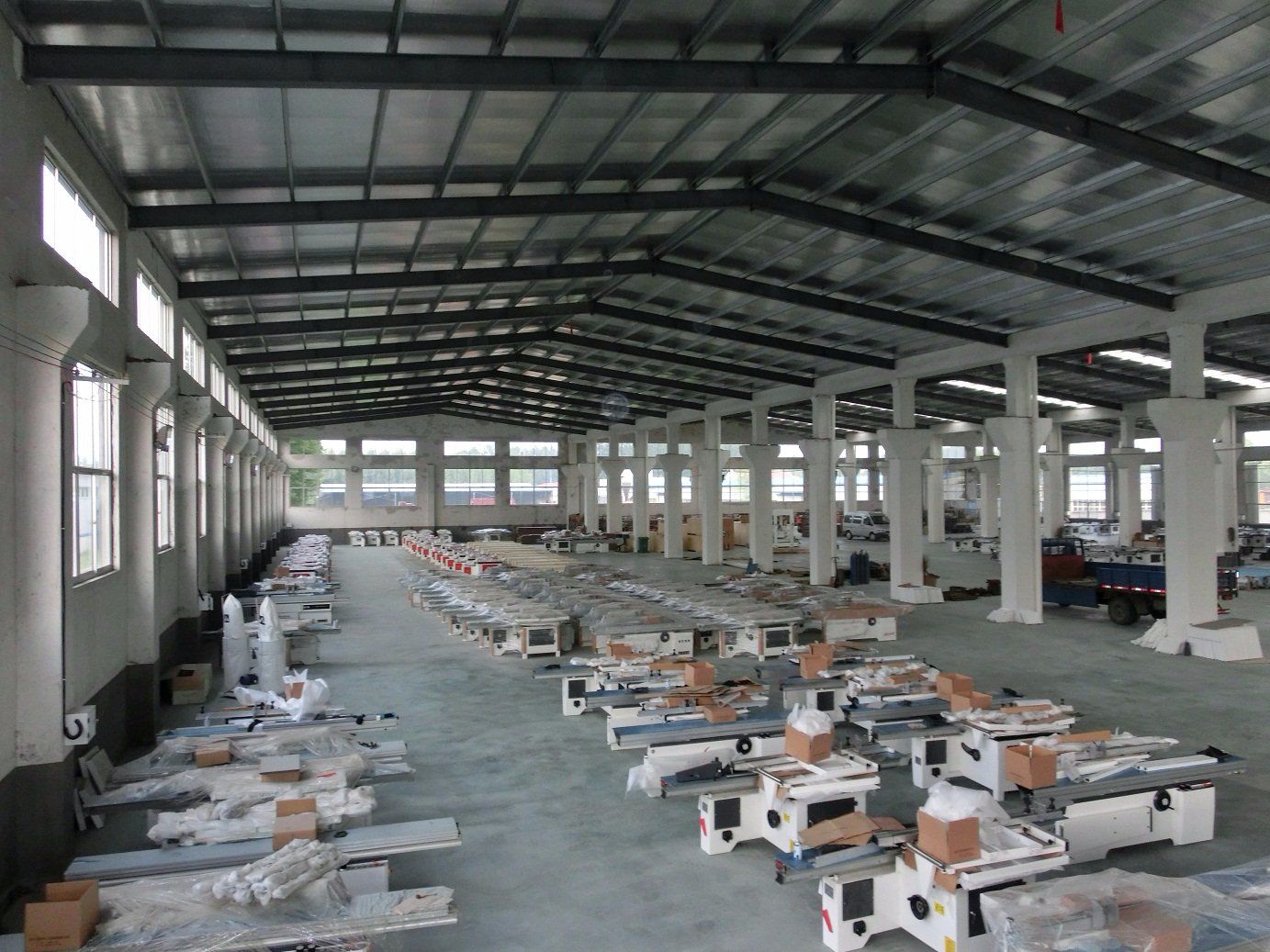

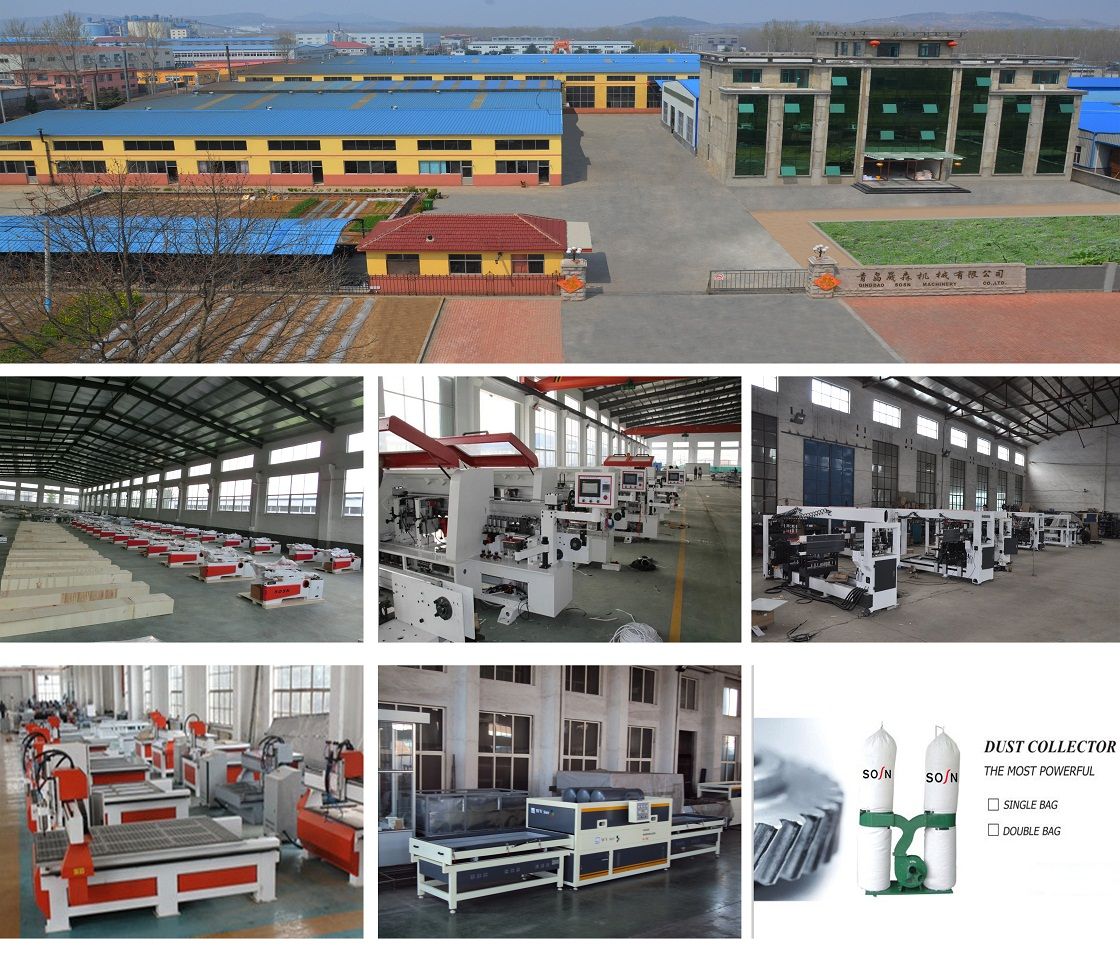

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
