| Price: | US $ 1700/Piece |
|---|---|
| Trade Terms: | FOB,CIF,DAP |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | KT-S Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Square Drive Hydraulic Torque Wrench |
| Max Torque Range: | 34079nm |
| Min. Torque(N.M): | 1898 Nm |
| Axle: | 1-1/2, 3/4 |
| OEM: | Yes |
| Color: | Can Customer |
| Certificate: | Ce and ISO |
| Warranty: | One Year |
| Bolt Size: | 15-50m to 60-255m |
| Shipment: | by Sea, Air or Express |

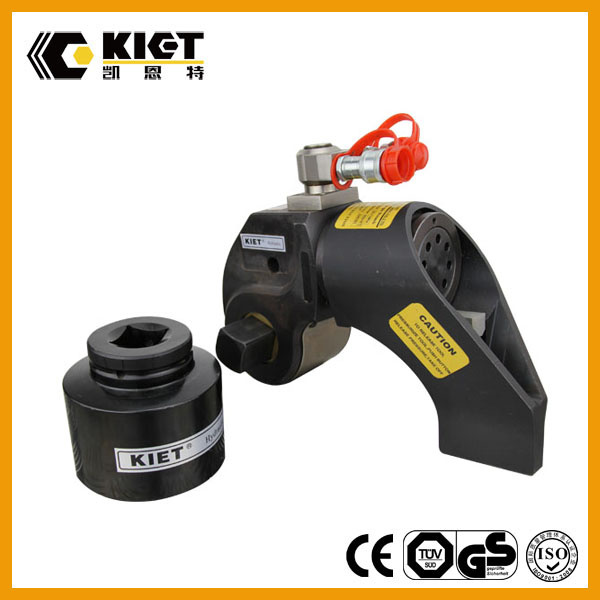

High Quality Competitive Price Square Drive Hydraulic Wrench
Features:
Square drive stainless steel hydraulic torque wrench
360 º x 180 º rotating tubing connector, without the use of space limitations, easy to operate
Drive shaft Zhu button release, fast switching tighten and removal of the state
Cylinders and power head shape is small, light weight, compact structure, small operating radius
Single operation nut corner too fast cylinder mesh process. High working efficiency
The reaction force in a straight line, reducing the internal torque loss
The cartridges torque wrench entire work process provides high accuracy
Easy to maintain, requiring no special tools
Surface of the torque wrench is nickel plated, with good anti-corrosive
| Model Number | Socket Range | Square Drive(Inch) | Max Nm Under 700bar | Socket Size | |||
| mm | inch | NM | Ft.lbs | mm | inch | ||
| KT-S1500 | 15-50 | 5/8-1 7/8 | 3/4" | 1898 | 1400 | 14-24 | 1/2 -2-1 |
| KT-S3000 | 20-100 | 7/8-3 7/8 | 1 | 4339 | 3200 | 17-32 | 5/8-1 1/4 |
| KT-S6000 | 41-155 | 1 5/8-6 1/4 | 1 1/2" | 8144 | 6010 | 17-32 | 5/8-1 1/4 |
| KT-S11000 | 41-155 | 1 5/8-6 1/4 | 1 1/2" | 14914 | 11000 | 30-46 | 1 1/4-1 3/4 |
| KT-S25000 | 60-255 | 2 3/8-10 | 2 1/2" | 34079 | 25140 | 36-85 | 1 1/2 -2 1/4 |

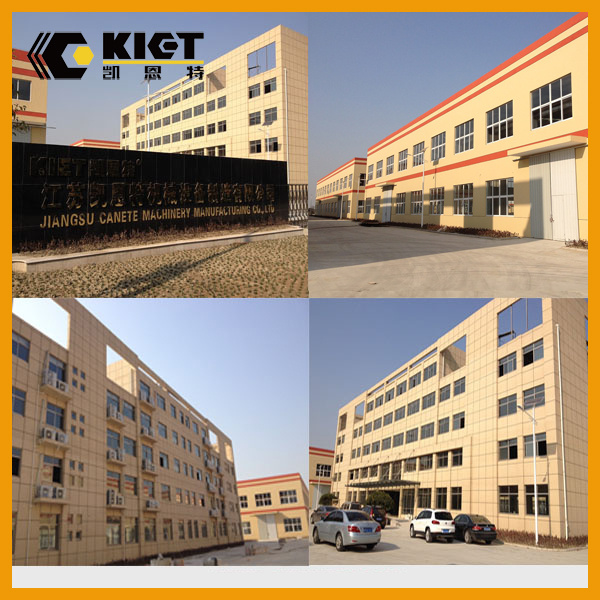

We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
