| Prod Model: |
nq bq hq pq nq3 hq3 pq3, t2, t6, tt, nwf, hwf |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Saw Blade External Diameter: |
Nq |
| Dimension: |
Wireline and Conventional Core Barrel |

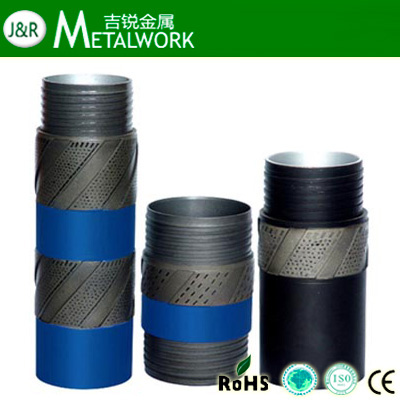

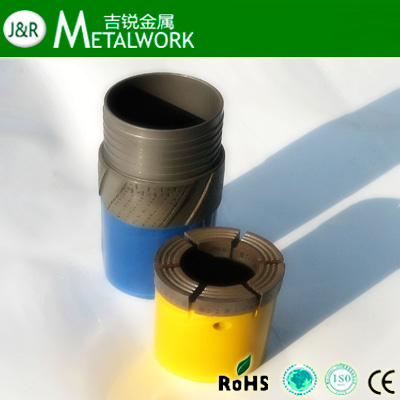

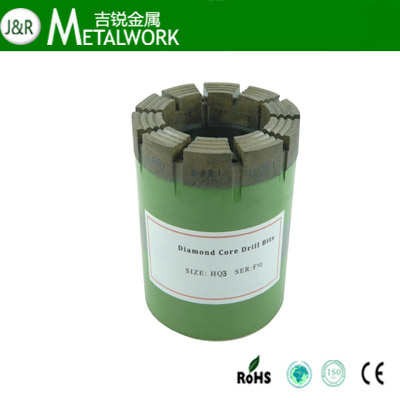

Product Description
Material:Sintered diamond impregnated core dirll
Metrix hardness:F1-F10
Metrix height:6mm,8mm or more
Crown profile:W profile,Flat profile,Cross profile,Semi-round profile,Multi-step profile
Waterway type:standard type,wode type,turbo type,wide turbo type,round face discharge hole type,slot face discharge hole,Trapezoid type
Available size:BQ(WLB),WLB-2.400,BQ3(WLB3),BWG,BX,BWM,BWT,LTK60,TBW
NQ(WLN),NQ-3.032,NQ2(WLN2),NQ3(WLN3),NQTT(NWLTT),NMLC,NWG(NX),NWM,NWT,TNW
HQ(WLH),HQ-3.830(WLH-3.830),HMLC,HWF,HWG(HX),HWM,HWT
PQ(WLP),PQ3(WLP3),PWF,SWF,UWF,ZWF
T-36,TT46,TB56,TT56,T2-56,T2-66,T2-76,T2-86,T2-101
T6-76,T6-86,T6-101,T6-116,T6-131,T6-146,T6S-76,T6S-86,T6S-116,T6S-131,T6S-146
B36,B46,B56,B66,B76,B86,B101,B116,B131,B146
| Bit Sizes | Dimension N | Product Availability |
| OD | ID |
| inch | mm | inch | mm | Imp. | Surf Set | TSP | T.C | PCD | E.P. |
| NQ | 2.970-2.960 | 75.44-75.19 | 1.880-1.870 | 47.75-47.50 | Y | Y | Y | Y | Y | Y |
| NQ-RSG | 2.985-2.975 | 75.82-75.57 | 1.880-1.870 | 47.75-47.50 | Y | Y | Y | Y | Y | Y |
| NQ-3.032 | 3.037-3.027 | 77.14-76.89 | 1.880-1.870 | 47.75-47.50 | Y | Y | Y | Y | Y | Y |
| NQ2 | 2.970-2.960 | 75.44-75.19 | 2.000-1.990 | 50.80-50.55 | Y | Y | Y | Y | Y | Y |
| NQ2-RSG | 2.985-2.975 | 75.82-75.57 | 2.000-1.990 | 50.80-50.55 | Y | Y | Y | Y | Y | Y |
| NQ3,NQTT | 2.970-2.960 | 75.44-75.19 | 1.780-1.770 | 45.21-44.96 | Y | Y | Y | Y | Y | Y |
| NQ3-RSG | 2.985-2.975 | 75.82-75.57 | 1.780-1.770 | 45.21-44.96 | Y | Y | Y | Y | Y | Y |
| NQ3-3.032 | 3.037-3.027 | 74.14-76.89 | 1.780-1.770 | 45.21-44.96 | Y | Y | Y | Y | Y | Y |
| NMLC | 2.970-2.960 | 75.44-75.19 | 2.052-2.042 | 52.12-51.87 | Y | Y | Y | Y | Y | Y |
| NWG,NX | 2.970-2.960 | 75.44-75.19 | 2.160-2.150 | 54.86-54.61 | Y | Y | Y | Y | Y | Y |
| NWM | 2.970-2.960 | 75.44-75.19 | 2.160-2.150 | 54.86-54.61 | Y | Y | Y | Y | Y | Y |
| NWT | 2.970-2.960 | 75.44-75.19 | 2.318-2.308 | 58.87-58.62 | Y | Y | Y | Y | Y | Y |
| TNW | 2.970-2.960 | 75.44-75.19 | 2.394-2.384 | 60.80-60.55 | Y | Y | Y | Y | Y | Y |
| Bit Sizes | Dimension H | Product Availability |
| OD | ID |
| inch | mm | inch | mm | Imp. | Surf Set | TSP | T.C | PCD | E.P. |
| HQ | 3.770-3.755 | 97.76-95.38 | 2.505-2.495 | 63.63-63.38 | Y | Y | Y | Y | Y | Y |
| HQ-RSG | 3.790-3.755 | 96.27-95.89 | 2.505-2.495 | 63.63-63.38 | Y | Y | Y | Y | Y | Y |
| HQ-3.830 | 3.840-3.825 | 97.54-97.16 | 2.505-2.495 | 63.63-63.38 | Y | Y | Y | Y | Y | Y |
| HQ-3.895 | 3.897-3.882 | 98.98-98.60 | 2.505-2.495 | 63.63-63.38 | Y | Y | Y | Y | Y | Y |
| HQ3,HQTT | 3.770-3.755 | 95.76-95.38 | 2.411-2.401 | 61.24-60.99 | Y | Y | Y | Y | Y | Y |
| HQ3-RSG | 3.790-3.755 | 96.27-95.89 | 2.411-2.401 | 61.24-60.99 | Y | Y | Y | Y | Y | Y |
| HQ3-3.830 | 3.840-3.825 | 97.54-97.16 | 2.411-2.401 | 61.24-60.99 | Y | Y | Y | Y | Y | Y |
| HQ3-3.895 | 3.897-3.882 | 98.98-98.60 | 2.411-2.401 | 61.24-60.99 | Y | Y | Y | Y | Y | Y |
| HMLC | 3.897-3.882 | 98.98-98.60 | 2.505-2.495 | 63.63-63.38 | Y | Y | Y | Y | Y | Y |
| HWF-Long | 3.912-3.897 | 99.36-98.98 | 3.005-2.995 | 76.33-76.08 | Y | Y | Y | Y | Y | Y |
| HWF-Short | 2.897-3.882 | 98.98-98.60 | 3.005-2.995 | 76.33-76.08 |
|
|
|
|
|
|
| HWM | 2.897-3.882 | 98.98-98.60 | 3.005-2.995 | 76.33-76.08 | Y | Y | Y | Y | Y | Y |
| HWT | 2.897-3.882 | 98.98-98.60 | 3.192-3.182 | 81.08-80.82 | Y | Y | Y | Y | Y | Y |
