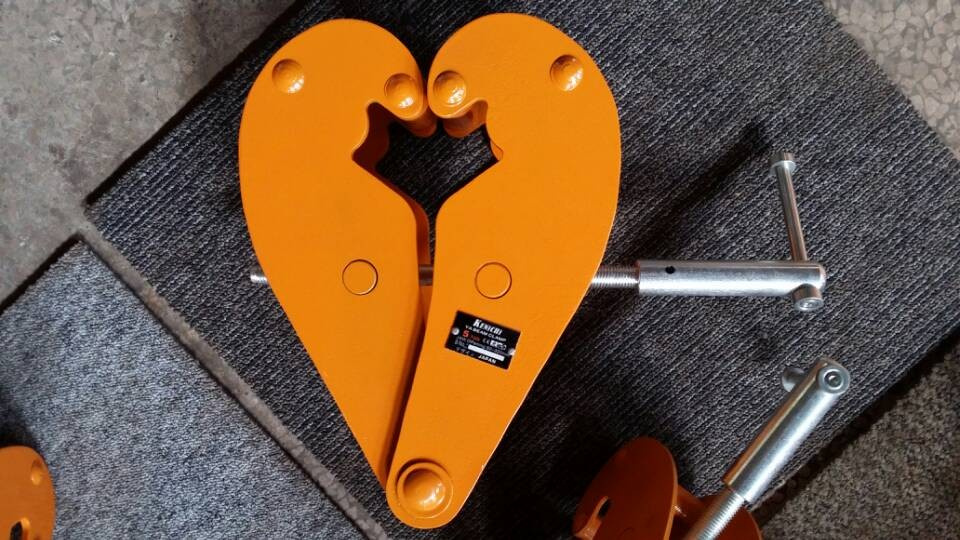

High Quality Lifting Beam Clamp for Beam
| Price: |
US $ 20-21/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BC-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity(T): |
1-10 |
| Test Load(T): |
1.5times |
| I Beam Range(mm): |
75-320 |
| Color: |
Yellow |
| Application: |
Beam Clamp Lifting |
| MOQ: |
10 |
| Material: |
Metal |
| Usage: |
Pipe Clamp |
| Structure: |
Suspension Clamp |
| Standard: |
Standard |
| Brand: |
Liftking |
Product Description
Our brand-liftkingMore safe enterprises was born with the aim to design, produce and sell material lifting equipment, who is a professional manufacturer of electric chain hoist,wire rope hoist,manual chain/lever block, carne projects and related assembly products with"liftking"brand.Liftking is famous and popular brand all over the world.Product detialA.Conforms to ANSI/ASME safety standard.
B.Can be easily adjusted with threaded handle.
C.Clamp jaw is designed to reduce flange stress by distributing load away from I-Beam flange eage
D.Fits a wide range of flange width and beams.
E.Suspension bar provides lower headroom.
| Beam Clamp |
| Model | BC-A |
| Capacity(T) | 1 | 2 | 3 | 5 | 10 |
| Test Load(t) | 1.5 | 2.5 | 4.5 | 7.5 | 15 |
| Net Weight(kg) | 4.1 | 5 | 10.4 | 12 | 16 |
| I-Beam Range(mm) | 75-230 | 75-230 | 80-230 | 90-310 | 90-320 |
| Basic Dimension(mm) | A | 246 | 246 | 320 | 310 | 320 |
| B | 186-350 | 186-350 | 232-455 | 242-445 | 268-480 |
| E | 215 | 215 | 255 | 255 | 275 |
| F | 115-150 | 115-150 | 180-225 | 180-225 | 175-220 |
Optional Extra1. Can be supplied without lifting ring
2. Special design with flatened, reinforced jaws.
ApplicationsStandard clamp is designed for horizontal lifting and transfer of steel plates and is particularly suited to this application due to special thin ground plate and buffer cams whichfacilitate easy insertion and removal under the plate being lifted.It can also be used hanging vertically under a spreader.These clampls are light in weight relative to their lifting capacity.Please note that the wll of these clamps is given based on a pair.The clamps are suitable for surface hardnesses up to 37rc.Welcome to visit usWe more-safe are a professional manufacturer of electric chain hoist, chain block, lever block&other lifting equipments!Through more than 16 years' dedication, we've been the leading manufacturer of lifting industry in china!
Our company has achieved iso9001 & ce certifications.Our products have been successfully exported to europe, america, the middle east, africa & southeast asia.
We warmly welcome clients from all over the world to cooperate with us&develop worldwide market together!We also hope we can have the chance to establish long-term business relationship with you on the basis of mutual benefits!
FAQIf you are interest in our products, please tell me the below informations
1.Capacity.
2.Your estimate purchasing quantity.
More-Safe Enterprises was born with the aim to design, produce and sell material lifting equipment, we are a professional manufacturer of electric chain hoist, chain block, lever block&other lifting equipments! Through more than 16 years' dedication, we've been the leading manufacturer of lifting industry in China!
Our company has achieved ISO9001 & CE certifications. Our products have been successfully exported to Europe, America, the Middle East, Africa & Southeast Asia with"LIFTKING"brand. LIFTKING is famous and popular brand all over the world.
We warmly welcome clients from all over the world to cooperate with us&develop worldwide market together! We also hope we can have the chance to establish long-term business relationship with you on the basis of mutual benefits!

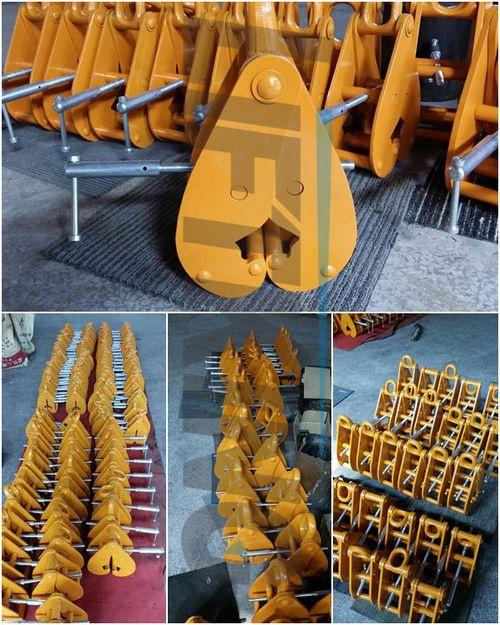

Our Factory
