| Price: | US $ 255-1000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |

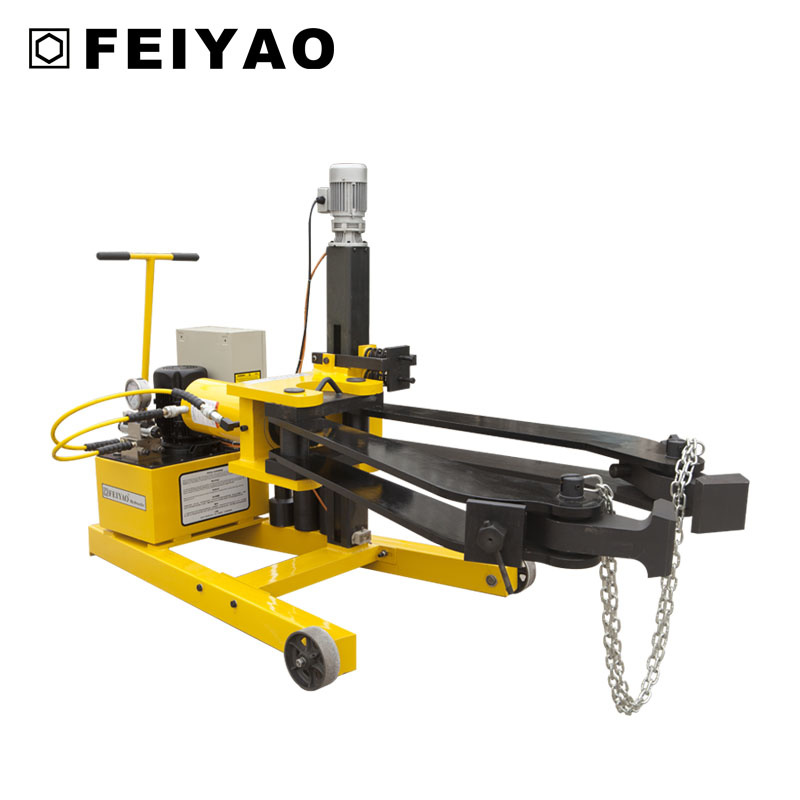

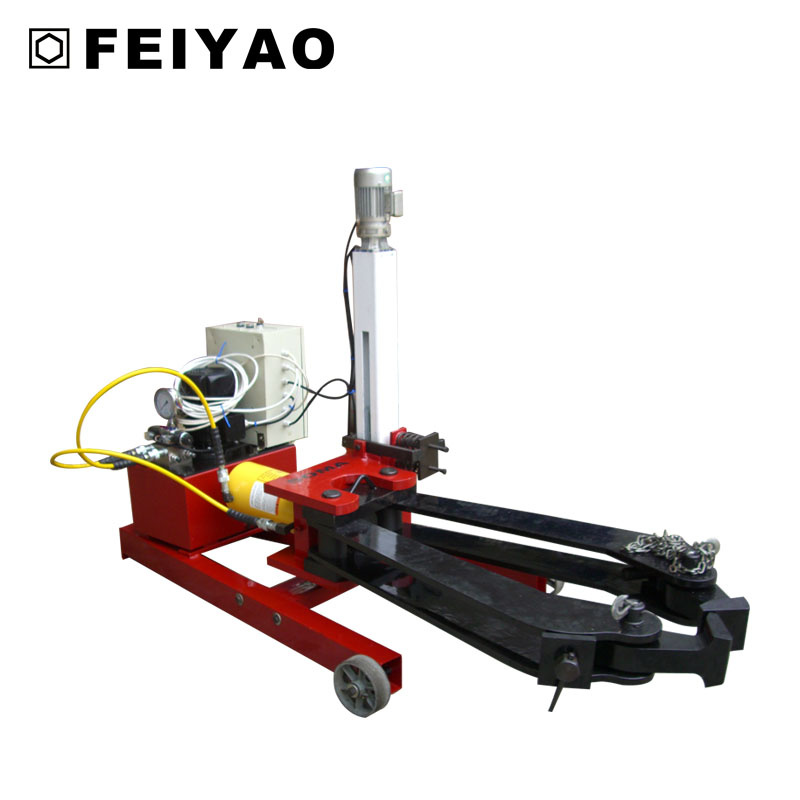

| Prod Model: | FY-PH |
|---|---|
| Working Pressure(MPa): | 70 |
| Max. Spread (mm): | 1150-1219 |
| Min. Spread(mm): | 64-381 |
| Maximum Capacity(mm): | 50-100 |
| Reach(mm): | 178-863 |
| Delivery Time: | 7-15 Days After Receive Payment |
Company Introduction
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

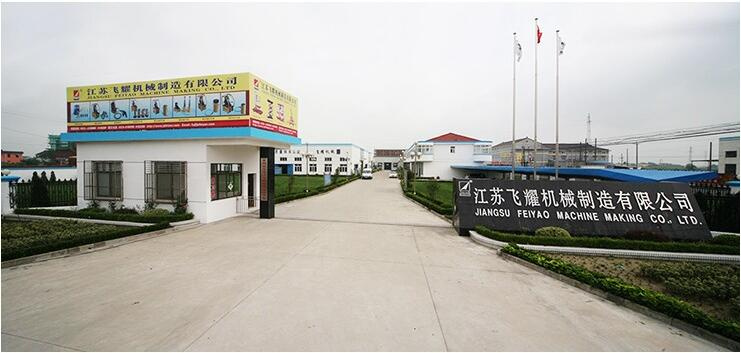

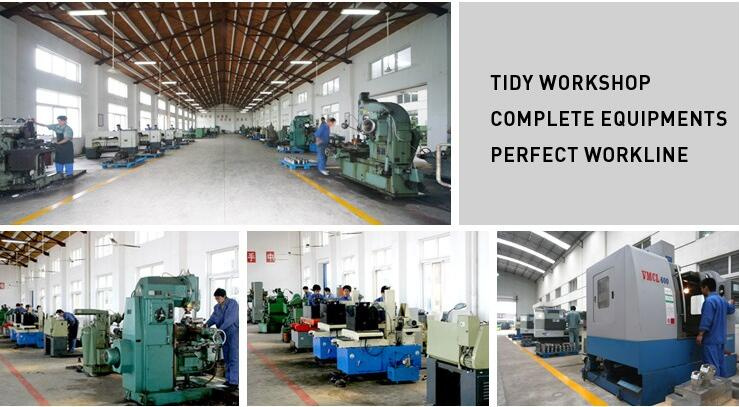

Factory Show
FAQ
Q1: How to contact sales?
A1: Please email or call: +86-180-3679-7771 for pre-sales.
Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
Contact Us
Jiangsu Feiyao Machinery Manufacturing Co., Ltd
Contact Person: Miss Bella
Tel: +86-180-3679-7771
Web: www.fyhydraulic.com
| Model | Puller ability (T) | Dismantling Range (mm) | Stroke (mm) | Pressure (Mpa) | Weight (kg) |
| FY-SBL-500 | 50 | 500 | 160 | 70 | 225 |
| FY-SBL-1000 | 100 | 600 | 160 | 70 | 326 |
| FY-SBL-2000 | 200 | 600 | 160 | 70 | 500 |
| FY-SBL-3000 | 300 | 800 | 200 | 70 | 700 |
| FY-SBL-5000 | 500 | 900 | 200 | 70 | 980 |
