High Quality Product PVC Compact Ball Valves Building Material

Name: High Quality Product PVC Compact Ball Valves Building Material
Brand: tool-buy.com
SKU: 837739175
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 0.17-8/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Ningbo Yinzhou Salvador Imp. & Exp. Co., Ltd.

Showroom Product Company Profile

Prod Model:	11PBV
Color:	White/Grey/Blue
Channel:	Straight Through Type
Structure:	Flexible Ball Valve
Type:	Flexible Ball Valve
Application:	Household Usage
Material:	PVC
Connection Form:	Thread/Socket
Nominal Pressure:	Pn10/150psi
Function:	Ball Valve

Product Description

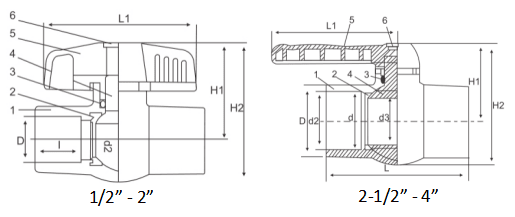

The Drawing Design:

Materials:

NO.	Part	Material
1	Body	PVC
2	Seat Seal	TPE/TPV/EPDM
3	O-Ring	EPDM/NBR
4	Ball	PP/PVC
5	Handle	PP/ABS/PVC
6	Cap	PP/ABS/PVC

Dimensions (unit: mm)

SIZE	Socket End						Thd./in
SIZE	DIN		ANSI		BS		Thd./in
inch	d1	d2	d1	d2	d1	d2	NPT	BSPT
1/2"	20	20.3	21.23	21.54	21.3	21.5	14	14
3/4"	25	25.3	26.57	26.87	26.7	26.9	14	14
1"	32	32.3	33.27	33.65	33.5	33.7	11.5	11
1-1/4"	40	40.3	42.04	42.42	42	42.2	11.5	11
1-1/2"	50	50.3	48.11	48.56	48.2	48.4	11.5	11
2"	63	63.3	60.17	60.63	60.3	60.5	11.5	11
2-1/2"	75	75.3	72.85	73.38	75.1	75.3	8	11
3"	90	90.3	88.7	89.31	88.8	89.1	8	11
4"	110	110.4	114.07	114.76	114.2	114.5	8	11

Features:

1	Standard	ANSI, DIN, BS
2	End Connection Type	Socket end or Thread end
3	Size	1/2"-4" (20mm-110mm)
4	Color	White, Grey, Blue
5	Working Pressure	PN10/10kgs/150psi
6	Working Temperature	-10ºC - 50ºC
7	Applications	Water supply, Irrigation, Pools building, etc.

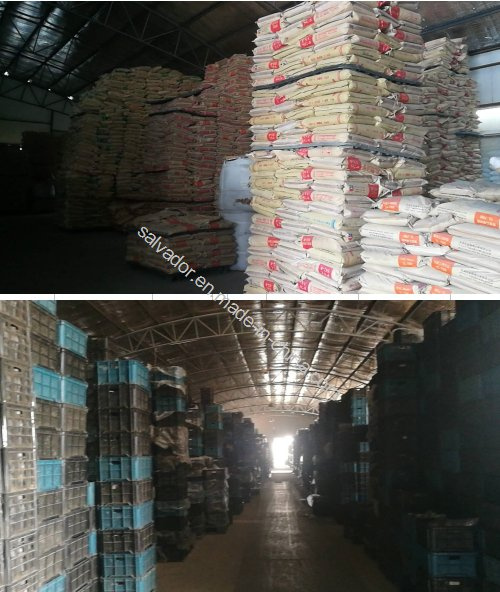

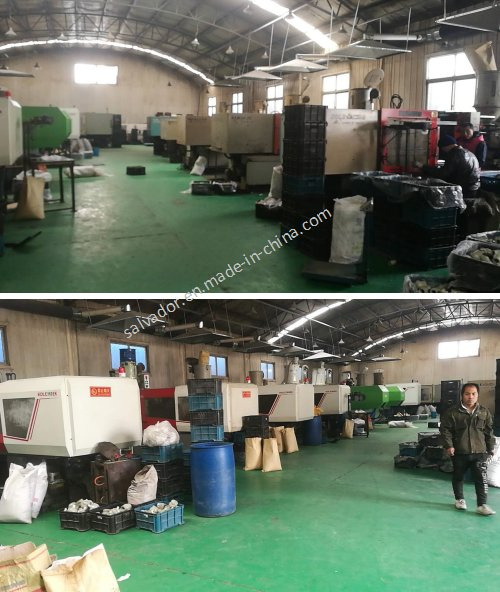

Our Production Department:

FAQ: (Frequently Asked Questions)

1. What is your MOQ?
Our MOQ is usually 10 Ctns/Size.

2. What is your delievery time?
Our delievery is about 30-45days.

3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.

4. Could you provide free samples?
Usually we offer free samples, customer bear the freight cost.

5. Why choose us?

Firstly, comparing with many factories, our prices are more competitive.

Secondly, We 100% test working pressure for ALL our products, and we inspect 5 times every order.
1) Inspect when the ball valves come out from the injection molding machine
2) Inspect when adding O-rings
3) Inspect when installing handle caps
4) Inspect after working pressure test
5) Inspect before packing

Finally, After- Services will be highly-satisfied. Any problems and feedbacks will be responsed efficiently.

SWD PLASTIC (Salvador Industrial Co., Ltd) is a leading and professional manufacturer and exporter for UPVC, CPVC, PPH, PVDF pipes, valves and fittings in China. We stick to the principle of " Quality First, Service First, Continuous Improvement and Innovation to Meet the Customers", and the quality management objective of " Zero Defect, Zero Complaints".

SWD Products are widely used in Agricultural Irrigation, Wastewater Treatment, Aquaculture, Pharmaceutical Industry, Electroplating, Papermaking Industry, Chemical Industry, Mining plant, Power Station, Drainage, and other applications involving corrosive fluid transfer. Most of our products confirm to ANSI, DIN, BS, JIS & TIS standard and have been already sold to United States, Canada, Mexico, Chile, Colombia, Peru, Russia, Saudi Arabia, UAE, Iran, Iraq, Thailand, Philippines, Indonesia, Malaysia etc. With very good reputation.

With rich experience in piping & duct systems, we will provide best solutions and services to you. Welcome to our company visit and discuss business, sincerely hope our professional technology and individual service can win your trust and favor, looking forward to cooperate with friends all over the world, let's do win-win business together!
