UPVC Gray Knife Sliding Gate Valves (DIN Standard / ANSI Standard / BS Standard)
| Price: |
US $ 2.42/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Application: |
Water Industrial Usage |
| Type: |
Valves |
| Material: |
PVC |
| Connection Form: |
Socket End |
| Pressure: |
0.3MPa |
| Usage: |
Irrigation/Pond/Swing Pool |
| Standard: |
DIN Standard / ANSI Standard / BS Standard |
Product Description
PVC SLIDE GATE VALVE (DIN, ANSI, BS)

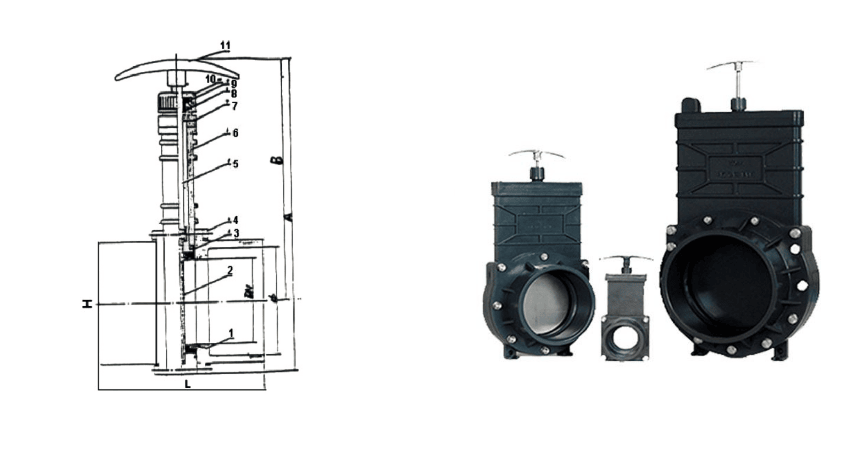

1. Material | NO. | Part | Material |
| 1 | Faucet | UPVC |
| 2 | Valve Disc | ABS/1Cr13/UPVC |
| 3 | Seat Seal | EPDM |
| 4 | Bolt | A2 |
| 5 | Stem | 1Cr13 |
| 6 | Body | UPVC |
| 7 | Cap | UPVC |
| 8 | O-Ring | EPDM |
| 9 | Bushing | UPVC |
| 10 | Lock Nut | UPVC |
| 11 | Handle | UPVC |
2. DIMENSIONS (unit: mm) | SIZE | DN | A | B | Ø | L | H | PN |
| mm(inch) | DIN | ANSI | BS | (Mpa) |
| 40mm(1-1/4") | 32 | 143 | 115 | 40 | 42.16 | 42.16 | 68 | 57 | 0.35 |
| 50mm(1-1/2") | 40 | 173 | 136 | 50 | 48.26 | 48.26 | 98 | 74 | 0.35 |
| 63mm(2") | 50 | 206 | 163 | 63 | 60.32 | 60.32 | 108 | 86 | 0.35 |
| 75mm(2-1/2") | 65 | 242 | 190 | 75 | 73.02 | 75.02 | 124 | 104 | 0.35 |
| 90mm(3") | 80 | 312 | 222 | 90 | 88.9 | 88.9 | 128 | 150 | 0.35 |
| 110mm(4") | 100 | 350 | 260 | 110 | 114.3 | 114.3 | 132 | 170 | 0.35 |
| 160mm(6") | 150 | 510 | 380 | 160 | 168.28 | 168.28 | 172 | 242 | 0.35 |

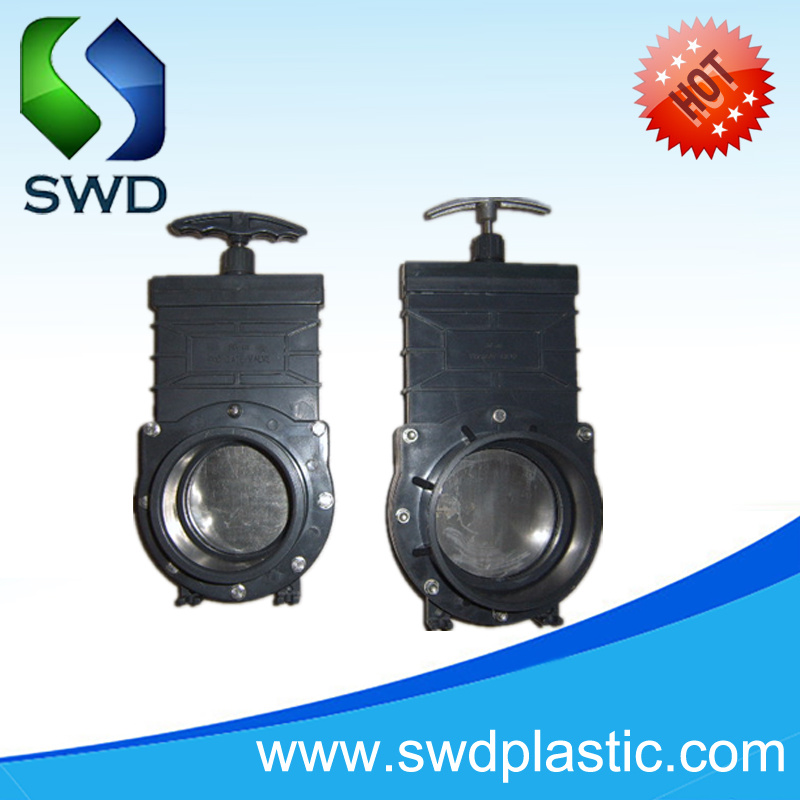

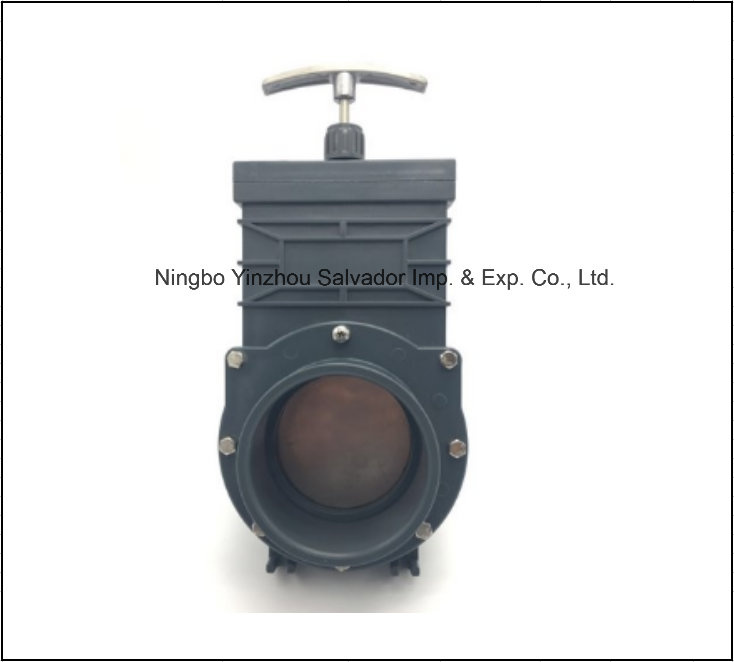

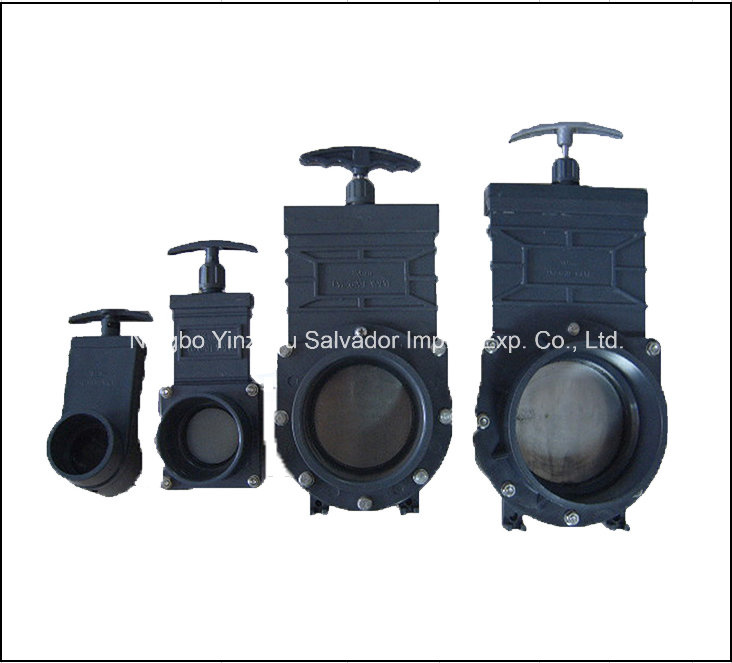

3. Pictures Show
