| Prod Model: |
HX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Quality Resin Diamond Continuous Grinding Whe |
| Outside Diameter: |
130mm.150mm |
| Inside Diameter: |
12mm-70mm |
| Custom Made: |
Yes |
| Material: |
Diamond |
| Abrasive: |
Superabrasive |
| Shapes: |
Edge Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Surface Grinding |
| Grain Size: |
80#-320# |
Product Description

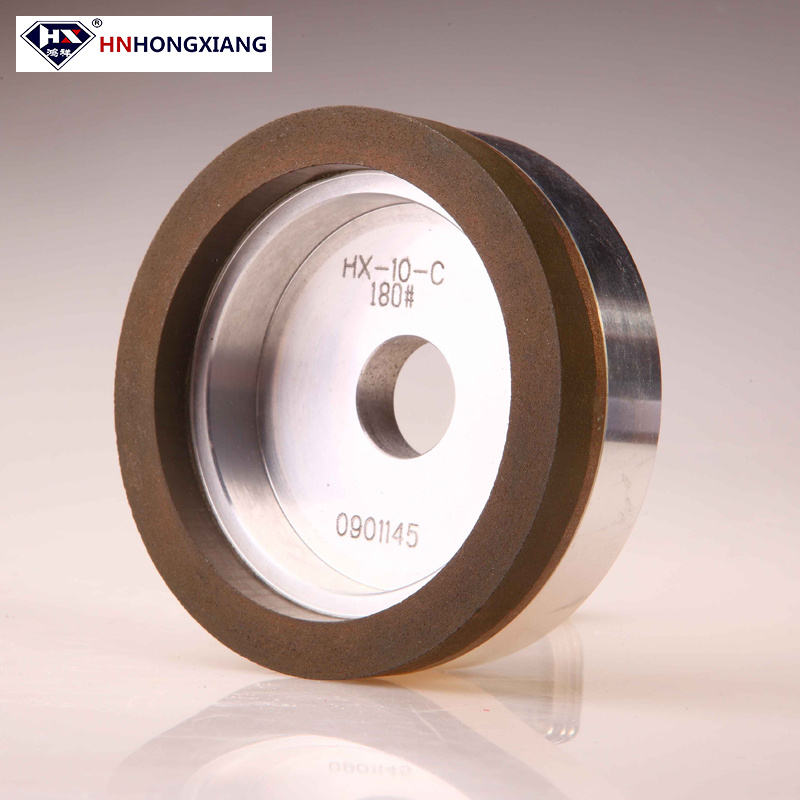

High quality resin diamond continuous grinding wheel for glass:
Zhecheng Hongxiang Superhard Material Co., Ltd
Are the manufacturer to make all kind of diamond grinding wheels for straight line and bevelling machines.
The abrasive metal and resin is combined by vacuum sinter and hot-process to create diamond grinding wheels of different sizes. These diamond wheels are used for first shape grinding of glasses, quartzs, stones, chinawares and etc. They have a very high cutting power and low wear rate and assure the consistency of the shape and size.
Glass processing Wheel 3 Similar
A)Competitive quality and price
B)Strengthen abrasive disc
C)Strictly production processin
1, Two types, rough and fine.
2, working fast
We are wholesales of the different parts of the glass machines, especially for the glass grinding wheels
Mainly used for glass edging machine, processing and grinding different thickness and shape of glass hypotenuse, straight edge etc
Metal/Resin bond diamond grinding wheel
Shapes: Bowl, cup, straight
Base ingredient: Steel, Aluminium,
Hongxiang Company professionally produce kinds of grinding wheels to set on the glass equipments for grinding and polishing.
If you need some special wheels, pls give us your DWG.
| Diamond grinding wheel |
| Name | Diameter | Width | High | Hole | Grit |
| all segment wheel | 175 | 15 | 10 | 10-50 | 80#-400# |
| 150 | 15 | 10 | 10-50 | 80#-400# |
| 130 | 10 | 10 | 10-50 | 80#-400# |
| Outer segment wheel | 150 | 8 | 10 | 10-50 | 80#-400# |
| Internal segment wheel | 175 | 8 | 10 | 10-50 | 80#-400# |
| 175 | 15 | 10 | 10-50 | 80#-400# |
| 150 | 10 | 10 | 10-50 | 80#-400# |
| Continuous wheel | 150 | 8 | 8 | 10-50 | 80#-400# |
| 150 | 6 | 10 | 10-50 | 80#-400# |
| 130 | 10 | 10 | 10-50 | 80#-400# |
| 130 | 8 | 8 | 10-50 | 80#-400# |
| resin diamond wheel | 150 | 15 | 12 | 10-50 | 80#-400# |
| 150 | 15 | 10 | 10-50 | 80#-400# |
| 130 | 10 | 10 | 10-50 | 80#-400# |
