High Quality Semi Automatic Box Machine Die Cutter
| Price: |
US $ 59999-99999/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
300-D Type |
| Usage: |
Paper Making Machine |
| Using: |
Die Cutter |
| Belonging: |
Paper Machine |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Vertical |
| Die Cutting Tool: |
Steel Blade |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Paperboard,Cardboard |
Product Description
About us:
1.We are the professional manufacturer of packaging machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.

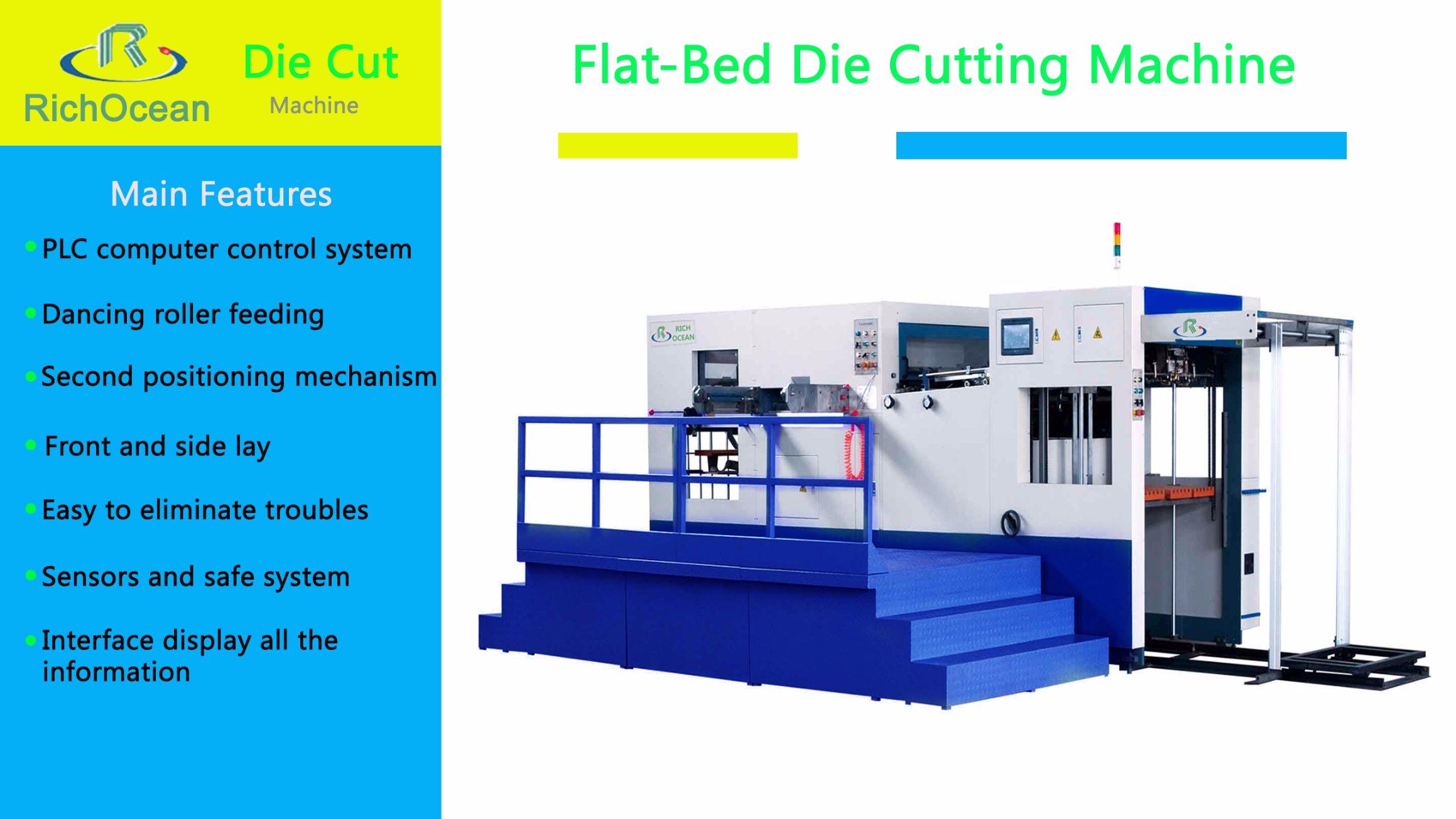

Main configuration:
1.The machine adopts PLC computer control system. The computer display and man-machine interface touch screen can detect and display the running state of machine in time, convenient for troubleshooting adjustment, problem of large format.
2.Machine equipped with five foil driving rollers in both longitudinal and lateral directions, making stamping process more reasonable. The three longitudinal and two lateral stepping rollers are controlled by five servo motors, they can independently of simultaneously achieve leapfrogging and stepping functions. The machines cater to various kinds of stamping plates saving foil material as well as enhancing stamping effect and quality.
3.Heating plate adopts heat-resistant cast iron material, no deformation. It divides into 12 areas with separate temperature control. This design is convenient for stamping plate installation and suit for different stamping control. The pneumatic lock plate device makes repeat positioning precisely and easy to operate.

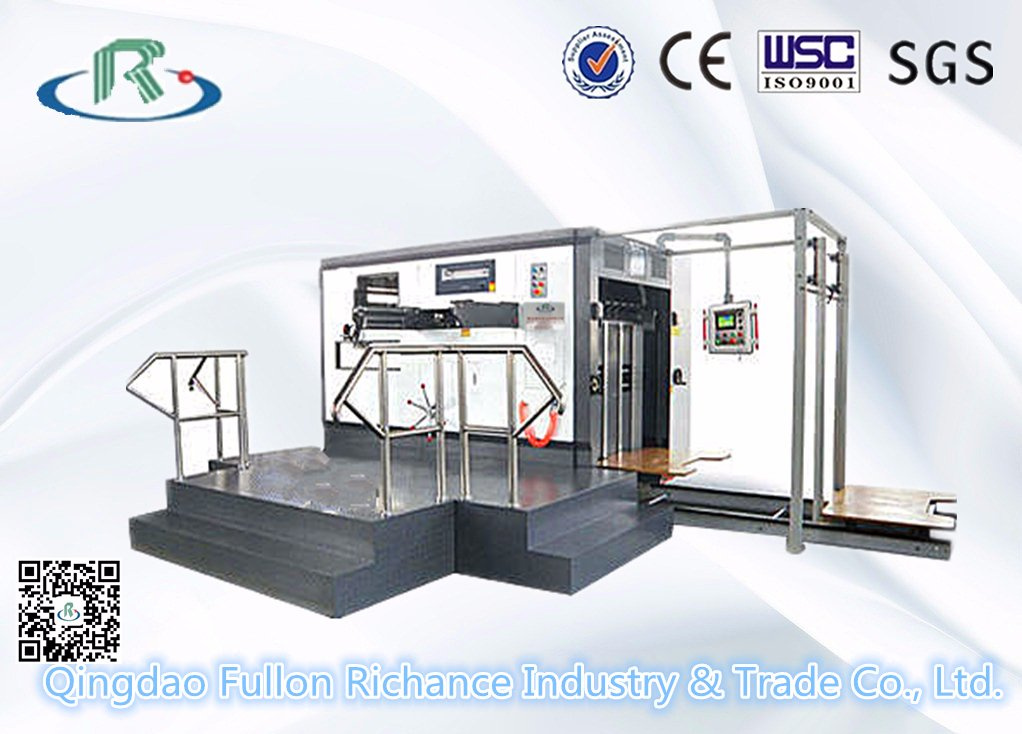

4.Semi-Automatic Die-Cutting Machine is a special equipment applying to die-cutting of advanced colored boxes made of paper.
Technical parameters| Model | 300-DA | 300-DB |
| Max paper size | 1060x760mm | 1300x930mm |
| Min paper size | 400x370mm | 550x500mm |
| Max cutting size | 1040x750mm | 1280x920mm |
| Max. Die-cutting Pressure | 300N/cm2 | 300N/cm2 |
| Paper Processed Cardboard | 120-2000g/cm2 | 120-2000g/cm2 |
| Corrugated paper | 5 mm(Max. thickness) | 5 mm(Max. thickness) |
| Max cutting speed | 4500 sheets/h | 4500 sheets/h |
| Max. Feeding Pile Height | 1400 mm(above the level) | 1400 mm(above the level) |
| Max. Delivery Pile Height | 1200 mm(above the level) | 1200 mm(above the level) |
| Dimensions | 4100x2100x2200mm | 4200x2250x2250mm |
| Total weight | 14500kg | 15500kg |
| Total Power | 13.5kw | 14.5kw |
Advantage:
1.we promise you excellence in both quality and after-sale service.
2.we guarantee delivery your order in time.
3.as we are factory,we can provide you highest quality with the most competitive price.
4.If you are interested in our products and have any questions, please let us know, we will try our best to help you!
Thanks for your visit!
Qingdao Richocean Industry Co., Ltd is located in west coast of the Qingdao which is one of the most beautiful city in China, it is a wholly owned subsidiary of Jiaonan general machinery factory which was build in 1982 and one professional manufacturer for textile machinery series productions. Richocean Industry joined paperboard, carton machinery and cardboard printing machinery manufacturing industry in 1991. The company covers an area of 60 acres, existing production workshop 18000 square meters and more than 300 employees. Since the plant founded thirty years, company has been continuously develop and expand. We have perfect quality assurance system, in the same industry in China, we took the lead through the ISO9001 international quality system certification. Our Products sell well in more than 20 provinces and cities nationwide, also in western Europe and other countries.
Richocean has strong technical strength, sophisticated production equipment, owning vehicles, milling, planing, boring and other machining equipment more than 100 sets, and there are two manufacturing bases in different city of China. Richocean also has domestic most advanced tungsten carbide corrugated manufacturing and repair center, large computer-controlled grinding machine corrugated stick, intermediate frequency quenching furnace, and large cylindrical grinder, etc. Full set of advanced production processing and testing equipment.
Richocean Industry focused on technological progress, product upgrading, gradually formed a corrugated board production line, single-sided machine, printing (slotting, die cutting) series, 50 varieties, more than 100 specifications of the product system, could meet different level user' S needs. In 1996 Richocean launched three, five, seven corrugated board production line, and obtained national patent products. We independently developed computer control automatic high speed printing, slotting, cutting machine with high speed, high accuracy etc technical advantages, gain global market' S acclaim and recognition.
Richocean Industry adhere to the "integrity-based, scientific and technological innovation", formed to the quality of survival, integrity and development, as customers for God' S business philosophy. We will adhere to scientific and technological progress, pay close attention to market, continuously developing new products to meet the new requirements of customers.
Qingdao Richocean Industry Co., Ltd all the staff will use frist-class products and sincere service, hand in hand all the friends develop together!
