| Prod Model: |
G10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
G7 G10 G15 |
| Type: |
Hand Hold |
| Plug And Feathers: |
Lengh 260mm-400mm Dia 32 -34mm |
| Impact Force: |
10 Kg |
| Air Consumption: |
1.53 L/ Min |
| Air Pressure: |
0.3 -0.6 MPa |
Product Description
Its Plug and feathers: Length 400mm*Φ34 or Length 600mm*Φ34, Length 400mm*Φ32 or Length 600mm*Φ32
One complete machine including a pneumatic hammer and one set of forge plug and feathers (3parts),
above is major size , the more size are available according to your special request.

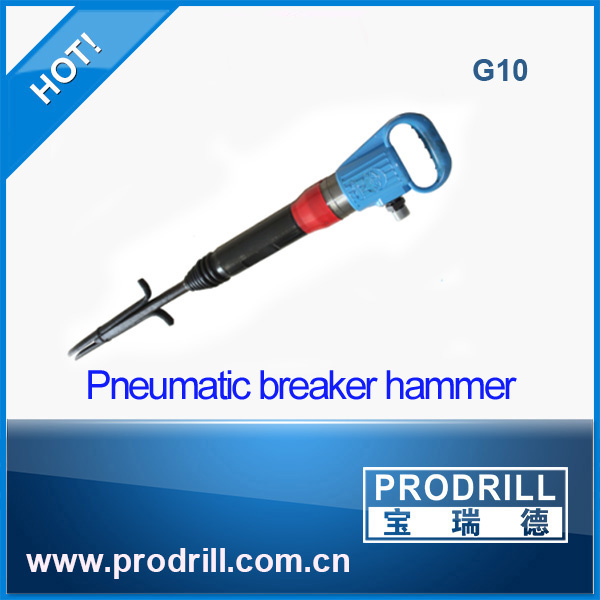

G7 G10 G15 Hand hold pneumatic hammer splitter breaker air pick
| Model | G7 | G9 | G10 | G15 | G20 | G35 | G90 |
| Weight | 7.2kg | 9.5Kg | 10.6 Kg | 12Kg | 20kg | 20Kg | 42Kg |
| Cylinder Dia. | 35mm | 37mm | 38 mm | 42mm | 40mm | 45 mm | 67 mm |
| Pituitary trip | 120mm | 130mm | 155 mm | 160mm | 170mm | 160 mm | 148 mm |
| Working pressure | 0.63 Mpa | 0.63Mpa | 0.63 Mpa | 0.63MPa | 0.63 Mpa | 0.63MPa | 0.63MPa |
| SCFM | 20L/S | 25L/s | 20 L/S | 26.5L/s | 27L/S | 22.5L/s | 41 L/S |
| Inner Dia. | 19mm | 19mm | 19mm | 16mm | 19mm | 19mm |
Description:pneumatic splitter is also called pneumatic hammer, air hammer, pick hammer, etc.
This kind of machine is designed for block secondary splitting or squaring specially, it can be instead of the dynamite blasting or traditional manual splitting device completely. It can be widely used for reinforced
concrete breaking or removing, such as the construction building part demolition, bridge dismantling,
demolishing underwater etc.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
