| Prod Model: |
GQ40/45/50 |
| Warranty: |
12 Months |
| Function: |
Cutting Steel Bar, Deformed Bar etc |
| Name: |
Steel Cutting Machine/Rebar Cutter |
| Cutting Bar Diameter: |
Round Bar(6-50mm); Deformed Bar(6-40mm) |
| Weight: |
400-650kg |
| Motor Power: |
3-4kw |
| Structure: |
Compact Structure, Small Size, Easy Movable |
| Certificate: |
ISO |
| Voltage: |
220-440V |
Product Description
High Quality Steel Cutter Machine/Round Steel Bar Cutter/Rebar Cutter
Features of Stee Cutter Machine/Rebar Cutter:
1. Enhanced machine rack, small volume, compact structure, solid and reliable.
2. Good lubricating property, adopt closed gear box, use the gear splashing to lubricate. It could be continuous work more than three months after adding enough (8-12kg) gear oil.
3. Less function loss because of the lubrication improvement. The gear section adopts rolling bearing, less resistance. Compared with same type cutting machine, one third load power saving.
4. Adopt high rigid cutting head, connecting rod and high speed national standard motor, guaranteed a more stable quality and longer service life.
5. Convenient to be moved and maintenance.
Technical Parameter of Steel Cutter Machine/Rebar Cutter| Model No. | Cutting Diameter
(mm) | Cutting Speed
(times/min) | Motor Power
(kw) | Cutting Length
(mm) | Dimension
(L*W*H)
(mm) | Weight
(kg) |
| Round Bar | Deformed Bar |
| GQ-40A | φ6-φ38 | φ6-φ32 | 32 | 3 | 34 | 1370*500*750 | 420 |
| GQ-40B | φ6-φ38 | φ6-φ32 | 32 | 3 | 34 | 1300*480*700 | 400 |
| GQ-40C | φ6-φ40 | φ6-φ32 | 32 | 3 | 54 | 1370*500*700 | 450 |
| GQ-45D | φ6-φ45 | φ6-φ36 | 54 | 3 | 34 | 1370*500*750 | 480 |
| GQ-45D Cutting diameter for angel bar: 63*63mm |
| GQ-50A | φ6-φ48 | φ6-φ36 | 28 | 4 | 44 | 1400*480*850 | 530 |
| GQ-50B | φ6-φ48 | φ6-φ36 | 28 | 4 | 44 | 1400*480*850 | 500 |
| GQ-50C | φ6-φ50 | φ6-φ40 | 33 | 4 | 44 | 1430*480*860 | 650 |

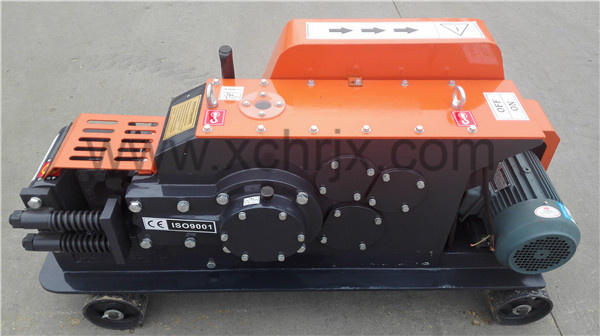

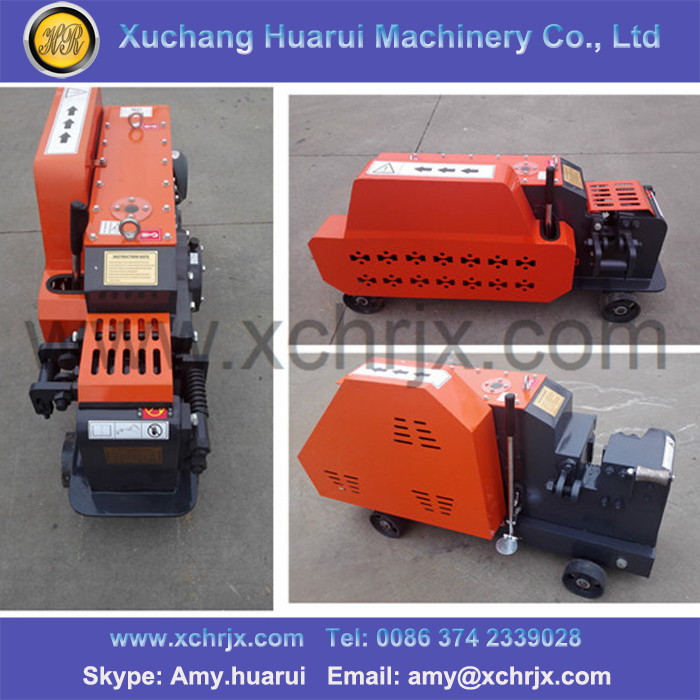

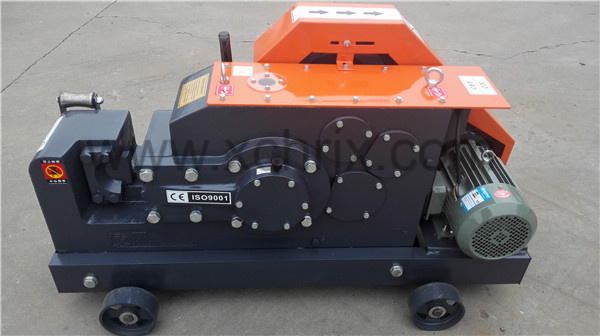

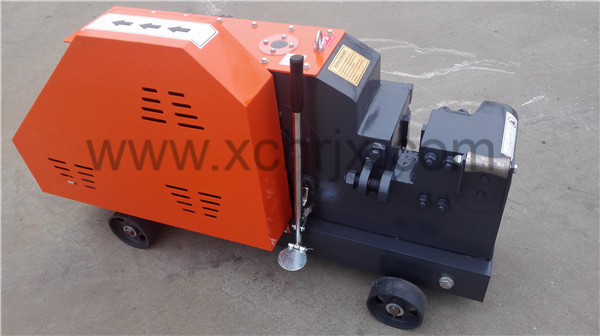

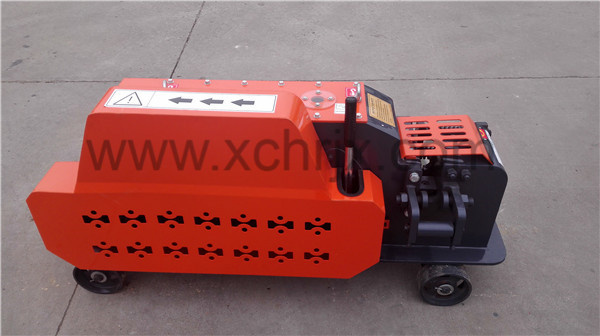

GQ-45D steel bar cutting machine not only can be applied to cut the normal carbon steel rod, hot rolled steel and deformed bar in machine processing and construction projects, but also suit for angel bar steel diameter 63*63mm.Pictures for Show:

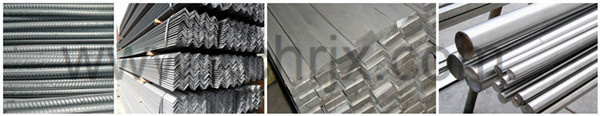

Cutting Steel Bar Tyre:
Packing and Shipping:
