| Prod Model: |
QQJ-40/QTJ-390/QKJ358 |
| Name: |
Tyre Cutting Machine |
| After Sales Service: |
Engineers Available to Service Machinery Overseas |
| Raw Mateial: |
Waste Tyre/Rubber Tyre |
| Power: |
4kw |
| Capacity: |
40PCS/H |
| Work Range: |
650-1250mm |
| Dimension: |
1800*1300*1600mm |
| Weight: |
650kg |
Product Description
Tyre cutting machine/tire sidewall cutter/tire ring cutter

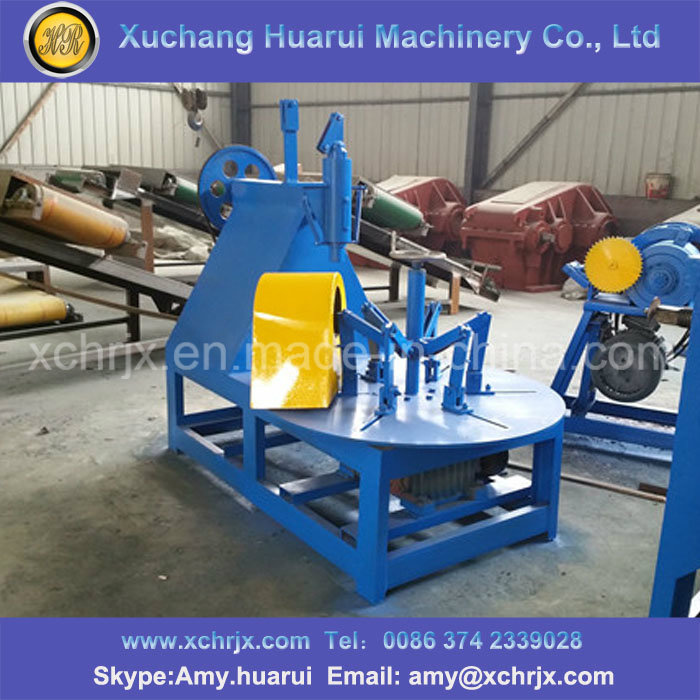

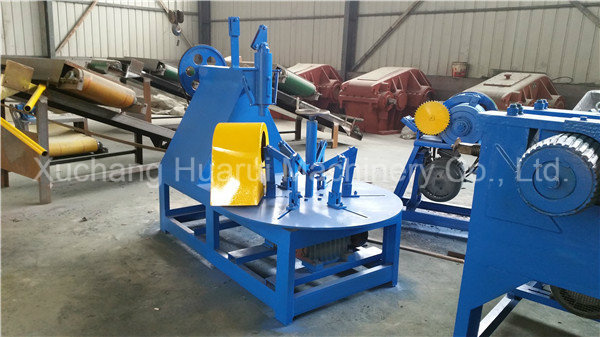

1. Tire Circle Cutting Machine is an alone accessory machine, it puts the tire which is greater than 650 type (both nylon and steel wire) flat on the machine, locking tire inside opening through up and down locking system, then putting alloy tools to target to the place of disintegration of tire to cut off the mouth and nation of tire, finished in 3 minutes| Name of Product | Motor Power | Weight | Capacity | Specification | Overall Dimension |
| Tire Circle Cutter | 4KW | 650KG | 40pcs/h
(steel and nylon wire) | 650-1250mm | 1.8m*1.3m*1.6m |

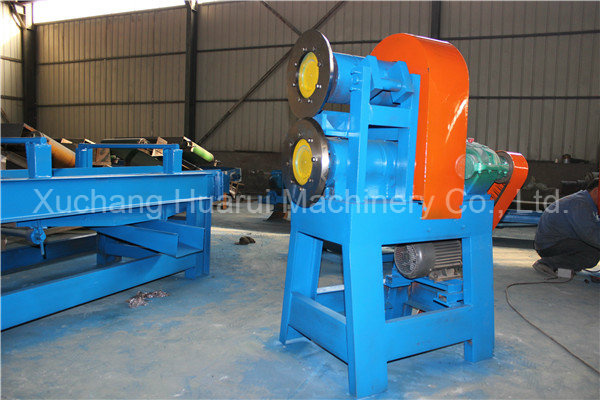

2.Steel Wire Separator is used to separate the steel wire from tire ring. The main working part of this machine is two relative rotary roll shafts with the same speed. When tire circle cut into the middle of two rollers, it will be extruded by roll shaft, at the same time, be squeezed, Sheared and tear by the two relative rotary rollers. And finally complete the separation of the steel wheel by many times.
| Name of Product | Motor Power | Weight | Capacity | Overall Dimension |
| Steel Wire Separator | 11KW | 1300KG | 100pcs/h | 1.2m*1.4m*1.4m |
3. Tire Strip Cutting Machine make use of two round special cutting tools to combination running cutting. It can cut the tire of circle cutting into 3-5cm wide strip, to use for dicer cutting. The material of this machine's knife disk is special alloy structural steel (scientific name: Nine-chrome-silicon), diameter of knife disk isΦ390mm, hardness is 58-62GrS, more durable. With the hand grinding wheel cast when not sharp, power is 4kw, revolting speech is 45r/min, shape dimension: 1.3m*0.8m*1.65m. | Name of Product | Motor Power | Weight | Capacity | Strip Specification | Overall Dimension |
| Tire Strip Cutter | 4KW | 850KG | 2.5T/h | 50*80mm | 1.3m*0.8m*1.65m |
4. Tire Block Cutting Machine is prepared for the crush of host machine, Not only it makes the cutting strip-type waste rubber cut into about 3*5cm small pieces, but also can enter into host machine again through mutual use between sword and fixed knife, convenient to feed, high output and won't damage roller easily, power is 5.5kw, revolting speech is 380r/min,shape dimension: 1m*0.8m*1.4m. To pay attention to the space between sword knife and fixed knife when the machine is in operation, best to keep at around 0.1mm, so that the steel wire can be cut off.| Name of Product | Motor Power | Weight | Capacity | Dicer Specification | Overall Dimension |
| Tire Slice Cutter | 5.5KW | 800KG | 0.8T/h | 30*50*80mm | 1m*0.8m*1.4m |

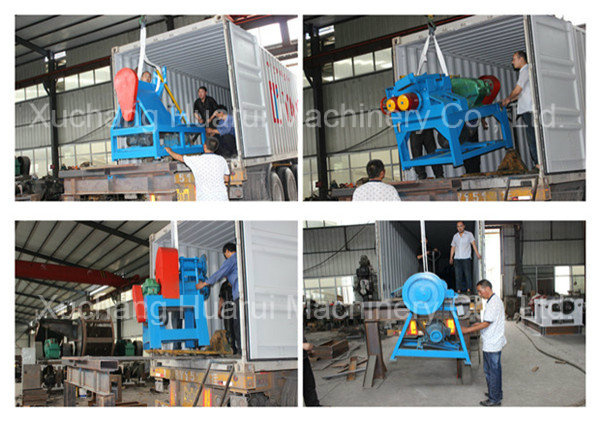

Loading and Shipping:
Xuchang Huarui Machinery Co., Ltd. Was established in 1990, mainly engaged in the R&D and manufactures nail making machine, waste tire recycling machine and auxiliary equipment.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. Has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are full automatic nail making machine, waste tire recycling machine, wire drawing machine, rebar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
