| Prod Model: |
YG |
| Drilling Depth: |
>40m |
| Open Hole Dia.: |
60-150mm |
| Rock Hardness: |
F=6-20 |
| Travelling Speed: |
2.5km/H |
| Climbing Ability: |
30degree |
| Power: |
Diesel Engine |
| Wright: |
280-480kg |
| Diesel Tank Capacity: |
70L |
| Oil Tank Capacity: |
109L |
| Diesel Engine Power: |
3-5.35kw |
Product Description

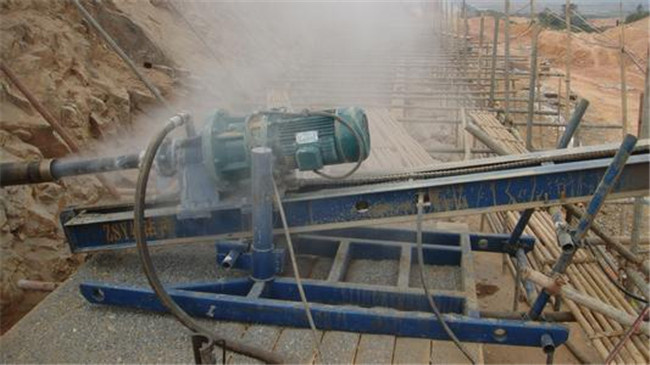

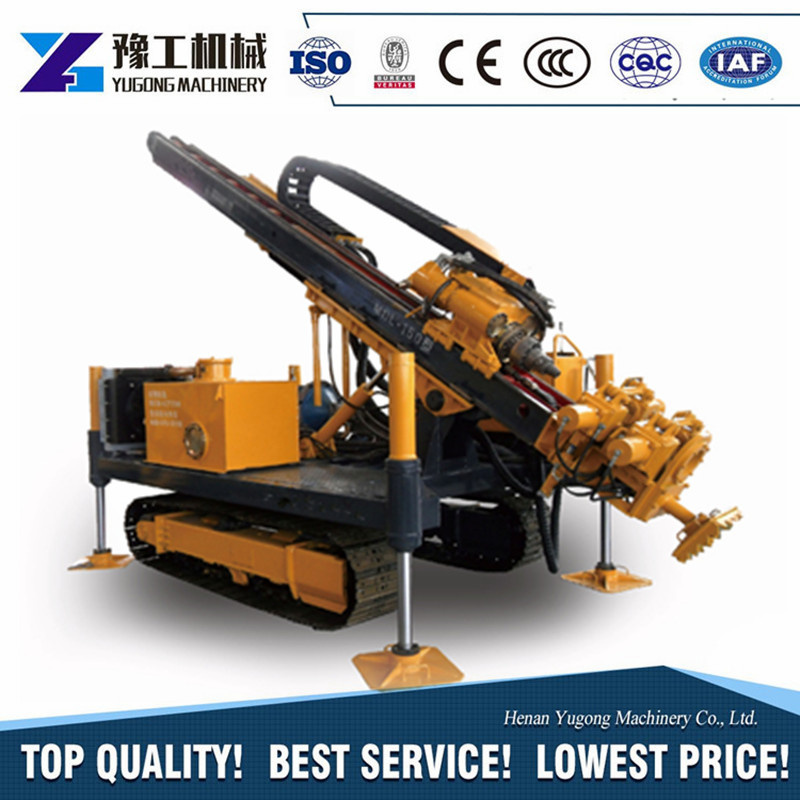

Description of small anchor drilling rigDTH Drilling Rig is mainly used to drill rocks, stones, floor, etc. in mining and road construction, water conservancy, national defense and other projects. It can work well in rugged terrain. It's your necessary and ideal machine in drilling work.
1. Power station, highway, railway mountain slope treatment, anchor cable reinforcement.2. Tunnel pipe shed advance support, subway, underground supermarket etc.3. Foundation pit cable-stayed pile anchor cable, anti floating anchor rod.4. Ground source heat pump wells, sub-grade strengthening.5. Dam foundation and dam body anti-seepage treatment, drainage hole.6. Mines and quarries blasting hole, micro pile hole etc.
Feature of small anchor drilling rig1.Full hydraulic power head 2.Widely used in Tunnel construction, water conservancy, railway and road side slope3.For anchoring hole, anchor rod..4.Convenient adjust mechanism for upward and downward. The hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles.5.Power components:3-phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig.6.Centralized control bench:
The control bench far from drilling rig can protect the safety of operator. The centralized control metal stick makes the controlling of drilling rig easy and convenience. 7.Compact hydraulic station:Radiator can reduce the hydraulic oil temperature effectively to keep hydraulic oil temperature under suitable working status. The electric control box can protect the electric motor to operate safely.Technical parameter of small anchor drilling rig| Drilling rig model | YGM70G |
| bore depth | 35~100m |
| bore diameter | 110~230mm |
| drilling rod diameter | Φ76 x 1500mm, Φ89 x 1500mm |
| bore dip angle | 0~90 |
| power head rotating speed | 0~50rpm |
| power head torque | 3900Nm |
| propulsion stroke | 1800mm |
| Mast stroke | 500mm |
| max. lifting force | 30KN |
| max. propulsion force | 25KN |
| electric motor power | 22kw |
| weight | 1400kg |
| overall dimension | 3100x1000x1500mm |
Our services1.Any inquiries will be replied within 12 hours.2.Professional manufacturer, Welcome to visit our factory at any time.3.High quality, fashion designs, reasonable & competitive price and fast lead time.4. Protection of your sales area, ideas of design and all your private information.5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.Company Information
packaging &shipping1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Contact us
Henan Yugong Machinery Co., Ltd., located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on. Our products include equipments of different fields, highways, bridges, tunnels, culverts of metros, mining, coal mines and non-coal mines. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

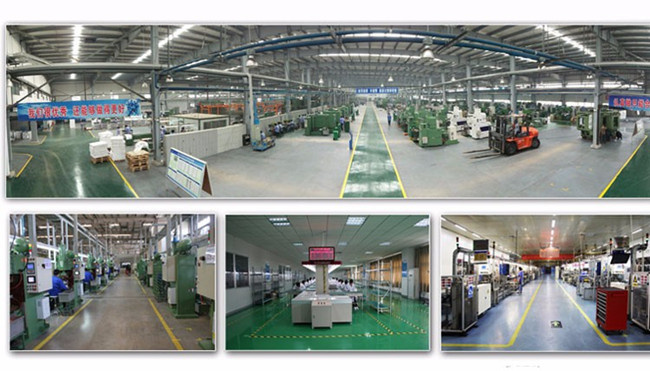

Our factory have 20 years of manufacturing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. There are more than 500 employees in our company, including more than 30 senior technical staff and 30 international sales persons. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.
We are warmly looking forward your long-term friendly cooperation, please kindly contact us any time you need these machines.
