High Quality Tungsten Carbide Twist Drill Bits for Steel

Prod Model:	D-JF11801-0800
Process Usage:	Metal-Cutting CNC Machine Tools
Performance Classification:	High-End CNC Machine Tools
CNC Device Constituted:	Hardline CNC System
Movement Method:	Contour Control
Control Method:	Closed-Loop Control
Material Analysis:	89%Carbide, 10% Co and 1% Others
Processing And Usage:	CNC Machine Tool
Micro Grain:	0.6-0.8um
Export Markets:	Global
Precision:	High Precision
Material:	Carbide Alloy

Product Description

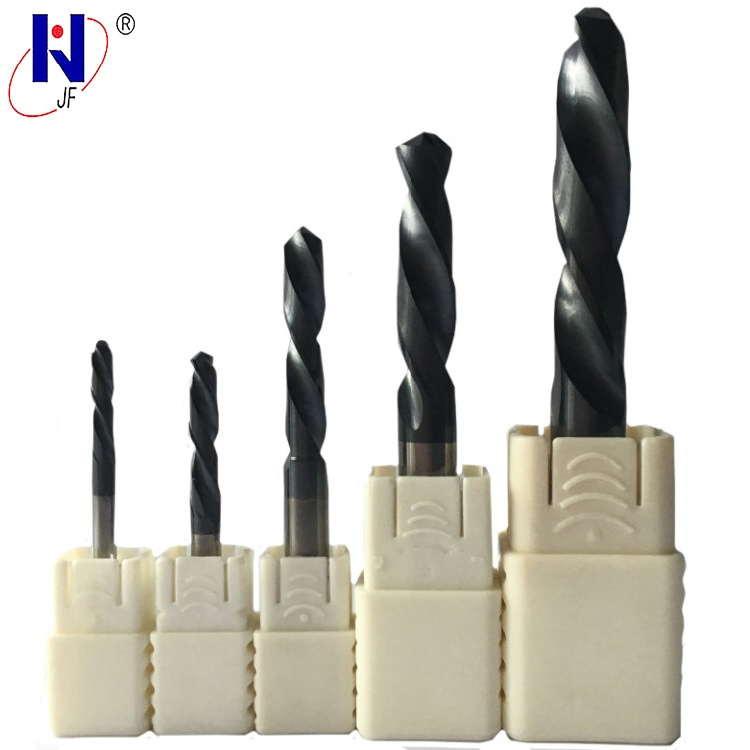

Manufacture Tungsten Carbide Twist Drill Bits With Coated

1. Specifications
- Chemical composition: 89% Carbide, 10% Co, 1% other material
- Physical and machinal properties:
- Density: 14.10-14.45g/cm3
- Hardness: 91.5-92.5HRA
- Flexaral strength: 3500-4000N/mm2
- Grain size: 0.6-0.8 um
- Working material for steel and high speeding cutting;
- Any your drawings design are acceptable;

2. Raw Materials
- SANDVIK of Sweden;
- Teagutec of Korean;
- Kennametal of American;
- Guhring of Germany;
- YG10X of Zhuzhou China;
- WC25F of Taiwan;

3. Our Workshop and Advanced Equipments
- Walter CNC machine from Germany;
- ANCA CNC machine from Australia;
- Guhring detecting instrument from Germany;
- MICHEAL DECHAL CNC Machine from Germany;

4. Our advantages:
- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision;
- Our carbide end mills have long usage life lasting in hardened steels,
- Every product will inspected by Zoller Machine;
- Special CNC solid tools with high quality/ometitive price/good service;

5. Packages
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters,   print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.

6.Delivery Time
In general,within 7-15 days after received your deposits.
According to the quantity. We are located in Changzhou city of Jiansu China.5 km away formChangzhou Airport and 200 km away form Shanghai. The transportation is very convenient.

7.Applied Fields
Used for rod mill such as cement plant, electric power plant, mine, quartz sand plant, silica sand plant, sand aerated industry, coal chemical industry, gas concrete plant, etc.

8.Characteristics
A) Uniform hardness
B) No rupture
C) Even wearing
D) No bending

9.Our Service
PaymentTerm: T/T (Bank tranfer), Western Union, PayPal.
Customized or special cutters are welcome
OEM orders are welcome

10.Contact Information

Tel No.:86-0519-88995836



Solid Carbide 2/4 Flutes Corner Radius End Mill(X-JF16810)
						45	55
CODE	flute diameter	flute length	shank diameter	full length	R	USD	USD
X-JF16810-0300	3	6	4	50	0.5
X-JF16810-0400	4	8	4	50	0.5
X-JF16810-0500	5	15	6	50	0.5
X-JF16810-0600	6	15	6	50	1
X-JF16810-0800	8	20	8	60	1
X-JF16810-0800	8	20	8	60	2
X-JF16810-1000	10	25	10	75	1.5
X-JF16810-1000	10	25	10	75	2
X-JF16810-1200	12	25	12	75	1
X-JF16810-1400	14	25	12	80	2
X-JF16810-1600	16	40	16	80	2
X-JF16810-1800	18	40	20	100	1
X-JF16810-2000	20	40	20	100	2


Solid Carbide Mills

Milling Model Name	Machining material and/or rigidity	V(m/min)	Fz(mm/z)	Ap(mm)	Aw(mm)
Solid carbide key way milling tools	Steel HB 180-280	70-150	0.01-0.06	0.4-0.6D	<=D
	Cast-iron HB 180-220	100-120	0.01-0.06
Solid carbide end mills,corner rabius end millstaper enn mills	Steel HB 180-280	90-160	Milling flutes0.01-0.01	Milling flutes<=D Side milling<=1.5D	Milling flutes<=D Side milling<=0.2D
			Side milling0.03-0.3
	Cast-iron HB 180-220	100-150	Milling flutes0.02-0.15
			Side milling0.06-0.45
Solid carbide ball head end mills	Steel HB 180-280	80-220	0.01-0.08	<=0.4D	<=D
	Cast-iron HB 180-220	280-280	0.02-0.10
Solid carbide taper ball head end mills	Steel HB 180-280	120-170	0.01-0.08
	Cast-iron HB 180-220	250	0.02-0.10


If you are intrested in any details of our products, pls feel free to contact with us!
