| Prod Model: |
GDR-JF3N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
Solid Carbide |
| Processing And Usage: |
CNC Machine Tool |
| Material Analysis: |
89%Carbide, 10% Co and 1% Others |
| Micro Grain: |
0.2-0.8um |
| Precision: |
High Precision |
| Cutting Process: |
Milling Cutters |
| Export Market: |
Global |
| Usage: |
Metal Machining |
| Style: |
Forming Tool |
| Structure: |
Vibration Type |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description
1.Product Description

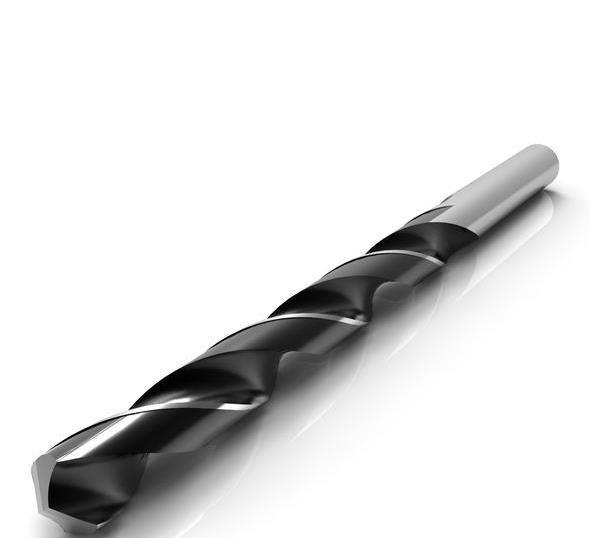

Tungsten Solid Carbide Hollow Twist Drill Bit
| Raw Material Information |
|
| NOR | Co% | HRA | Density(g\cm3) | RTS(N\mm2) | Grain Size(um) | General steel, tool steel, cast iron, stainless steel | Coating |
| ST20F | 10 | 91.7 | 14.4 | 4300 | 0.6 | HRC30°- 45° | TiAIN |
| | | | | | | | |
| GEN | Co% | HRA | Density(g\cm3) | RTS(N\mm2) | Grain Size(um) | Stainless steel, die steel, hardened steel, high temperature alloy | Coating |
| ST25F | 12 | 92.2 | 14.1 | 5100 | 0.3 | HRC45°-55° | TiXCo |
| | | | | | | | |
| SUS | Co% | HRA | Density(g\cm3) | RTS(N\mm2) | Grain Size(um) | Stainless steel, die steel, hardened steel, high temperature alloy | Coating |
| ST25F | 9 | 93.8 | 14.4 | 4500 | 0.2 | HRC55°-65° | AICrN |
| | | | | | | | |
| ALN | Co% | HRA | Density(g\cm3) | RTS(N\mm2) | Grain Size(um) | Aluminum, aluminum alloy, copper alloy | Coating |
| ST11F | 10.5 | 91 | 14.5 | 3800 | 0.6 | HRC15°-25° | Uncoated |
| Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient | |
| AlTiN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 | |
| |
| TiAlN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 | |
| TiXCo | Bronze | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 | |
| NaCo | Blue | <600 °C | 3-5 | 3800 | 1800 °C | 0.4 | |
| AICrN | Silver | <480 °C | 3-5 | 3500 | 1600 °C | 0.5 | |
Application Field:40°Suggest Cutting:Wood,Fiber board,Aluminum,Copper,Iron,Ordinary steel.
45°Suggest Cutting:Aluminum,Copper,Iron,Ordinary Steel,Hard Steel,Stainless Steel.
50°Suggest Cutting:Aluminum,Copper,Iron,Ordinary Steel,Heat Resistant Steel,Stainless Steel,Ti Alloy.
55°Suggest Cutting:Ordinary Steel,Hard Steel, Heat Resistant Steel,Stainless Steel,Ti Alloy.
60°Suggest Cutting:Stainless Steel,Ti Alloy,Hardened Steel,Heat Resistant Steel,Quenched and tempered steel.

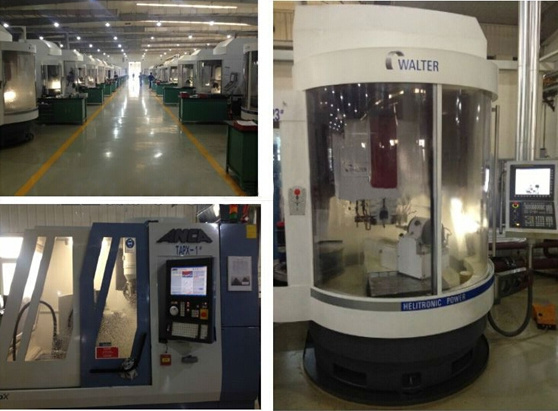

2. Made by All Improt CNC machine.Import from Germany,Australia and Switzerland: Walter Power ,Walter Micro,ANCA,RollomaTic,etc.

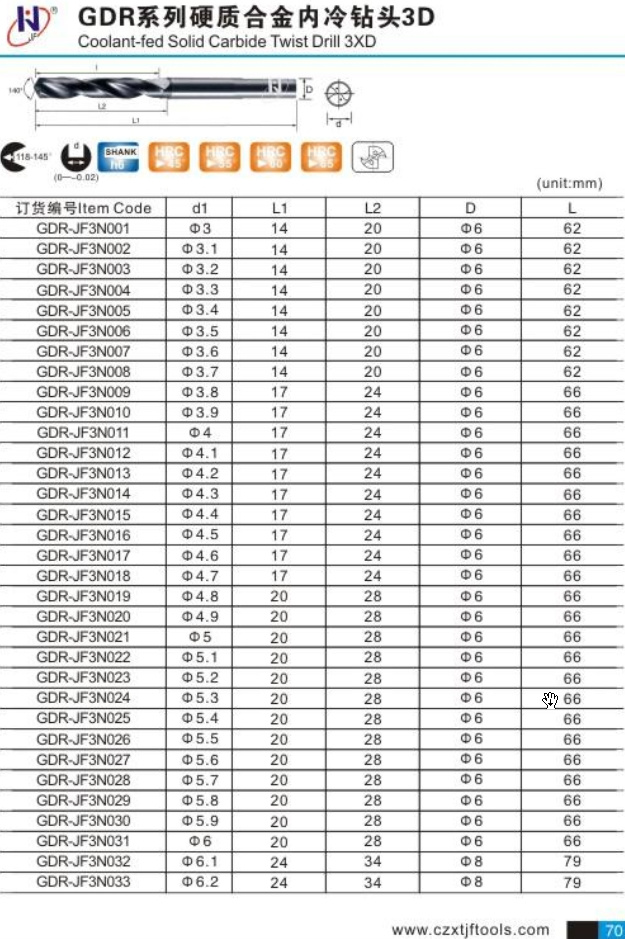

3. We provide the OEM service,the following Specification for your reference.

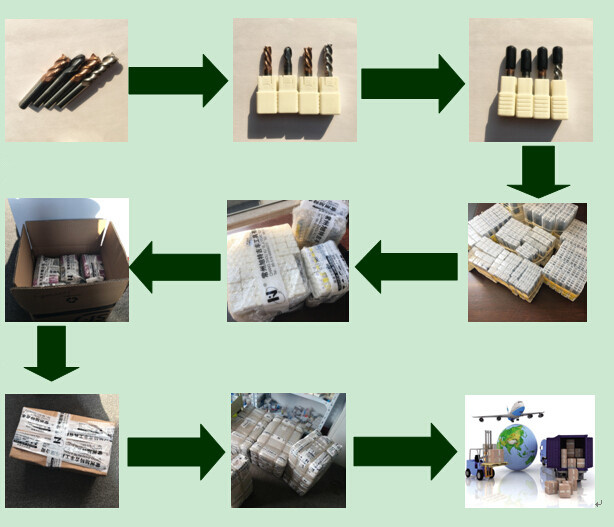

4. Package
1 pc in a plastic tube , 10pcs a group, Sealed with air bubble wrap, pack into bigger carton. Other packing will be accepted according to your require.
5.Shipping details:
Shipping time: 1-3 weeks after the payment confirmed
Shipment Ways:DHL, UPS, FEDEX, TNT, EMS,the port is shanghai ,ningbo ,shenzhen etc. (choose your convenient way) 6. Payment Ways:T/T, Western Union, Paypal, Escrow(Choose your convenient way) Why Choose JF
