| Prod Model: |
GBW |
| Segment Height: |
12/15/20mm |
| Delivery Time: |
10-15days |
| OEM&ODM: |
Yes |
| Customized Mad: |
Available |
Product Description

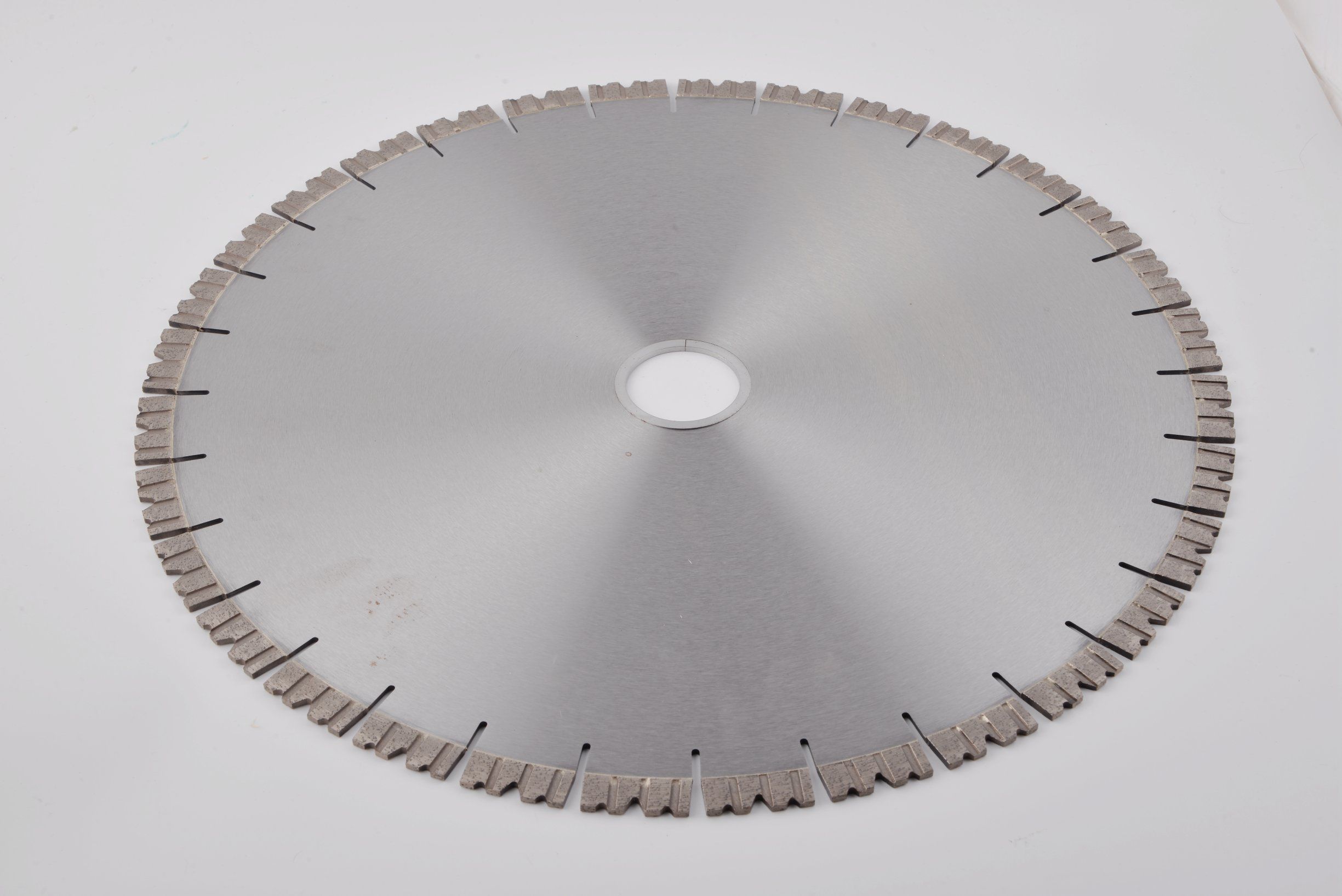

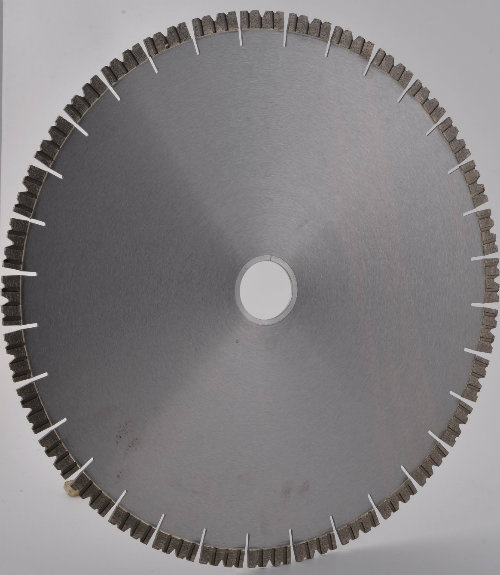

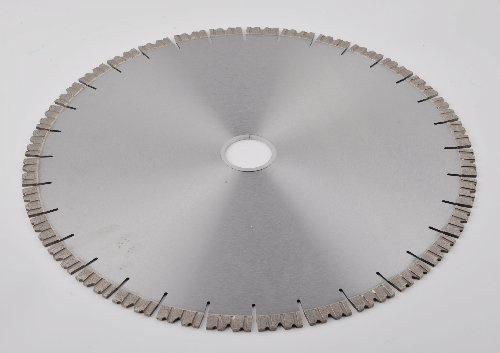

Diamond granite blade is specially used for cutting granite and granite product etc.
| Item No. | Outer diameter(D) | Bore(H) | Segment length(L) | Segment thickness(T) | Segment height(W) | Segment quantity(S) |
| Inch | mm |
| GBW-12 | 12 | 300 | 50/60 | 40 | 3.0(3.2) | 10/12/15/20 | 21 |
| GBW-14 | 14 | 350 | 50/60 | 40 | 3.0(3.2) | 10/12/15/20 | 24 |
| GBW-16 | 16 | 400 | 50/60 | 40 | 3.4(3.6) | 10/12/15/20 | 28 |
| GBW-18 | 18 | 450 | 50/60 | 40 | 3.8 | 10/12/15/20 | 32 |
Bigger diameter and customized made are available.
Silent type are available.
(The silent type means less noises while cutting.)
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:1. Manufacturer with more than 18 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:T/T, Western Union, L/C, Cash
Delivery time:For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Xiamen taiying diamond products Co., Ltd.(xtdp) is a joint venture manufactory, located in the scenic coastal city, xiamen.Xtdp specializes in the research, development, production and sale of diamond tools.
Since 1998, we have brought in the advanced processing technology and equipments from overseas.Moreover, we also have many advanced engineers who are accomplished in diamond tools manufacture, powder metallurgy and heat treatment, with the ability of developing international standard diamond products independently.And we have passed the standard attestation of ISO9001:2000 quality system in 2004.Our products include the tools of sawing, profiling, milling, polishing, drilling, etc, especially irregular-shaped tools.The process range covers the industries of stone, architecture, machinery, and electron, etc.More than 70 percent of our products are exported to Europe, America and southeast Asia, having won very good reputation from our customers.
