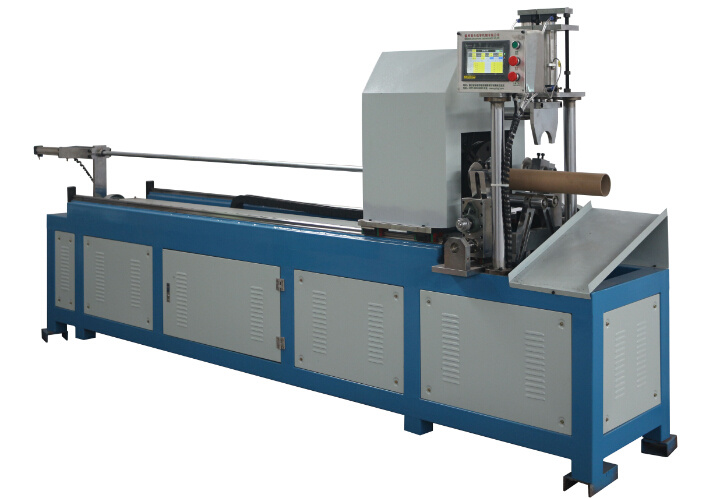

High Speed Core Cutting Machine Kraft Core Cutter
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
JT-SL-2000C |
| Jumbo Tube Length: |
2000mm |
| Paper Tube Inner Dia: |
50-152mm |
| Paper Tube Thickness: |
4-15mm |
| Cutting Length: |
10-2000mm |
| Cutting Speed: |
60 Cuts/Min |
| Turret Movement Speed: |
1.8 M/Min |
| Working Pressure: |
0.6MPa |
| Voltage: |
380V 3 Phase 50Hz |
| Power: |
3kw |
| Cutting Mode: |
Paper Tube Turn; Knives and Axes Do Not Turn |
| Type: |
Spiral Type |
| Gumming Type: |
Double Side |
| Layers Of Roll Paper: |
9 - 16 |
| Reelpipe Speed: |
12 - 18m/minute |
| Certification: |
SGS |
| Condition: |
New |
| Tube Machine Type: |
Paper Core Cutting Machine |
| Wall Thickness Of Paper Tube: |
1mm-15mm |
Product Description

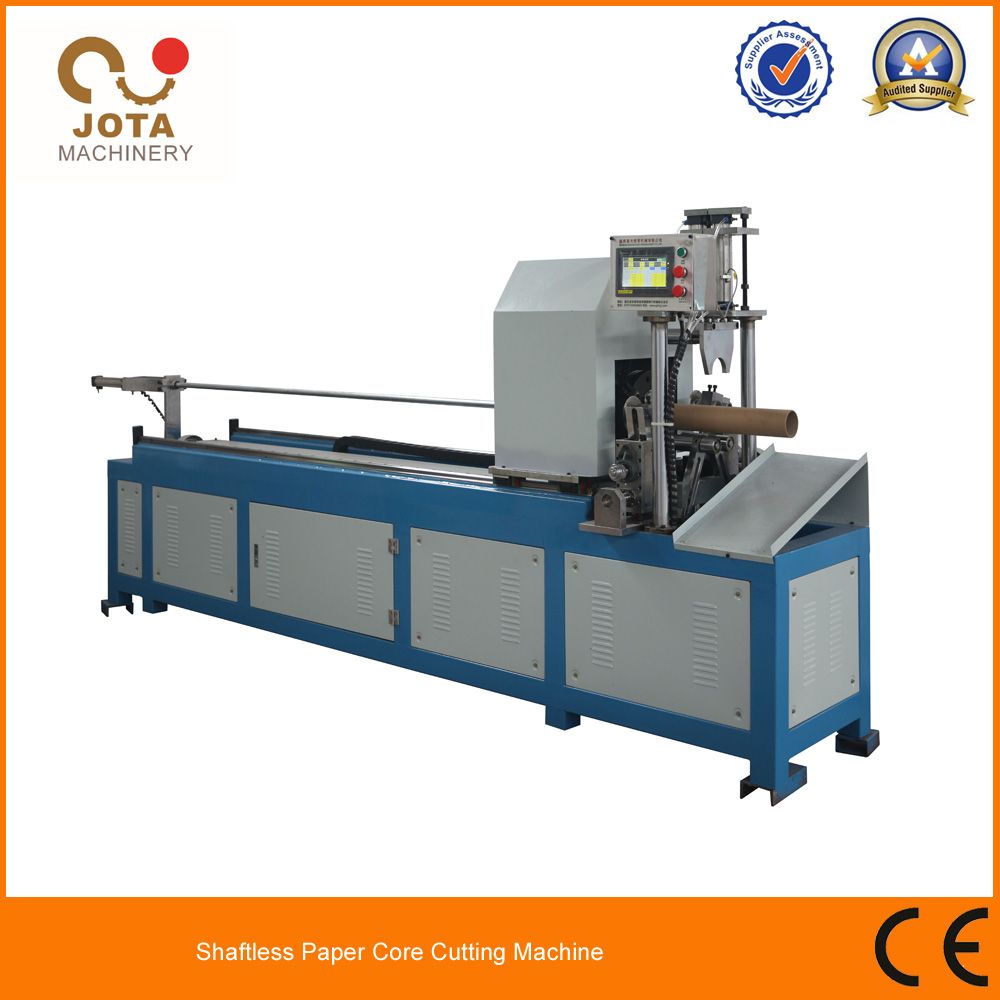

High Speed Core Cutting Machine Kraft Core Cutter
Main Parameters:| Jumbo Tube length | 2000mm |
| Paper Tube Inner Dia | 50-152mm |
| Paper Tube Thickness | 4-15mm |
| Cutting Length | 10-2000mm |
| Cutting Speed | 60 cuts/min |
| Turret movement speed | 1.8 m/min |
| Working Pressure | 0.6Mpa |
| Voltage | 380V 3 Phase 50Hz |
| Power | 3kw |
| Cutting Mode | Paper tube turn; knives and axes do not turn |
| Operator | 1 person |
| Mould | 2 sets |
| Uploading/Unloading | Hand control |
| Dimension | 4000*920*1600mm |
| Weight | 900kgs |

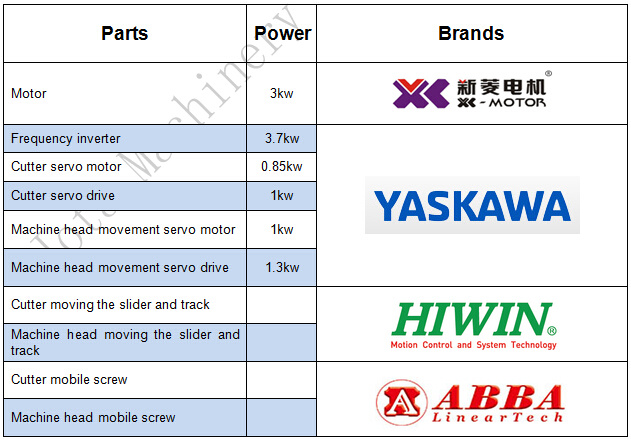

Specification: | Machine adopts Taida PLC(Taiwan) and Xianda HMI(Shenzhen) control system, all the parameters are displayed on the touch screen, and it runs automatically. |
| It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control. |
| It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head. |
| It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head. |
| It adopts double round blades to cutter. |
| It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head. |
| It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head. |

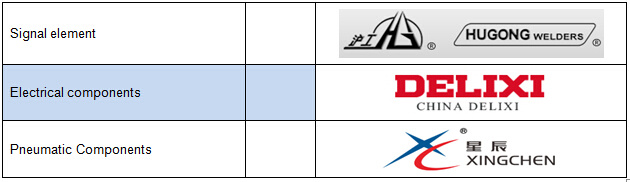

| It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components. |
| Paper tube clamping adopts automatic chucks. |
| Certification | CE,SGS, Gold Supplier, etc. |
| MOQ | 1 set. (More than 3 sets, offer a special discount) |
| Perfect After-sale System | Technicians can service overseas. |
| Prompt Reply | Within 24 hours. |
| Yearly Production Capacity | More than 100 sets. |
| Packing Details | With flexible wrapping and export standard wooden case. |
| Delivery Time | Within 30 days after receipts of 30% payment, the rest 70% paid before shipping. |
| Terms of Payment | T/T, L/C |
| Delivery Clause | FOB Ningbo/Shanghai Port |
| Packaging Details | High Speeding Razor Paper Sheeter Machine is with flexible wrapping and wooden case. It is included one year guarantee time, whole life technical support, a box of tools, two pieces blade and exporting standard wooden case. |
Jota Machinery Industrial Co., Ltd is a long established engineering company combined with science, research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines to satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards, such as thermal paper slitting machine, paper slitter rewinder, vertical slitting rewinding machine, paper core making machine, paper core cutting machine, paper sheeting machine, A4 paper packing machine, rotary paper sheeter, flexo label printing machine, rotogravure printing machine, die cutting machine, labeling machine, BOPP tape slitting machine, BOPP tape cutting machine, coating machine, paper punching and folding machine, corona treatment machine, water-glue film lamination machine, paper core curling and grooving machine, paper core polishing machine, die cutter & embosser machine, die cutting and creasing machine, plate mounting machine, coating machine etc. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us to win a mutual benefit future.
