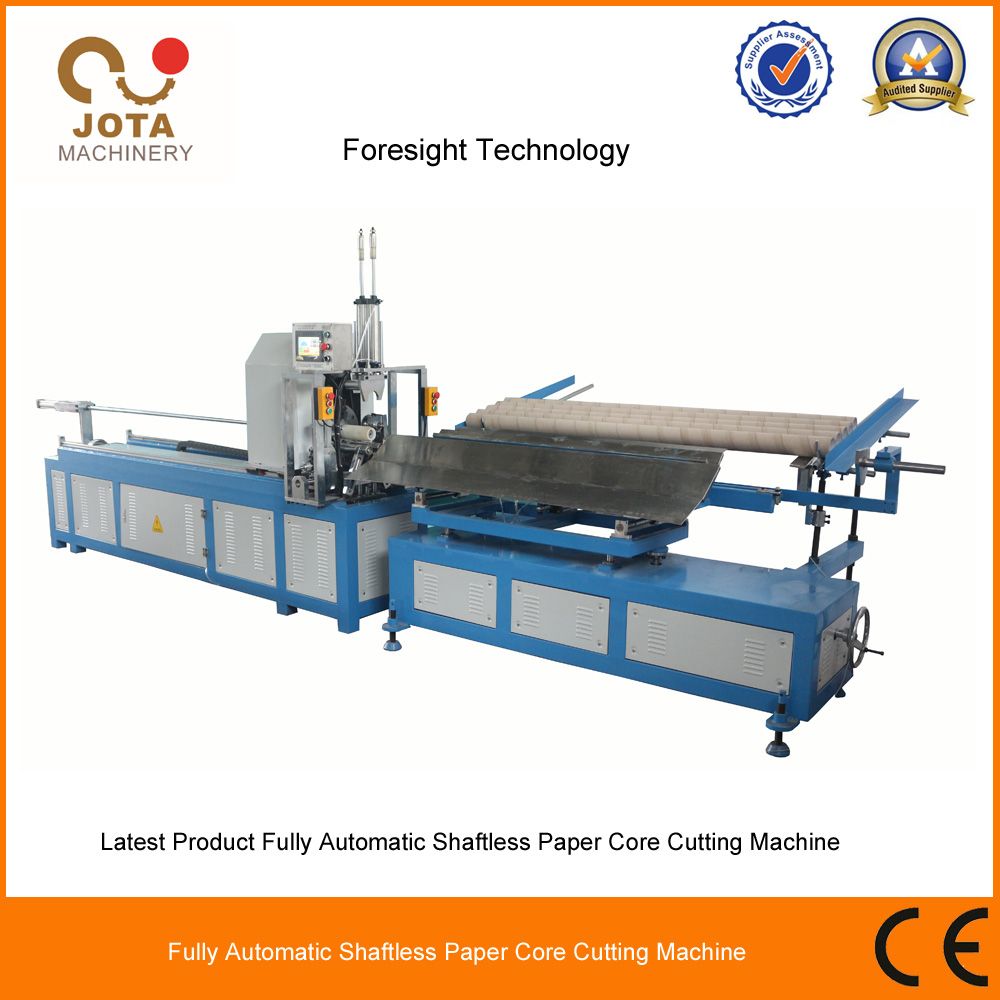

New Design Fully Automatic Paper Core Cutter Paper Core Cutting Machine Paper Tube Cutter

New Design Fully Automatic Paper Core Cutter Paper Core Cutting Machine Paper Tube Cutter
Price: US $ 25000-35000/Box
Min Order: 1/Box
Pay Type: L/C,T/T,Western Union
Prod Model: JT-SL-2000C
Product: Fully Automatic Paper Core Cutting Machine
Jumbo Tube Length: 2000mm
Paper Tube Inner Dia: 50-152mm
Paper Tube Thickness: 4-15mm
Cutting Length: 10-2000mm
Cutting Speed: 60 Cuts/Min
Turret Movement Speed: 1.8 M/Min
Working Pressure: 0.6MPa
Voltage: 380V 3 Phase 50Hz
Power: 3kw
Type: Spiral Type
Gumming Type: Double Side
Layers Of Roll Paper: 9 - 16
Reelpipe Speed: 12 - 18m/minute
Certification: SGS
Condition: New
Tube Machine Type: Paper Core Cutting Machine
Wall Thickness Of Paper Tube: 1mm-15mm

Product Description

New Design Fully Automatic Paper Core Cutter Paper Core Cutting Machine Paper Tube Cutter
Main Parameters:
Jumbo Tube length2000mm
Paper Tube Inner Dia50-152mm
Paper Tube Thickness4-15mm
Cutting Length10-2000mm
Cutting Speed60 cuts/min
Turret movement speed1.8 m/min
Working Pressure0.6Mpa
Voltage380V 3 Phase 50Hz
Power3kw
Cutting ModePaper tube turn; knives and axes do not turn
Operator1 person
Mould2 sets
Uploading/UnloadingHand control
Dimension4000*920*1600mm
Weight900kgs

Specification:

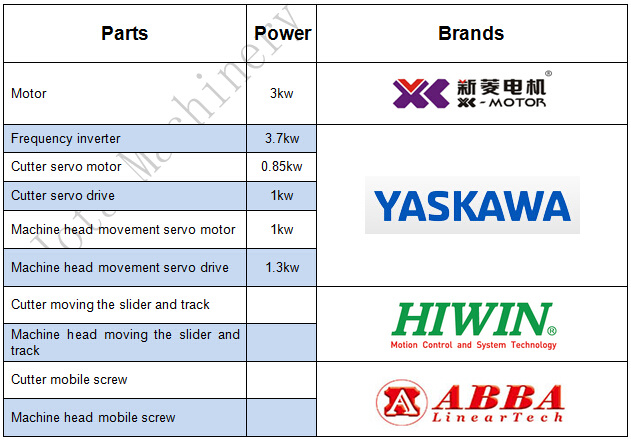

Machine adopts Taida PLC(Taiwan) and Xianda HMI(Shenzhen) control system, all the parameters are displayed on the touch screen, and it runs automatically.
It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control.
It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head.
It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head.
It adopts double round blades to cutter.
It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head.
It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head.

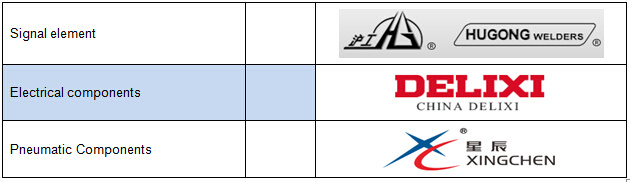

It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components.
Paper tube clamping adopts automatic chucks.

CertificationCE,SGS, Gold Supplier, etc.
MOQ1 set. (More than 3 sets, offer a special discount)
Perfect After-sale SystemTechnicians can service overseas.
Prompt ReplyWithin 24 hours.
Yearly Production CapacityMore than 100 sets.
Packing DetailsWith flexible wrapping and export standard wooden case.
Delivery TimeWithin 30 days after receipts of 30% payment, the rest 70% paid before shipping.
Terms of PaymentT/T, L/C
Delivery ClauseFOB Ningbo/Shanghai Port
Packaging DetailsHigh Speeding Razor Paper Sheeter Machine is with flexible wrapping and wooden case. It is included one year guarantee time, whole life technical support, a box of tools, two pieces blade and exporting standard wooden case.
Packaging & Shipping

Packaging Details: New Design Fully Automatic Paper Core Cutter Paper Core Cutting Machine Paper Tube Cutter is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.

 Delivery Details:  Within 45 days after receipt of 30% payment by T/T. Double-Layer Thermal  Mother Roll Paper Converting Machine.
