| Prod Model: |
TSY-RD2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Customized: |
Customized |
| Condition: |
New |
| Usage: |
Direction Drill in Stone Quarry |
| Quality: |
Good |
| Material: |
Diamond |
| Automation: |
Automatic |
| Layout: |
Vertical |
| Control: |
Artificial |
| Precision: |
High Precision |
| Application: |
Stone Industry |
| Certification: |
CE |
| Type: |
Twist Drill Bit |
Product Description

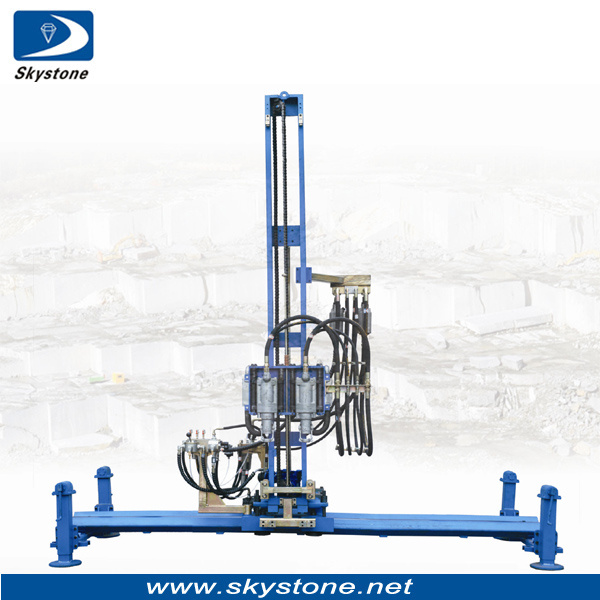

TSY-RD2 High Speed Doule-Hammer Rock Drill
| Technical Prameter |
| Item No. | TSY-RD2 |
| Number of Hammer | 2 |
| Working Length of Rock Drill | 2.3 m |
| Drilling Diameter | 38mm~45mm |
| Drilling Speed | 0.5~0.8m/min |
| Shift Travel | 3m |
| Air Pressure | 0.5~0.6Mpa |
| Air Consumption | ≥10m³/Min |
| Water Pressure | 0.4 Mpa |
| Wtaer Consumption | 0.5m³*2/h |
| Whole Weight | 1300kg |
Function :

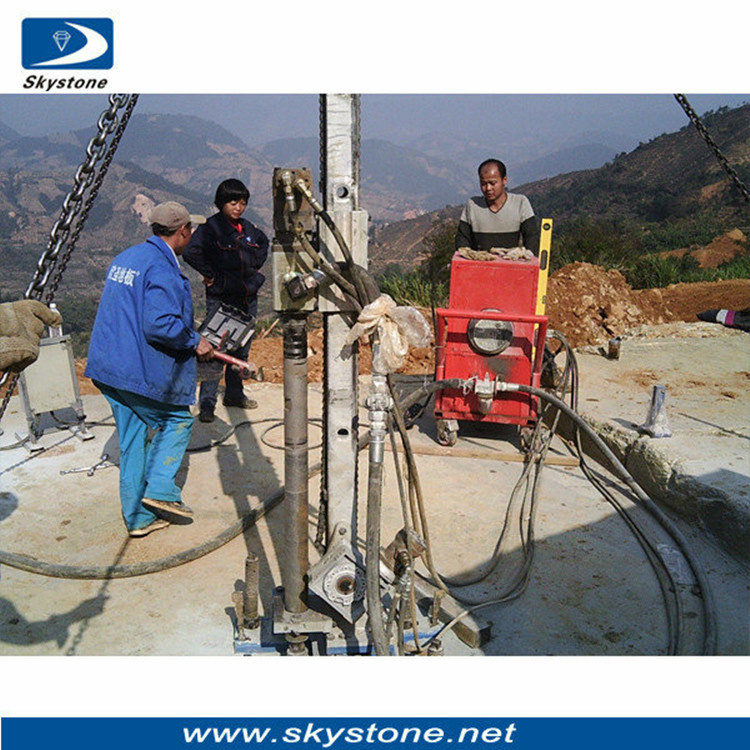

It used for block split ,and vertical,horizontal or slantwise direction drill in stone quarry . The drilling speed is 0.5-0.8m/min.
Features:
1.The machine can make vertical ,horizontal or slantwise drilling;
2.The of machine 4 stilts can be adjusted and fixed separately;
3.The drill is totally pneumatic driven .The rod is cooling by high pressure water , to make sure drilling precision ,and reduce the dust from drilling;
4.The air consumption of drill is small and drilling speed is high .
