High-Speed Gantry Type CNC Fiber-Optic Laser Cutting Machine Laser Cutter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
GS-LFS3015-500W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Type: |
Pipe and Tube Bending Machine |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-Bending Machine: |
CNC Fold-Bend Machine |
| Z Axle Stroke: |
100mm |
| Max. Cutting Speed: |
15m/Min |
| Max. Positioning Speed: |
40m/Min |
| Cooling: |
Water Cooling |
Product Description

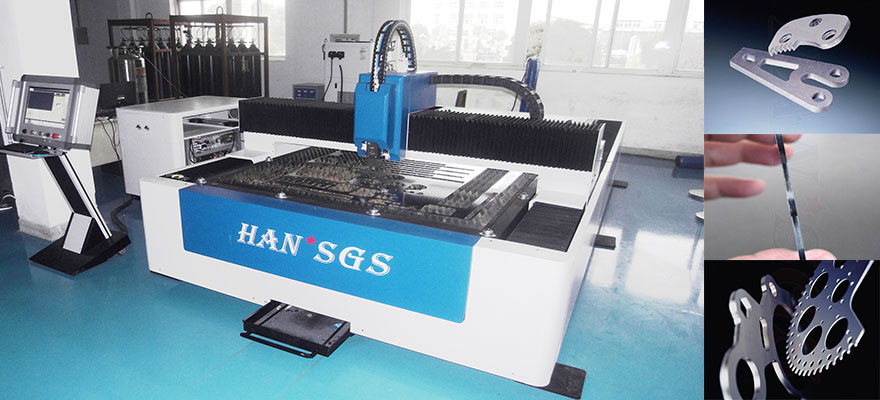

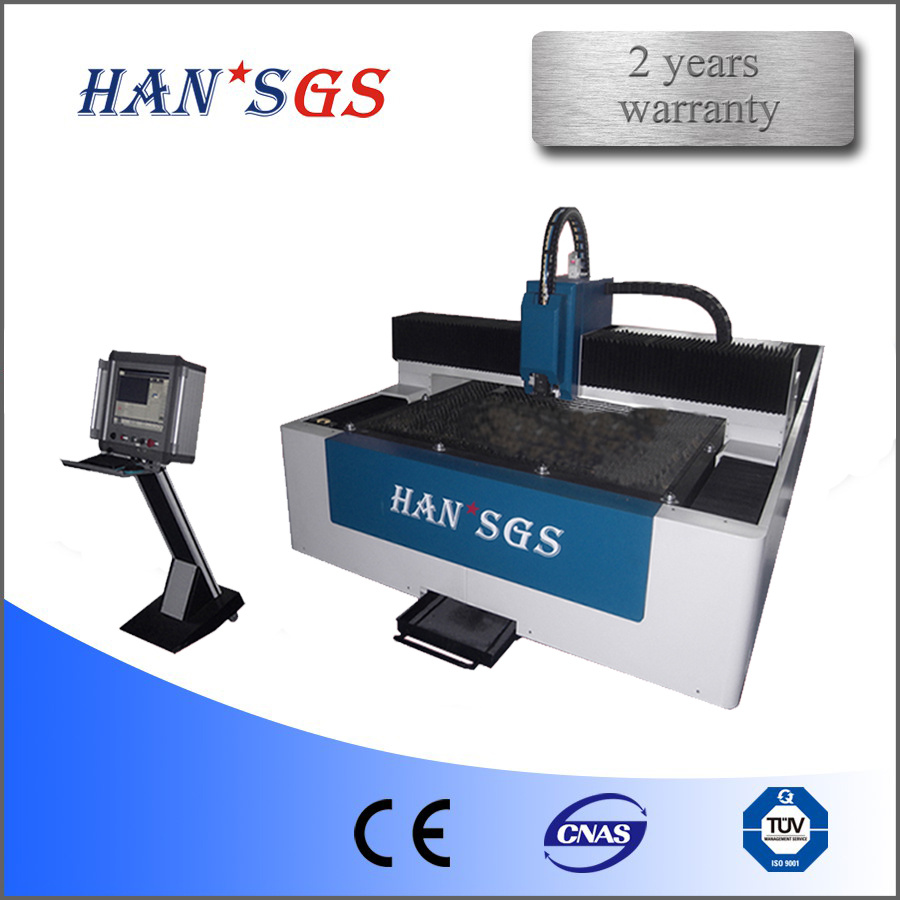

High-Speed Gantry Type CNC Fiber-Optic Laser Cutting Machine Laser Cutter
Description of machine
Laser cutting machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet with high speed and efficiency. GS-LFS3015 is a economic type, with high quality and fast speed.
Functions of GS-LFS3015 laser cutter
1. Equipped with exhaust device, have good exhausting effect and little pollution.
2. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
3. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.
Parameters| Model | GS-LFS3015 |
| Output power of laser source | 500W |
| Cutting area (L*W) | 3000mm × 1500mm |
| Z axle stroke | 100 mm |
| Max. cutting speed | 15m/min |
| Max. positioning speed | 40m/min |
| Cooling | water cooling |
| Laser wavelength | 1070nm |
| Min. cutting gap | ≤0.1mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
| Thickness of cutting material (according to material) | 0.2-6mm |
| Drive model | Imported servo motor |
| Voltage | 380V,50/60Hz |
| Temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 2950Kgs |
| Outer dimension | 4350mm x 2280mm x 1500mm |
| Total protection level of power supply | IP54 |
Laser cutting advantages over other thermal cutting methods
1. The cutting quality is good:
Because of the small laser spot, high energy density, fast cutting speed, laser cutting can therefore get better cutting quality.
(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.
(2) Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
(3) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.
2. Highly automation:
Adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.
3. High cutting efficiency:
Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting.
4. Fast cutting speed:
The cutting speed can be up to 600 cm/min when using 1200W laser to cut 2mm low carbon steel plate, and can up to 120 m/min when cutting 5mm polypropylene resin plate. Material does not need clamping fixed for cutting, thus can save the jig and auxiliary time for material upload and download.
5. Non-contact cutting:
There is no contact for work piece and laser head, so there is no tool wear. No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.
6. Variety cutting material:
Compared with oxyacetylene cutting and plasma cutting, laser can cut many kinds of materials, including metal, nonmetal, metal and nonmetal based composite material, leather, wood, fiber, etc. But for different material, it shows different laser cutting adaptability due to its thermal physical properties and different laser absorption rate.
Application Industry
It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
Installation Requirements | No. | Item | Name | Requirement | Remark |
| 1 | Power | Stability of three phase
voltage | 380V±5% | |
Imbalance of three phase
power | <2.5% | |
| Ground | <4Ω | |
| 2 | Cooling
Water | Specialized cooling water | Deionized water | |
| 3 | Gas | Cutting Gas | N2>99.5% | The parameter
is different according
to different material |
| O2>99.5% |
Air pressure not less than
0.8MPA |
| 4 | Work
Environment | Temperature | 0-40°C | |
| Moisture | <70% | |
| Ground Base | There should be no epicenter
nearby, the ground bearing
strength should be no less
than 2000kg/m2, ground
evenness < 5mm. Concrete
layer should be no less than
350mm, concrete mark no
less than 425 # | Shockproof slot
is needed if
there's epicenter
|
| 5 | Metal Board | Carbon board, stainless steel board of good quality and
without rust |
|
Cutting Sample
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
