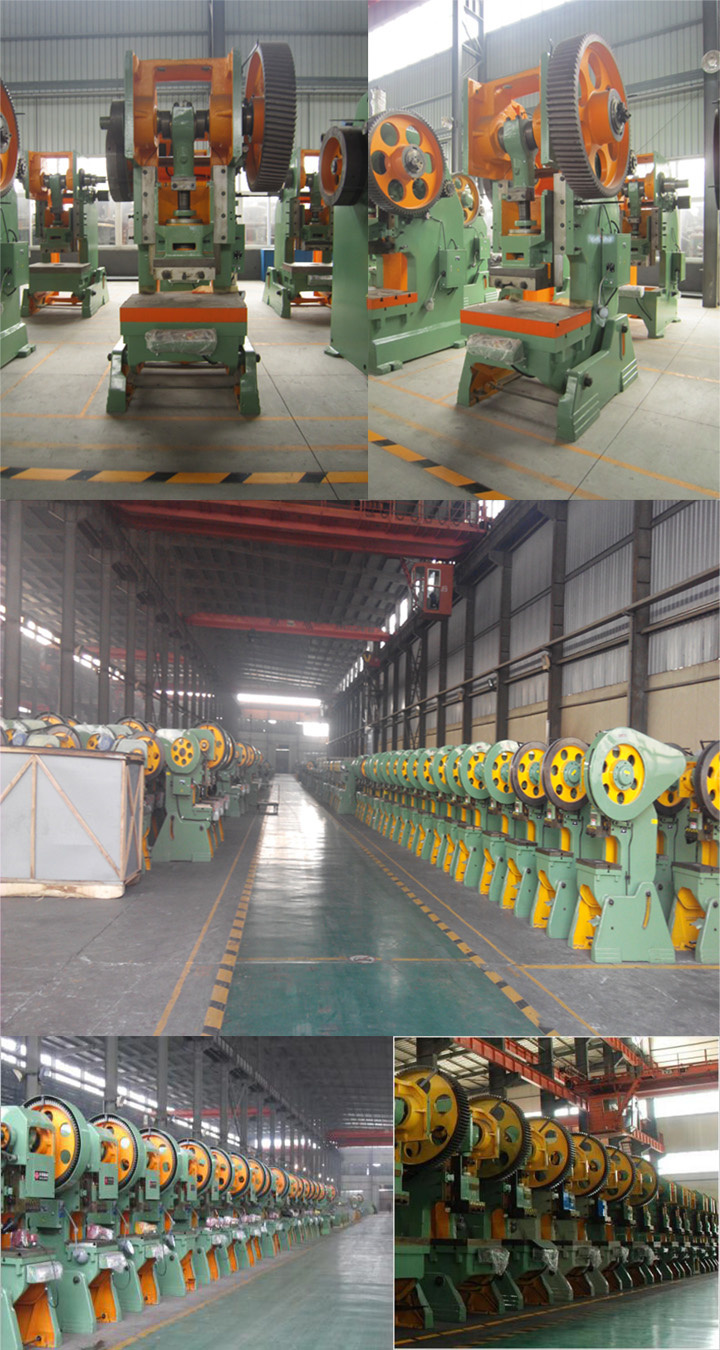

High Speed Power Press 80ton Punch Press Machine
| Price: |
US $ 3000/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
J23-80t |
| Model No: |
J23 Series |
| Forging Forming Method: |
Tire Mold Forging |
| Warranty: |
1 Year |
Product Description
Details:1.Adopt rotating key positive clutch, which is easy to operate and convenient to maintain.
2.J23-25T adopts rolling bearing instead of sliding bearing(copper bearing) and this make the transmission gear more wear-resistant and avoid loud noise of gears caused by copper bearing abrasion.
3.J23-35 open type inclinable press machine is unique in the industry. Other 35T press machine produced by other manufactures in the country all adopt a machine body of the 25T machine and copper bearing for the transmission gear. We are the only manufacturer that redesigns the body. The 35T machine body is far more heavier than the 25T machine body and the strength is also better with the rolling bearing transmission (low gear noise), which is almost eaqual to the light 40T press machine.
4.J23-80T and above press machines adopt pneumatic double balance cylinder, which decreased the balance force fluctuate, and balanced the weight of slider and die, prevent the unstable situation. Besides, it also avoid the clash and noise caused by the gear reverse force during transmission; eliminate the clearance between connecting rod and slide; reduce the compact force and abrasion of stress components; and avoid the accident caused by falling slider when brake or connecting rod broke.
FEATURES:1.Steel welded body, tempering treatment or VSR(Vibratory Stress Relief), high rigidity, accuracy and stability;
2.Pneumatic dual balance cylinders, which balance the slide and punch weight to reduce noise and impact;
3.The crankshaft undergoes gringding treatment after high frequency quenching;
4.Lengthened six-face rectangle guide with a surface of bronze plate;
5.Vertical located crankshaft, compact structure;
6.PLC control and imported safety duplex valve;

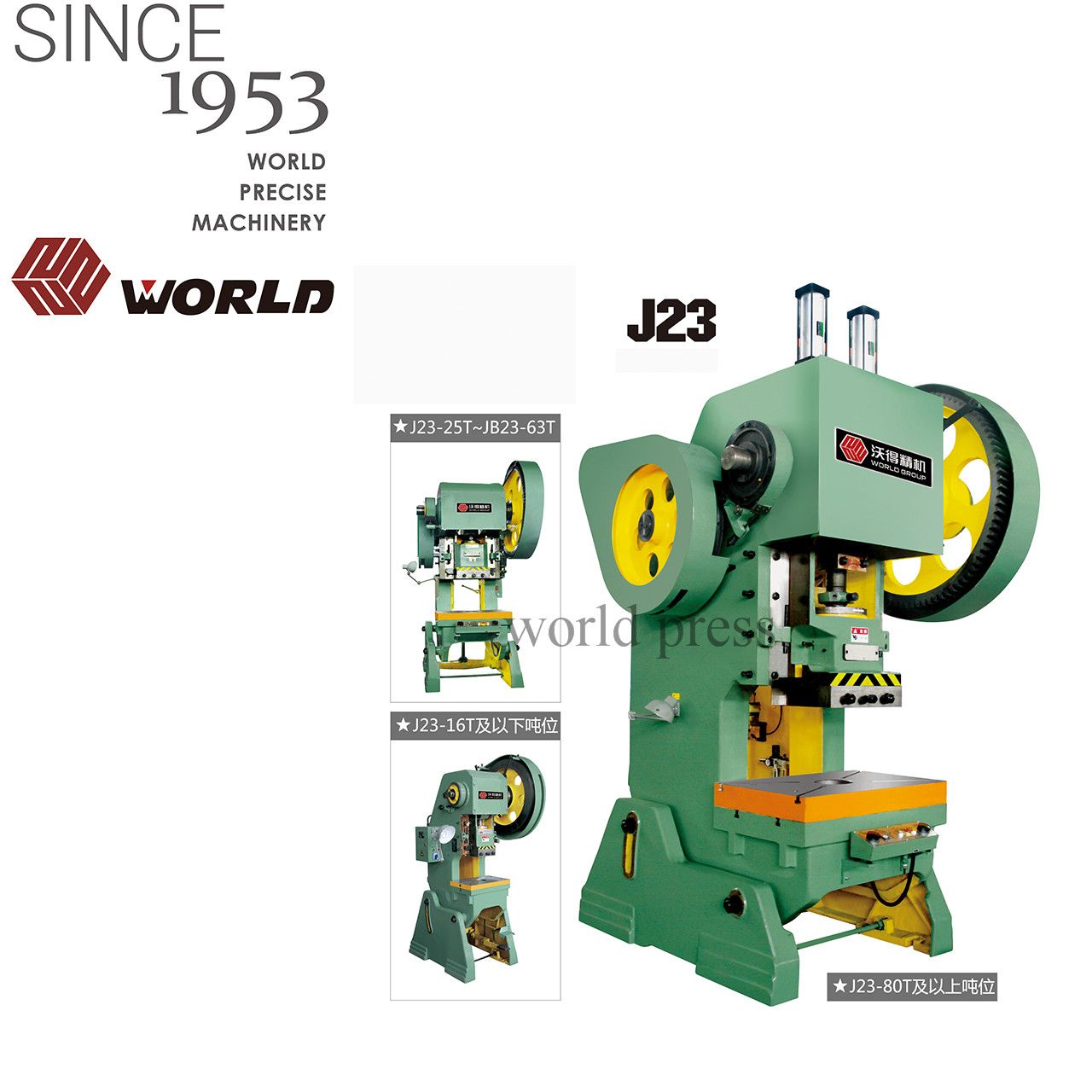

7.Wet type combined multi discs friction clutch and brake;Hydraulic overload protecting pump.| Specifications of J23 Series C-frame Inclinable Press |
| Parameter | Unit | J23-
6.3 | J23-
10 | J23-
16 | J23-
25 | J23-
35 | J23-
40 | J23-
63 | JB23-
63 | J23-
80 | J23-
100 | J23-
125 |
| Nominal Capacity | KN | 63 | 100 | 160 | 250 | 350 | 400 | 630 | 630 | 800 | 1000 | 1250 |
| Nominal Stroke | mm | 2 | 2 | 2 | 2.5 | 3.5 | 6 | 6 | 7 | 7 | 7 | 8 |
| Slide Stroke | mm | 35 | 45 | 55 | 65 | 80 | 90 | 110 | 110 | 120 | 140 | 150 |
| Slide Stroke Per Minute | T/M | 170 | 145 | 125 | 55 | 50 | 45 | 50 | 40 | 38 | 38 | 38 |
| Maximum Die Set Height | mm | 150 | 180 | 220 | 270 | 290 | 320 | 360 | 390 | 440 | 480 | 500 |
| Die Height Adjustment | mm | 30 | 35 | 45 | 55 | 60 | 65 | 80 | 80 | 90 | 100 | 100 |
| Throat Depth | mm | 110 | 130 | 160 | 200 | 220 | 250 | 260 | 310 | 350 | 380 | 390 |
| Distance Between Uprights | mm | 150 | 180 | 220 | 270 | 280 | 340 | 350 | 420 | 450 | 560 | 550 |
| Slide Bottom Size | L x R | mm | 140 | 170 | 200 | 250 | 250 | 300 | 300 | 400 | 430 | 540 | 540 |
| F x B | mm | 120 | 150 | 180 | 220 | 220 | 260 | 260 | 360 | 360 | 480 | 480 |
| Stem hole Size | Dia | mm | 30 | 30 | 40 | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 |
| Depth | mm | 55 | 55 | 60 | 60 | 60 | 70 | 70 | 70 | 75 | 75 | 75 |
| Bolster Size | L x R | mm | 310 | 370 | 450 | 560 | 610 | 700 | 760 | 860 | 950 | 1080 | 1100 |
| F x B | mm | 200 | 240 | 300 | 370 | 400 | 460 | 480 | 570 | 650 | 710 | 720 |
| Diameter of Blanking Hole | mm | 60 | 80 | 100 | 120 | 130 | 150 | 180 | 180 | 200 | 220 | 240 |
| Bolster Thickness | mm | 30 | 35 | 40 | 50 | 60 | 65 | 80 | 80 | 100 | 120 | 130 |
| Max. Angle of Inclination | ° | 45 | 35 | 35 | 30 | 30 | 30 | 20 | 20 | 20 | 15 | 13 |
| Bolster Surface Height | mm | 750 | 730 | 750 | 800 | 815 | 850 | 810 | 850 | 850 | 850 | 860 |
| Overall Size | F x B | mm | 780 | 900 | 1150 | 1345 | 1460 | 1721 | 1810 | 1958 | 2060 | 2404 | 2504 |
| L x R | mm | 620 | 665 | 847 | 950 | 1058 | 1335 | 1350 | 1500 | 1715 | 1790 | 1790 |
| H | mm | 1503 | 1658 | 1910 | 2130 | 2225 | 2488 | 2740 | 2868 | 3290 | 3625 | 3715 |
| Distance between foundation bolts | F x B | mm | 530 | 610 | 780 | 920 | 1020 | 1060 | 1180 | 1300 | 1360 | 1550 | 1710 |
| L x R | mm | 314 | 394 | 450 | 600 | 650 | 750 | 850 | 920 | 1010 | 1130 | 1110 |
| Motor Power | Kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Weight | Kg | 400 | 576 | 1085 | 1780 | 2650 | 3540 | 4550 | 5500 | 7390 | 10800 | 12035 |

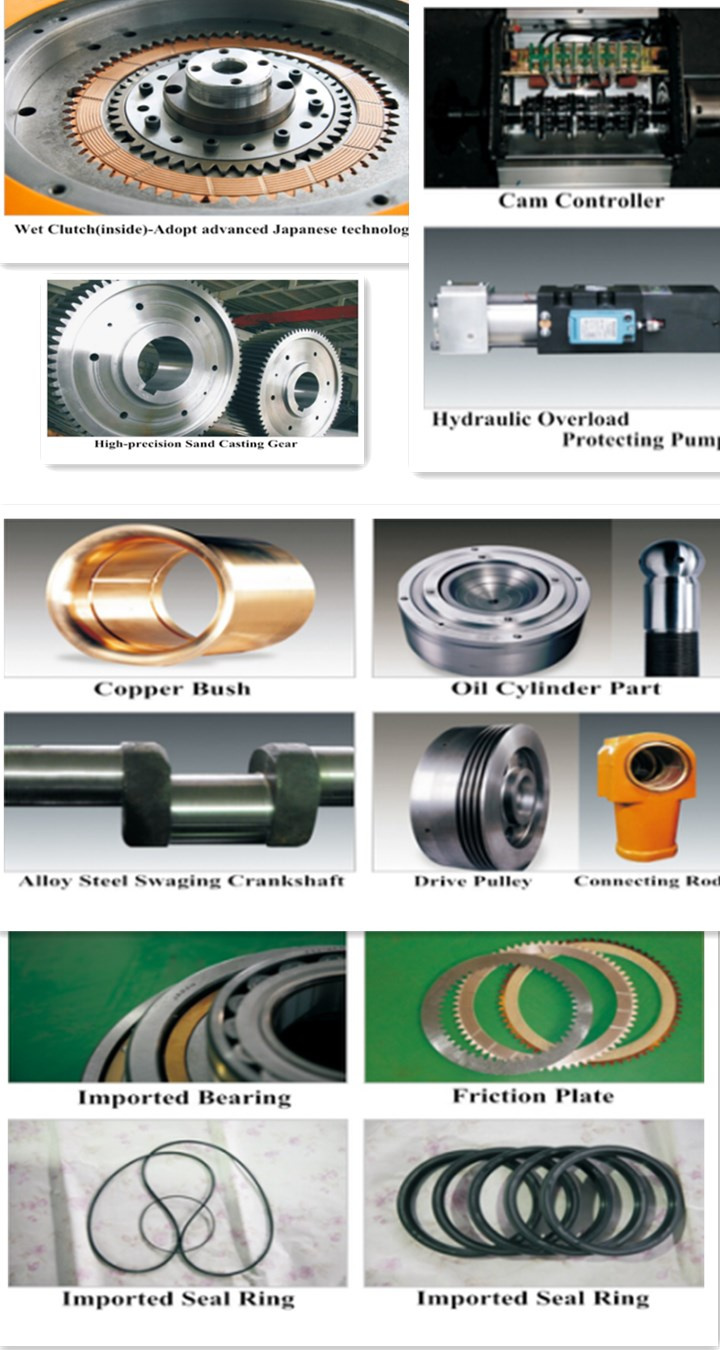

| Standard Equipments: | Optional Equipments: |
| 1) High Performance Wet clutch (Adopt advanced Japanese technology) | 1) Light curtain |
| 2) PLC | 2) Foot pedal |
| 3) Hydraulic overload protecting pump | 3) Die cushion |
| 4) Touch screen | 4) Inverter |
| 5) Cam controller | 5) Variable speed motor |
| 6) Die height adjusted motor (JH21-60 and upon models) | 6) Auto feed shaft |
| 7) Auto lubrication system | 7) Die quick change device |
| 8) Manual lubrication system | |
| 9) Double hand control panel | |
| 10) Electronic crankshaft angle indicator | |
| 11) Predetermined counter | |
| 12) Balance cylinders for slide and upper die | |
| 13) Work light | |
| 14) Joint for air | |
| 15) Joint for miss-feeding | |
| 16) Absorbing pads | |
Boutique Accessories:

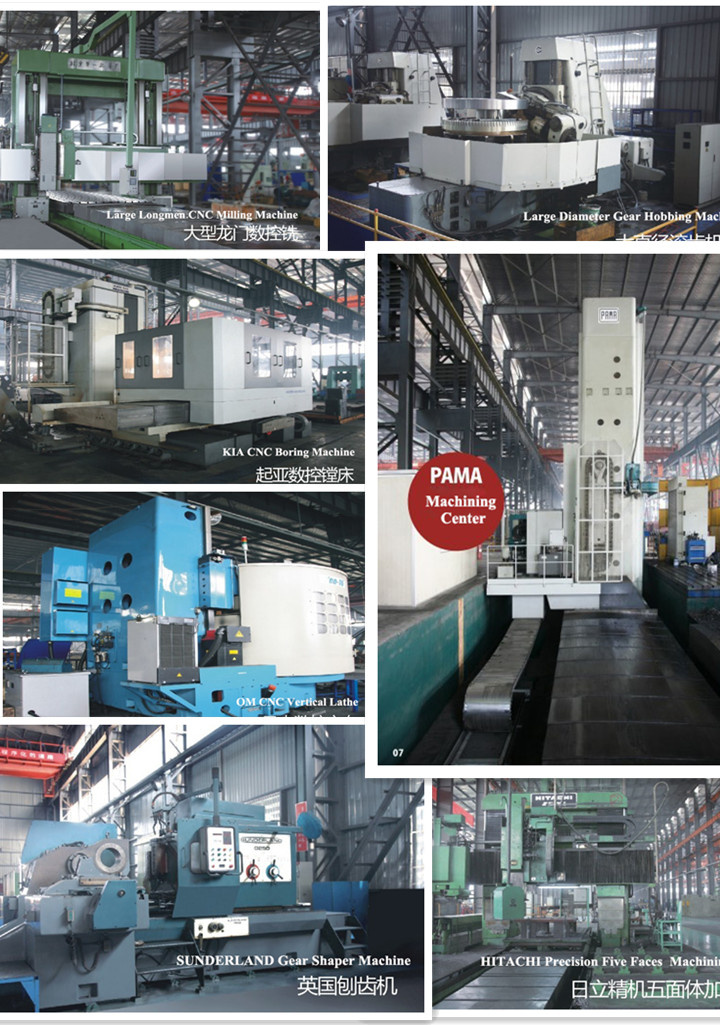

Our Equipment :
Advanced Technological Power :World (Shanghai) R&D center cooperate with the professional companies in USA, Germany, France, Japan, Sweden and the colleges and universities in china so as to develop and perfect the products with superb technique promptly.
Additionally, authority organization in the field supervises the quality from the parts to the whole machine. professional team with craft design and assembly ensures the accuracy of parts.
We establish R&D center in Shanghai to welcome more excellent talents and develop new craft.
Jinan forging and welding bureau, Shanghai press machine supervision station monitor the quality of parts; the team of professional craft design and manufacture ensure the accuracy of parts based on the excellent craft.
After Service:In this world, people cooperate with WORLD customers every day. The quality of WORLD products is facing test and they are endowed with great mission.
World thinks quality service is not only simple maintenance. Our service engineers not only find problem for taking action in advance but also advise how to use the machine more properly and carefully.
Worldwide service network and convenient service show the strong responsibility and sense of historical mission.
To all of our customers:Our best greeting is given to the esteemed customers of World Precise Machinery (Jiangsu) Co. Ltd.

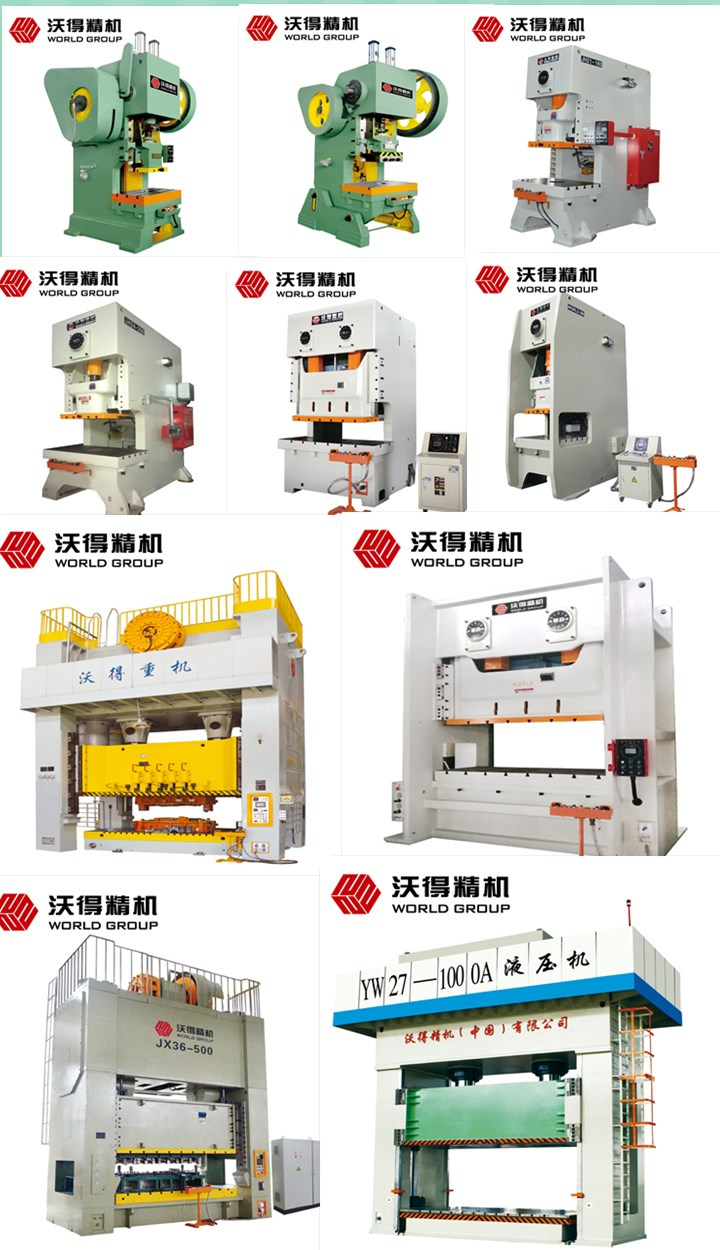

We appreciate that you purchase our presses of varieties of types. we produce about 30 series of presses including300 types of big, intermediate and small presses, such as ordinary numerically controlled guillotine shear, ordinary numerically controlled bending machine, full numerically controlled bending machine, numerically controlled turret punching-machine and varieties of types of oil hydraulic presses.
Guaranty:
If you purchase our product, we promise that the length of warranty for mechanical part is one year and the length of warranty for electrical part is one year and the length of warranty for electrical part is half one year.Marketing Service Center Headquarters of World Precise Machinery (Jiangsu) Co. Ltd.Web :http://worldpress.en.made-in-china.com
Mail : [email protected]
Tel:+8618851629868
World precise machinery group (hereinafter refers to world precise machinery) establishes in 1953 which is located in Shanghai economic zoom., world precise machinery is the beginning of the first five years planning of China, is one of the oldest and most professional manufacture of punching equipments. After listing in Singapore market, world's products are paid great attention with high quality and superb technique.
World precise machinery group optimized and merged in 2016, including subsidiaries as world precise machinery and world Shenyang. In the headquarter of the group, there are press technical R&D center, numerical control technical center, heavy tools technical center. Additionally, there is a conventional R&D center in Shanghai which can cooperate with the professional companies in USA, Germany, France, Japan, Sweden and the colleges and universities in China so that develop and perfect the products with superb technology. World's products contain all the products of Shanghai press machine factory, Shanghai second press machine factory and Shanghai press and shearing machine factory. It includes 30 series 300 types of products such as all types of presses, shearing machines, bending machines and punching machines. They are widely applied in the fields of space, automobile manufacture, communications and computers. WORLD Precise Machinery has established sales network and service organizations in large and medium-sized cities across the country, and the products are even exported to Southeast Asia, Europe, South America and South Africa. It is the forging equipment manufacturer with the largest scale, most kinds, and widest sales service network in the industry.
